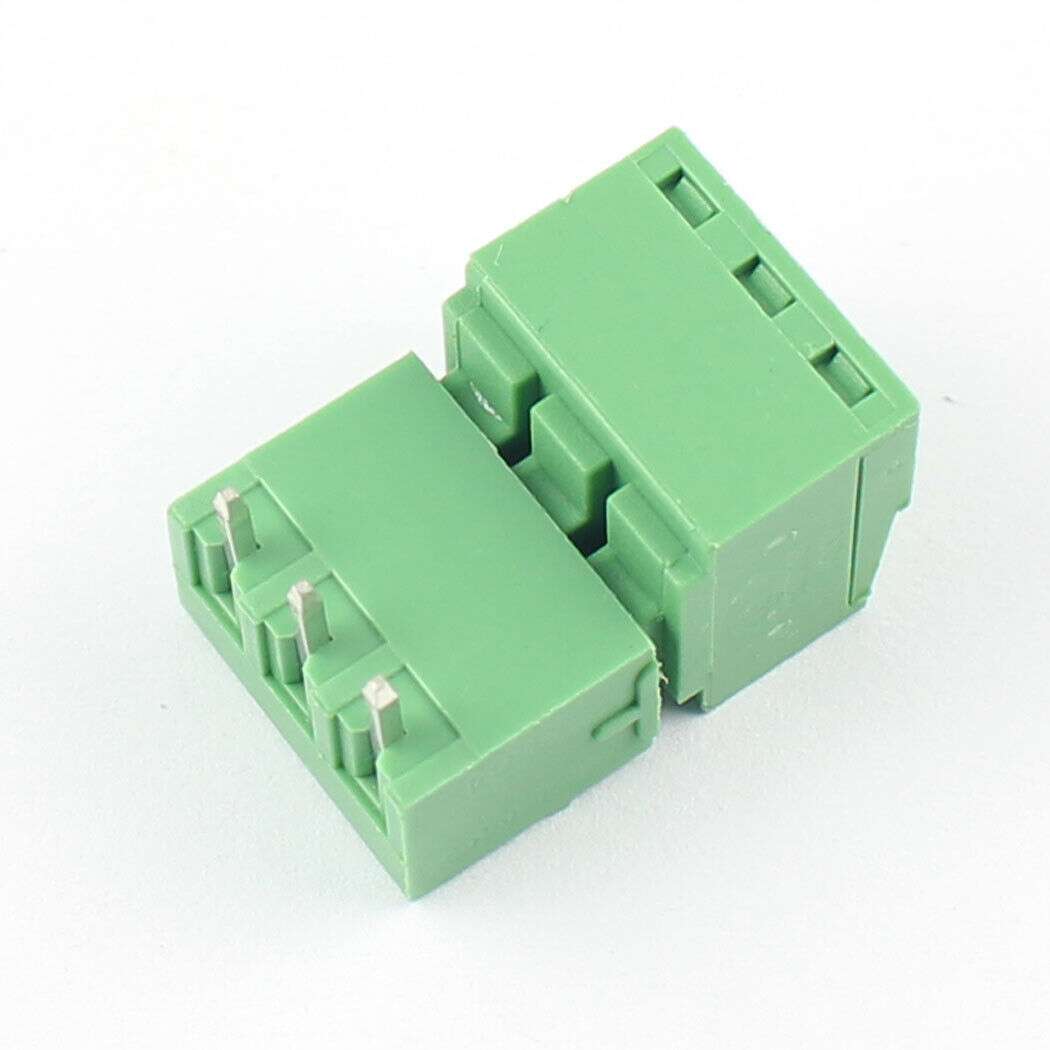

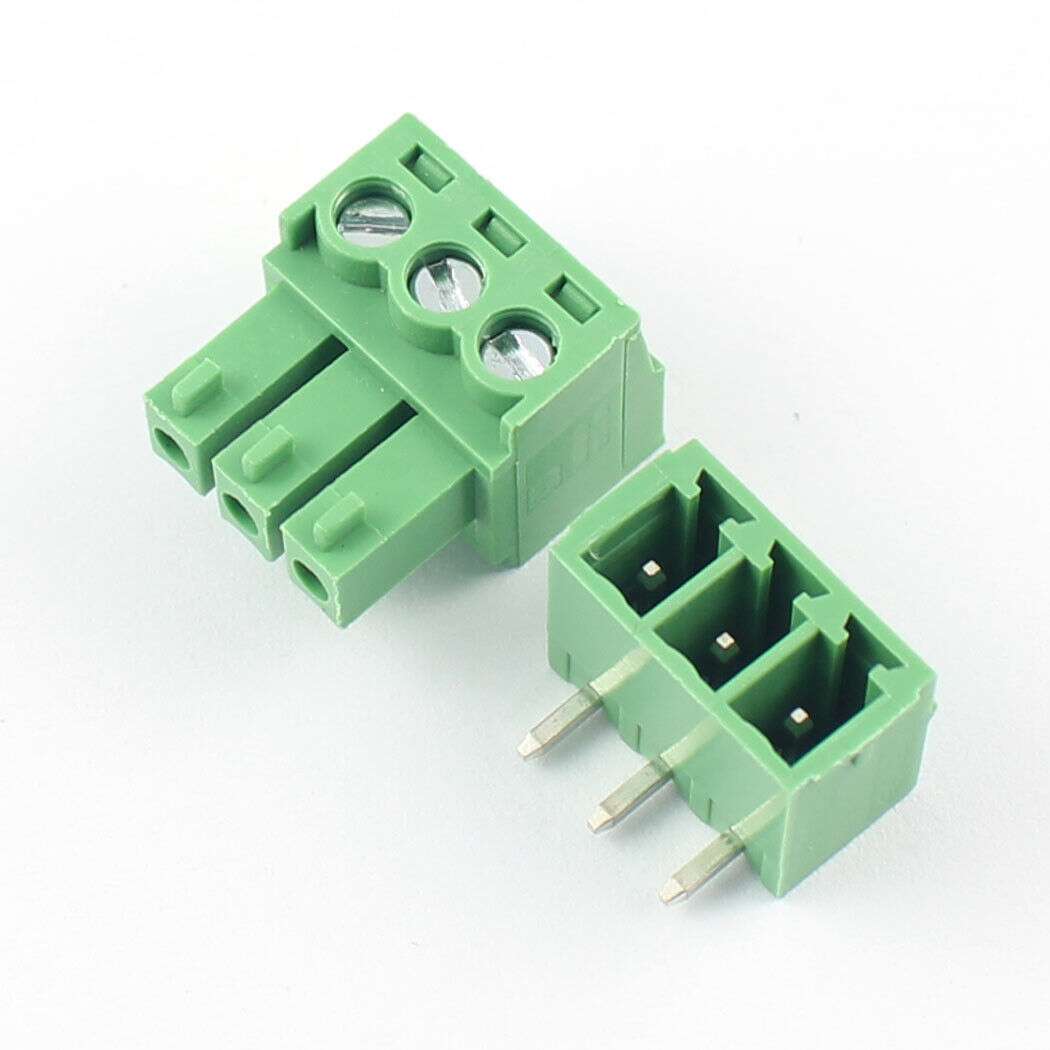

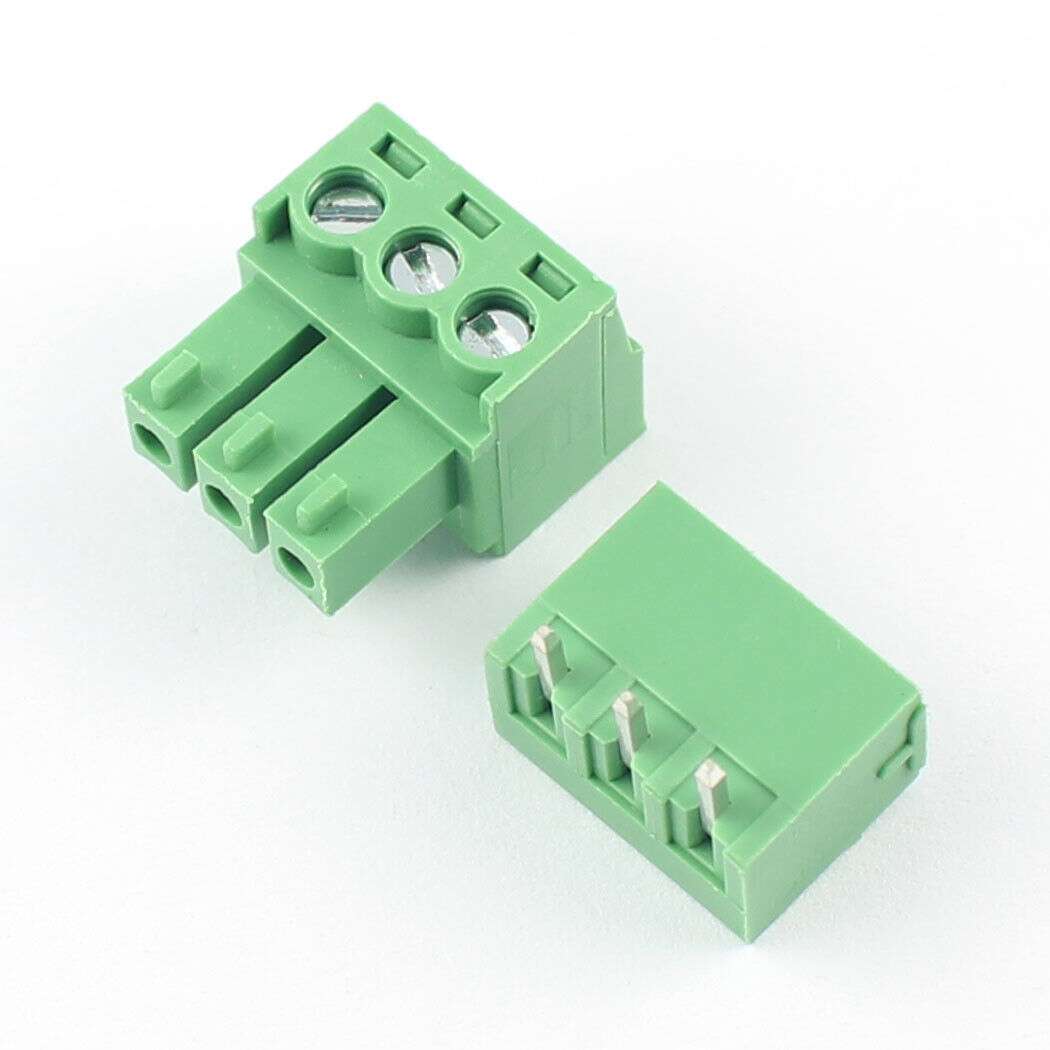

Terminal Block KF2EDGR-3.81-3P PCB Solder Right Angle 3.81mm 3 Pin ترمله فك و تركيب

3.81 mm pitch pluggable terminal block (3-pin). Right-angle pins for PCB mounting. Removable plug/socket connection enabling modular wiring. Through-hole construction for robust PCB attachment. Rated for up to 8 A / 300 V (closed version) and wide operating temperature (-40 °C to +105 °C). RoHS-compliant. Board side / socket style simplifies maintenance and wiring. Specifications Parameter Value Number of Positions: 3 Pitch: 3.81 mm Mounting Style: Through Hole, Right Angle Pin Current Rating (max): 8 A Voltage Rating (max): 300 V Operating Temperature Range: –40 °C to +105 °C Row Configuration: 1 row (single level) Color: Green (Standard) Product Style: Board side / Socket – Closed type
