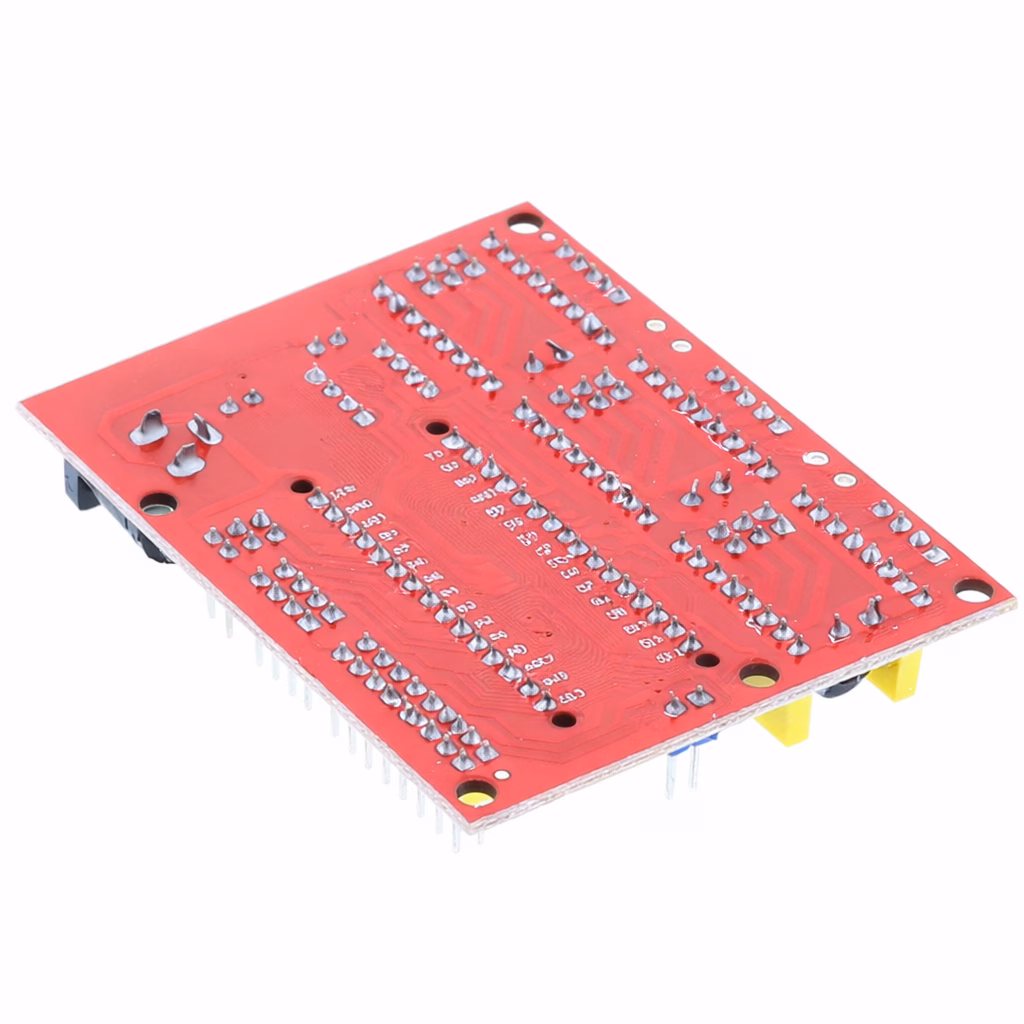

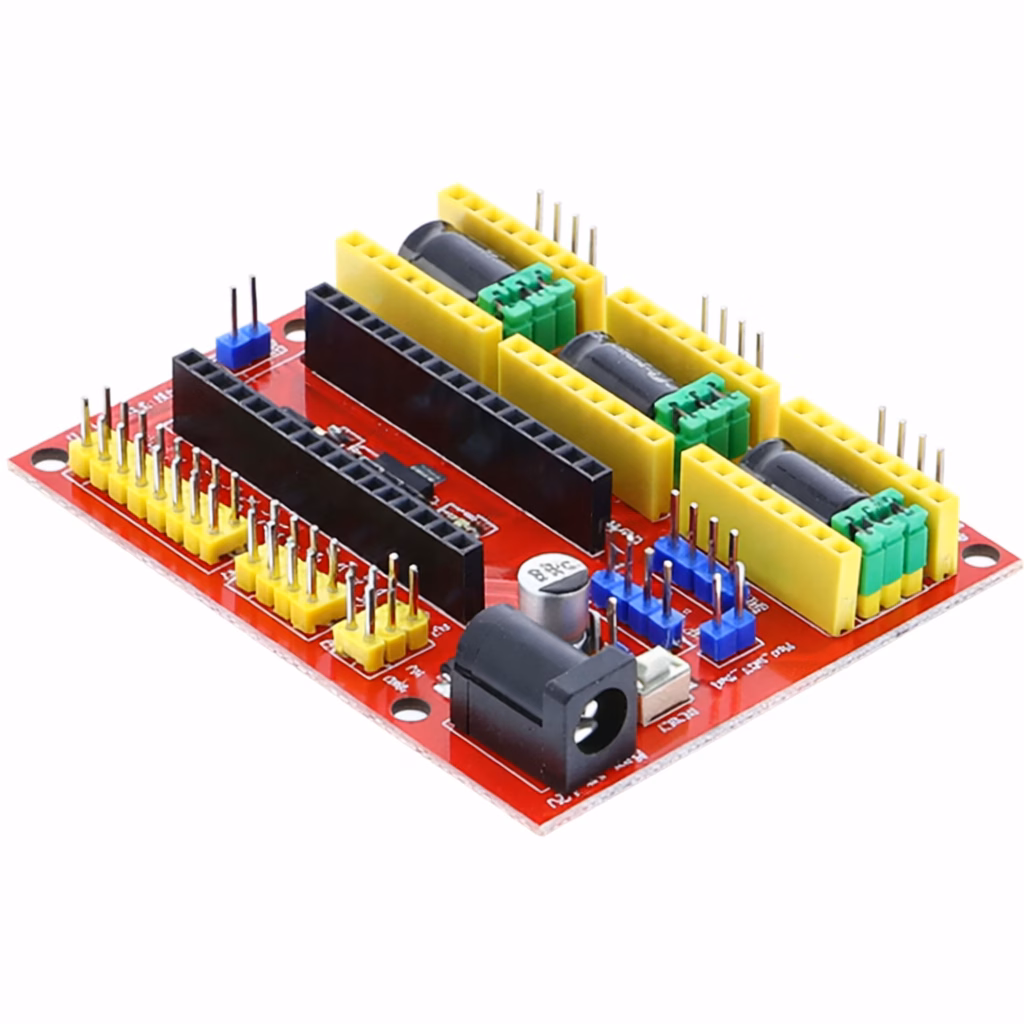

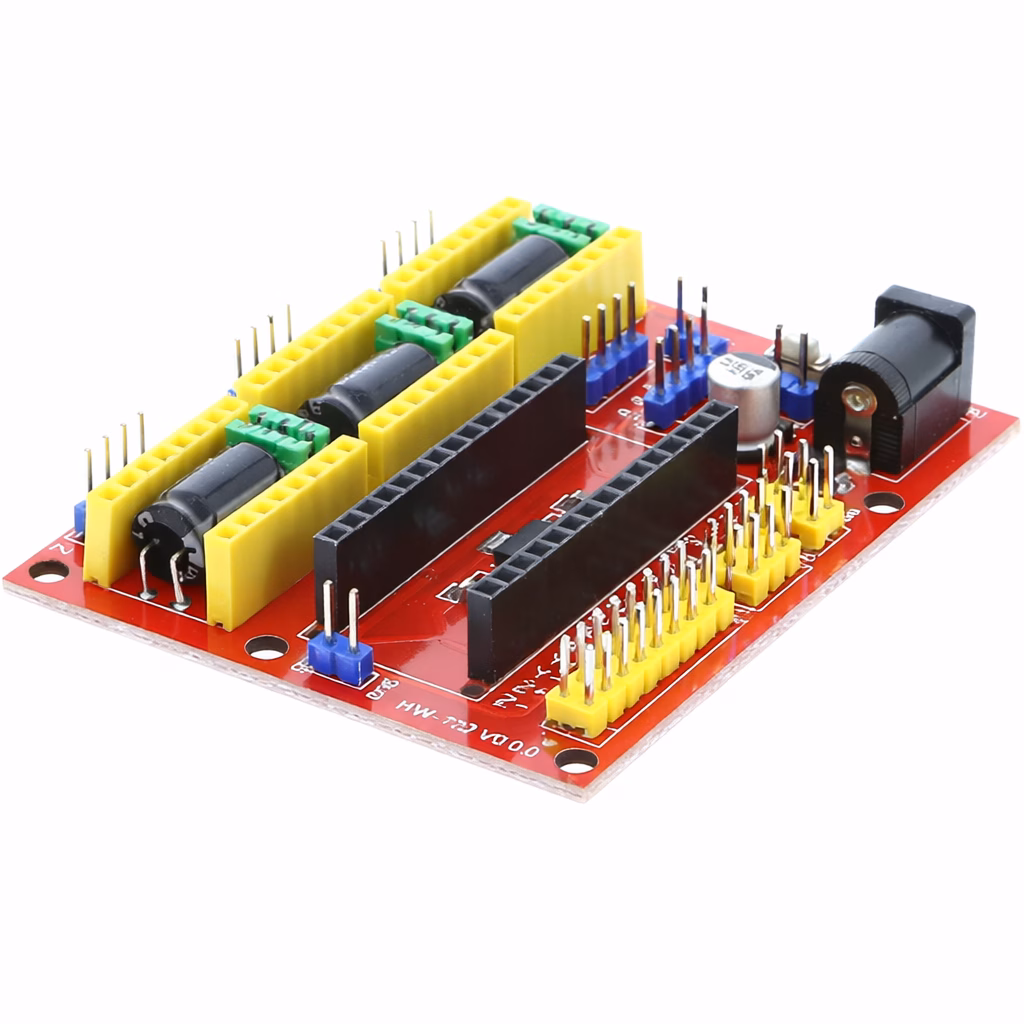

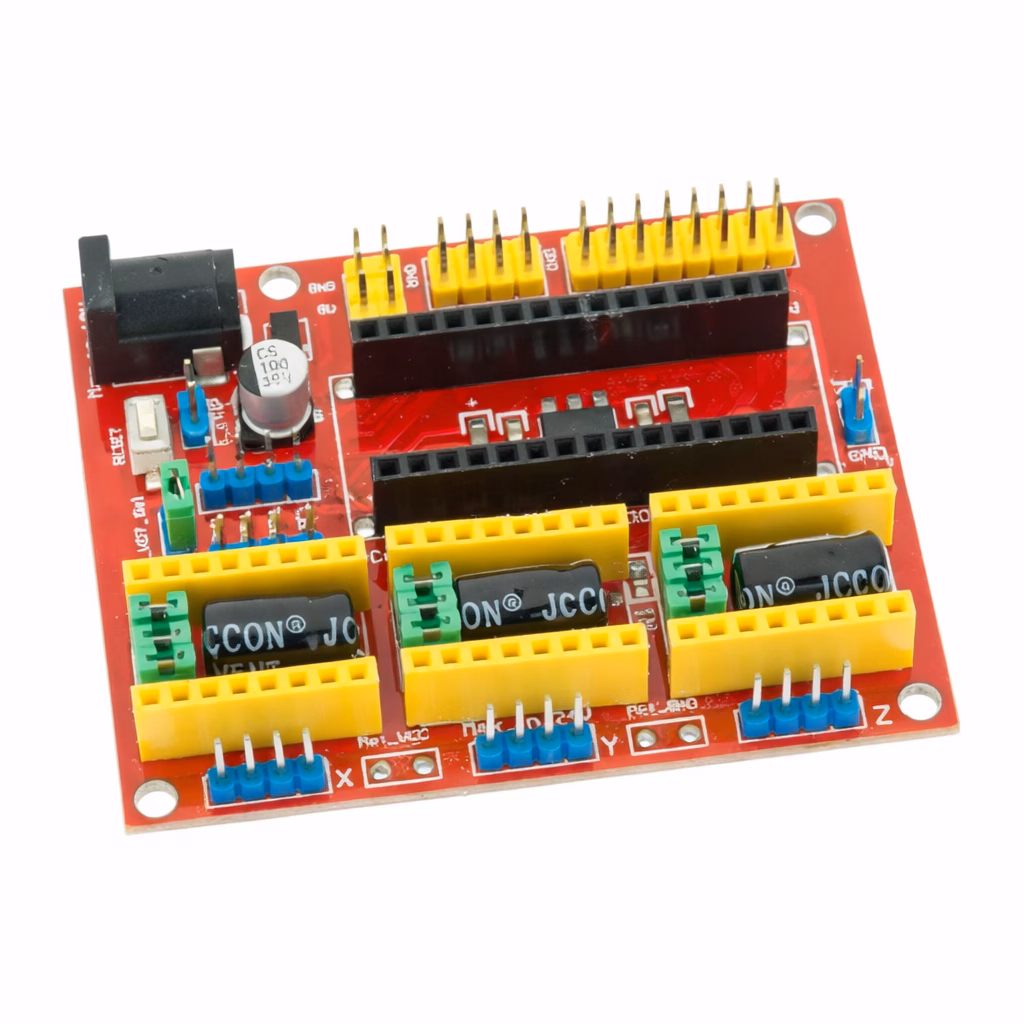

Arduino NANO CNC Shield V4

The Arduino Nano CNC Shield V4 is an indispensable, high-efficiency expansion board specifically engineered to transform the compact Arduino Nano into a powerful, miniature CNC control system. It’s the ideal platform for hobbyists, educators, and engineers looking to build or upgrade small-scale automation projects such as micro-drive laser engravers, 3-axis CNC engraving machines, and even compact 3D printers. This shield offers a superb balance of small footprint and robust functionality, making complex motion control accessible and straightforward. It simplifies wiring and configuration, allowing you to focus on the precision and design of your build.

This versatile shield supports up to three stepper motor axes (X, Y, Z), offering a streamlined solution for controlling all the essential movements of a typical desktop CNC or plotter. Remarkably, it manages all three axes using only six of the Arduino Nano’s I/O pins, significantly conserving available pins for other crucial functions. Designed for compatibility with the widely accepted open-source GRBL firmware, the Arduino Nano CNC Shield V4 provides a proven, reliable control architecture right out of the box, ensuring seamless integration and quick project deployment.

Key Features and Specifications

This expansion board is designed for maximum convenience and compatibility:

• 3-Axis Stepper Motor Control:
  • Features three dedicated slots for plug-in stepper motor driver modules (A4988, DRV8825, etc. – sold separately).
  • Controls 3 stepper motors (X, Y, Z axes), requiring only 2 IO ports per motor for direction and step control, making efficient use of the Nano’s digital pins.
• Driver Compatibility & Microstepping:
  • Supports popular drivers like the A4988 and DRV8825.
  • Includes on-board jumper headers (MS0, MS1, MS2) for easily configuring the microstepping resolution (e.g., up to 1/16 step with A4988) to achieve enhanced engraving precision and smoother motor operation.
• GRBL Compatibility:
  • Fully compatible with the open-source GRBL control software, allowing for easy management and control using standard G-code commands via a host PC.
• Expanded Connectivity:
  • Limit Switch Inputs (ENDSTOP): Released digital I/O interfaces make it easy to connect limit switches on each axis, crucial for homing and end-stop detection.
  • I2C Interface: Includes an I2C communication interface, perfect for connecting external modules like I2C LCD screens for project status display without consuming additional digital pins.
• Power Input:
  • Accepts an external DC power input between 7.5V and 12V (via a DC 5V interface jack or terminals) to supply sufficient power to the stepper motors, ensuring stable and strong movement.
  • Operates with the standard 5V logic voltage provided by the Arduino Nano.
