74175 LOGIC GATE
30,25 EGP
دائرة SN74175 فيها 4 فليب فلوب D بيشاركوا كلوك مشترك ومسح غير متزامن مشترك، كل واحد بمخرج مباشر (Q) ومعكوس (Q̄). | The SN74175 contains four D-type flip-flops sharing a common clock and a common asynchronous clear, each with both true (Q) and complementary (Q̄) outputs.

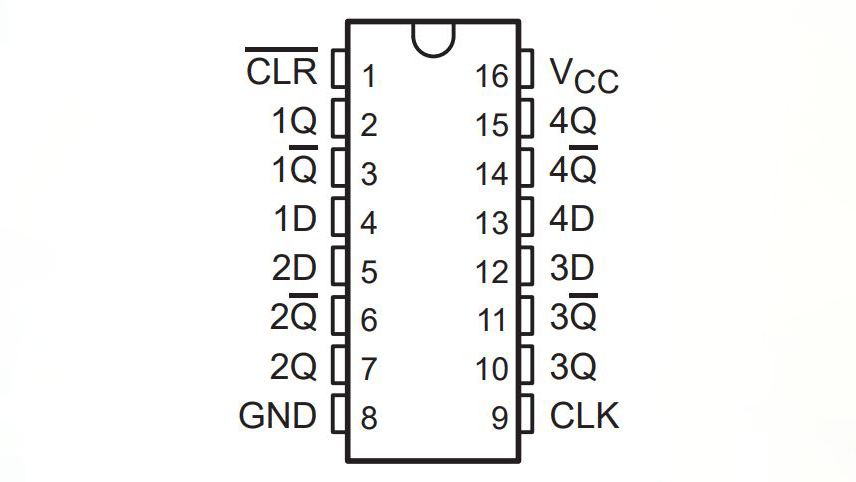

SN74175 Quad D-Type Flip-Flop
The SN74175 contains four D-type flip-flops sharing a common clock and a common asynchronous clear, each with both true (Q) and complementary (Q̄) outputs.
74175 – How It Works
Because all four flip-flops share one clock line, a single clock pulse captures all 4 input bits simultaneously — useful for latching an entire 4-bit data word in one synchronized step, such as the output of a counter or bus.
Having both Q and Q̄ outputs on every flip-flop means it can directly supply an inverted copy of stored data without needing a separate inverter chip.
Key Features
- 4 D-type flip-flops, common clock
- Common asynchronous clear
- True and complementary outputs per flip-flop
Typical Applications
- Synchronized 4-bit data register storage
- Building shift registers and counters
- General sequential logic design
Datasheet Specifications
- Supply Voltage: 4.75V – 5.25V
- Logic Family: TTL
- Package: 16-pin DIP
For more background, see D-type flip-flop operation: reference. Browse our full range of ICs and microcontrollers.
SN74175 Quad D-Type Flip-Flop
دائرة SN74175 فيها 4 فليب فلوب D بيشاركوا كلوك مشترك ومسح غير متزامن مشترك، كل واحد بمخرج مباشر (Q) ومعكوس (Q̄).
74175 – إزاي شغالة
بما إن الأربع فليب فلوب بيشاركوا خط كلوك واحد، نبضة كلوك واحدة بتلتقط الأربع بتات دخل مرة واحدة — مفيدة لتخزين كلمة بيانات 4 بت كاملة في خطوة متزامنة واحدة، زي خرج عداد أو باص.
وجود مخرجي Q وQ̄ على كل فليب فلوب معناه إنها تقدر توفر نسخة معكوسة من البيانات المخزنة مباشرة من غير الحاجة لشريحة عاكس منفصلة.
المواصفات الأساسية
- 4 فليب فلوب D، كلوك مشترك
- مسح غير متزامن مشترك
- مخرج مباشر ومعكوس لكل فليب فلوب
الاستخدامات
- تخزين ريجستر بيانات 4 بت متزامن
- بناء ريجسترات إزاحة وعدادات
- تصميم منطق تسلسلي عام
المواصفات الفنية
- جهد التغذية: 4.75 – 5.25 فولت
- عائلة المنطق: TTL
- التغليف: DIP بـ16 رجل
لمزيد من التفاصيل التقنية راجع الفليب فلوب على ويكيبيديا، وتصفح باقي الدوائر المتكاملة والمتحكمات المتوفرة عندنا.
