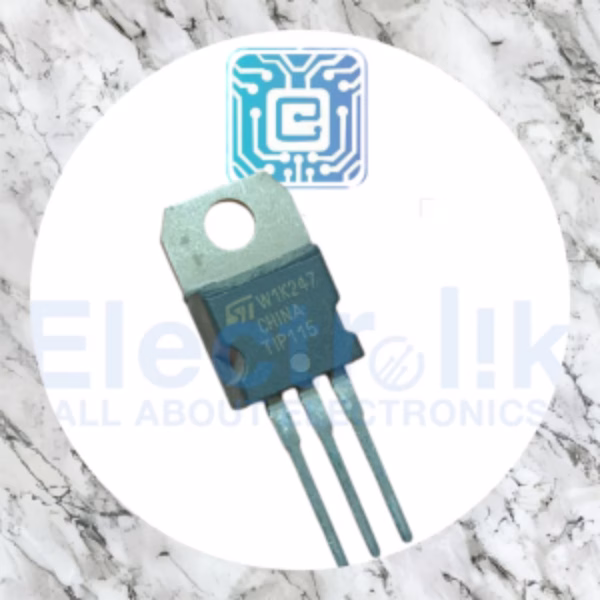

Transistor TIP115 PNP 4A 60V

Description:Transistor TIP115 PNP 4A 60V

TIP115 Transistor is a high-efficiency PNP Darlington power transistor engineered for applications that demand high current gain, excellent reliability, and efficient power switching. The TIP115 Transistor combines two transistors in a Darlington configuration, providing an exceptionally high DC current gain while maintaining low saturation voltage and fast switching characteristics.

With a maximum collector current of 4A and a collector-emitter voltage rating of 60V, the TIP115 Transistor is perfectly suited for power amplification, voltage regulation, and industrial control applications. It is commonly used in audio output stages, motor drivers, and power supply systems where strong amplification and consistent performance are required.

Built using silicon planar technology, the TIP115 Transistor delivers excellent thermal stability, energy efficiency, and long-term durability. Its standard TO-220 package allows for effective heat dissipation and easy integration into both consumer and industrial-grade circuits.

Key Features:

• PNP Darlington Transistor: Offers very high DC gain for efficient amplification.

• High Collector Current: Handles up to 4A continuous current.

• Moderate Voltage Capability: Operates safely up to 60V collector-emitter voltage.

• Low Saturation Voltage: Minimizes power loss and heat generation.

• Fast Switching Response: Suitable for high-speed control and power circuits.

• Built-in Base-Emitter Resistor: Prevents false triggering and enhances stability.

• Standard TO-220 Package: Provides easy mounting and superior thermal management.

Applications:

• Audio power amplifiers and driver stages

• Motor control and speed regulation systems

• DC-DC converters and power supplies

• Voltage regulators and switching circuits

• Relay and solenoid driver modules

• Automation and industrial electronic systems

Electrical Characteristics (Typical Values):

Advantages:

• Provides high amplification and switching efficiency.

• Energy-efficient design reduces power consumption.

• Reliable performance under continuous high load conditions.

• Thermally stable with excellent heat dissipation capability.

• Compatible with a wide range of audio, control, and industrial circuits.

Summary:

The TIP115 Transistor is a robust and high-gain PNP Darlington power transistor that delivers superior performance for both amplification and switching applications. With its 4A current capacity and 60V voltage rating, it is ideal for power amplifiers, regulators, and motor drivers. The transistor’s low saturation voltage, built-in protection resistor, and efficient thermal characteristics ensure long-term stability and consistent operation. Whether used in professional electronics, industrial systems, or educational projects, the TIP115 Transistor provides exceptional durability, reliability, and performance for modern power electronic designs.
