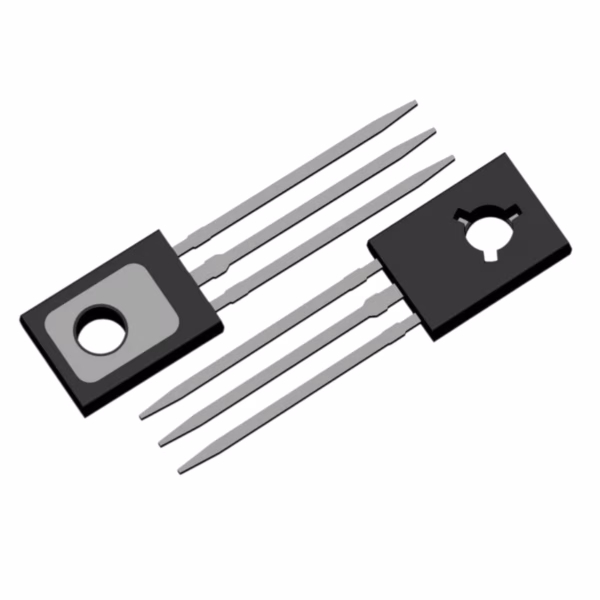

Transistor A1021 PNP 150V 1.5A

Transistor A1021 PNP 150V 1.5A

High-Voltage A1021 Transistor for Professional Audio and Power

The A1021 Transistor (commonly recognized as the 2SA1021) acts as a specialized PNP silicon epitaxial component. It serves applications requiring high breakdown voltages and moderate current handling. Engineers consistently choose this building block when developing high-fidelity audio equipment and robust power supplies.

Superior Voltage Capability and Signal Integrity

Specifically, the A1021 withstands a collector-emitter voltage of up to 150V. This makes the device perfect for the driver stages of high-voltage power amplifiers. Furthermore, the unit handles a continuous collector current of 1.5A. This capacity allows it to bridge the gap between small-signal transistors and large-scale power devices effectively. Moreover, the low output capacitance ensures high signal speed and minimal distortion. Choosing this transistor provides a significant safety margin for circuits that face frequent voltage spikes.

Optimized Thermal and Structural Design

Additionally, the A1021 utilizes the TO-92L (Large) package style. This specific design offers a larger surface area for heat dissipation. Consequently, the transistor maintains a stable operating temperature during heavy electrical loads. Furthermore, the high DC current gain ($h_{FE}$) linearity ensures consistent amplification across various current levels. This stability makes the A1021 a reliable choice for color TV vertical deflection circuits and industrial switching regulators.

Moreover, the robust construction of the A1021 guarantees a long operational lifespan in demanding environments. Technicians frequently install this model in high-voltage electronic ballasts and DC-to-DC converters. Because it features PNP polarity, it often works alongside NPN counterparts. These pairs create efficient push-pull output configurations in professional-grade audio hardware. Furthermore, the component meets modern environmental standards, ensuring safe integration into global consumer electronics. Its versatility and high-voltage rating make it an indispensable tool for any electronic repair or design project.

Verified Data Sheet (Technical Specifications)
