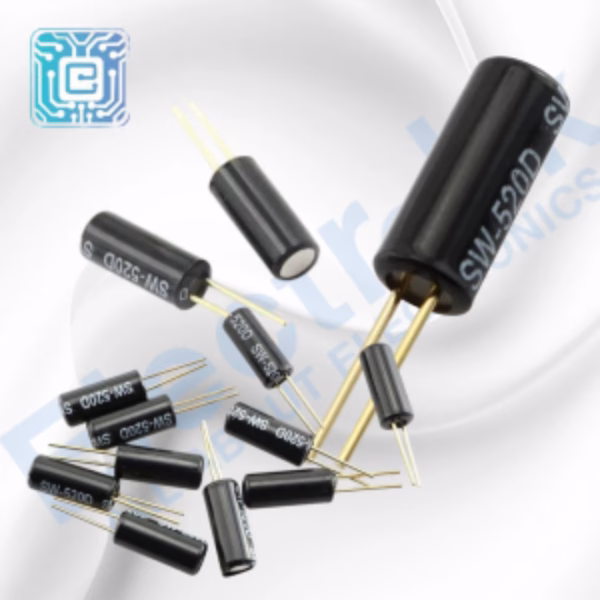

SW-520D Vibration Sensor

is a compact and highly sensitive motion detection component used to sense vibrations, tilts, and shocks in electronic systems. This sensor is designed with a simple internal rolling ball mechanism that closes the circuit when movement or vibration occurs, making it ideal for applications requiring motion or tilt detection.

The SW-520D Vibration Sensor operates on a simple principle: inside the sealed metal tube, a small conductive ball moves when the sensor experiences vibration or tilt. When the ball touches the conductive ends, it completes the electrical circuit, sending a digital signal to the microcontroller. This simple yet effective design makes it a perfect choice for projects that need motion-triggered inputs, such as alarms, safety systems, and smart automation devices.

Moreover, the SW-520D offers exceptional durability and sensitivity, even in small-scale projects. It can detect a wide range of mechanical vibrations while maintaining low power consumption. It is fully compatible with Arduino, ESP32, and Raspberry Pi platforms, and can be easily integrated into security or motion-based automation projects.

In addition, the sensor is reliable in detecting physical movement while ignoring static conditions, ensuring accurate output readings. It is lightweight, cost-effective, and easy to interface with both analog and digital circuits, making it an essential component for students, hobbyists, and engineers.

Features

• Type: Vibration and Tilt Detection Sensor

• Model: SW-520D

• Operating Voltage: 3.3V – 5V DC

• Detection Method: Mechanical vibration via internal rolling ball

• Output Type: Digital (ON/OFF switching)

• Compact and lightweight design

• Low power consumption

• High sensitivity and fast response time

• Long operational life and stable performance

• Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers

Data Sheet

Handling & Safety

Always power the switch sensor within its rated voltage range and double-check pin connections before powering up. Avoid touching the circuit while it is live, and keep it away from moisture and static discharge during handling. These steps protect the part from damage.

Why Choose This Switch Sensor

First, it is a widely used part in the maker community, so documentation, libraries and example wiring diagrams are easy to find. Second, it works with common microcontroller platforms, so you can get it running quickly. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for learning, prototyping or finishing a project.

Wiring Tips

Before final assembly, test the part on a breadboard if you are unsure of the wiring. Therefore, you avoid damaging your main circuit during first power-up. Also, keep connections short and secure to reduce noise and reading errors. In addition, label each wire during assembly so future troubleshooting is easier. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched switch sensor saves time on debugging later. Therefore, double-check the pin layout and voltage requirements against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.
