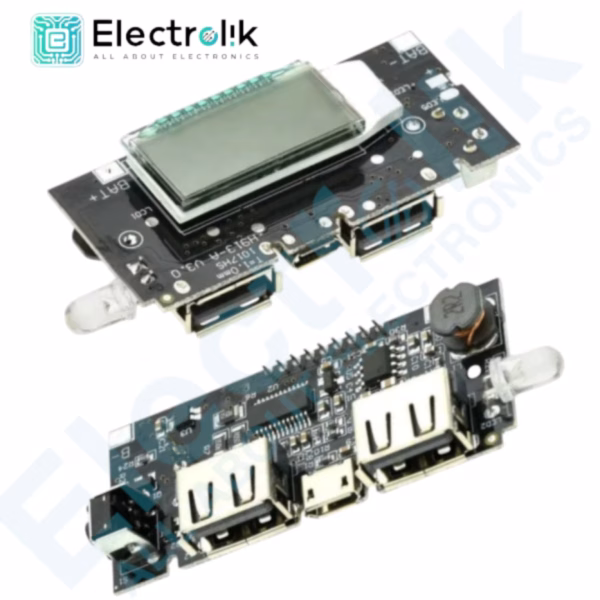

Power Bank Charger Module with LCD & Dual USB Interface

Overview

 is a versatile, high-efficiency charging and discharging module designed for DIY power banks and portable energy applications. Equipped with a smart LCD display, it provides real-time voltage, current, and battery level information. The module features dual USB output ports (5V 1A & 2.1A), enabling simultaneous charging of two devices while maintaining stable output performance. Built-in automatic protection safeguards against overcharge, over-discharge, short circuit, and reverse polarity, ensuring both user and device safety.

Key Features

• Input Voltage: 5V DC via Micro USB or solder terminals.

• Output Ports: Dual USB output — 5V 1A and 5V 2.1A for fast and standard charging.

• LCD Display: Real-time display of voltage, current, and battery percentage.

• Charging Compatibility: Suitable for smartphones, tablets, and portable devices.

• Battery Type: Compatible with single or multiple 3.7V lithium-ion batteries (18650 type recommended).

• Automatic Protection: Built-in protection for over-voltage, over-current, short circuit, and reverse connection.

• High Conversion Efficiency: Over 90% energy conversion for maximum performance.

Applications

is suitable for:Power Bank Charger Module with LCD & Dual USB Interface

• DIY power bank projects and portable chargers.

• Battery-powered embedded systems.

• Emergency charging systems and solar-based power banks.

• Electronic development and educational projects.

Advantages:

• Dual USB outputs allow simultaneous charging of two devices.

• Smart LCD screen provides clear and accurate system status.

• Compact and lightweight design for easy integration into custom enclosures.

• High-efficiency circuit minimizes energy loss and heat generation.

• Built-in safety protection ensures long battery and module lifespan.

Technical Specifications (Data Sheet)

Usage Notes

• Connect the 3.7V lithium battery pack to the module’s battery terminals.

• Ensure correct polarity before powering the device.

• Use a standard 5V input for charging the module.

• Avoid exposure to moisture or high-temperature environments.

• Ideal for DIY enthusiasts, students, and engineers building portable charging solutions.

Conclusion

The Power Bank Charger Module with LCD & Dual USB Interface 5V 1A 2.1A With Automatic Protection offers an efficient, safe, and intelligent charging solution for modern portable electronics. With its dual USB outputs, smart LCD display, and built-in safety features, it delivers both performance and convenience. Whether used in custom power banks, DIY electronics, or mobile charging systems, this module ensures reliable operation, excellent energy efficiency, and complete protection for your devices.

Handling & Safety

Always confirm input/output voltage and polarity before powering the module for the first time. Do not exceed the module’s rated current. Keep it away from moisture and avoid shorting the output terminals. These steps keep your circuit safe.

Why Choose This Module

First, it is rated for a specific voltage and current range, so it matches common DIY and repair use cases without guesswork. Second, our team checks basic function before it ships. Third, a properly matched module protects the rest of your circuit better than a generic, unrated one. So, you avoid damaging other components. As a result, this is a dependable choice for powering or converting voltage in your project.

Wiring Tips

Before final assembly, test the module with a bench supply if you are unsure of the wiring. Therefore, you avoid damaging your main circuit during first power-up. Also, adjust any onboard trimmer carefully and re-check the output voltage with a multimeter before connecting a load. In addition, secure the module to your enclosure or PCB so it does not shift during use. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched power/interface module saves time on debugging later. Therefore, double-check the pin layout and voltage requirements against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.

Power Bank Charger Module with LCD & Dual USB Interface

Power Bank Charger Module with LCD & Dual USB Interface موديول مخصص لـ بناء أو إصلاح باور بانك محمول.

المميزات

• الحالة: جديد، تم اختبار وظيفته الأساسية قبل الشحن

ملاحظات الأمان

تأكد دايمًا من جهد الدخل والخرج والقطبية قبل تشغيل الموديول لأول مرة. لا تتجاوز التيار المقنن للموديول. خليه بعيد عن الرطوبة وتجنب عمل قصر كهربائي في أطراف الخرج. هذه الخطوات بتحافظ على أمان الدائرة.

ليه تختار الموديول ده

أولاً، مصمم لجهد وتيار معين فيطابق استخدامات DIY والإصلاح الشائعة من غير تخمين. ثانيًا، بنتأكد من الوظيفة الأساسية قبل الشحن. ثالثًا، الموديول المطابق بيحمي باقي الدائرة أفضل من موديول عام غير مقنن. فهو اختيار موثوق لتغذية أو تحويل الجهد في مشروعك.
