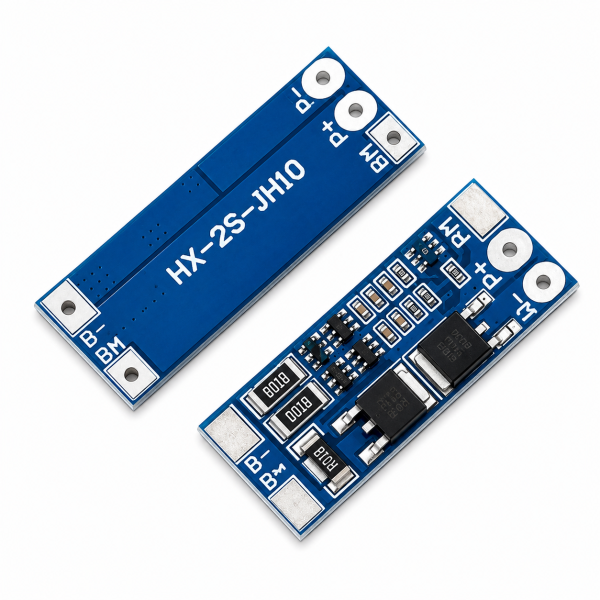

BMS 2S 8A Balanced & Protected

BMS 2S 8A Balanced & Protected

Overview

• BMS 2S 8A Balanced & Protected is a compact and reliable battery management system designed specifically for 2-series lithium battery packs. This module plays a critical role in protecting batteries, improving safety, and extending battery lifespan in a wide range of electronic applications. It integrates essential protection and balancing functions into a small PCB, making it ideal for space-constrained designs.

• BMS 2S 8A Balanced & Protected supports two lithium cells connected in series and manages charging and discharging currents up to 8 amperes. As a result, it ensures stable performance for battery-powered systems such as portable electronics, DIY power packs, and embedded projects.

Protection Functions

• This BMS module provides comprehensive protection against common battery hazards. It actively protects cells from over-charging, over-discharging, over-current, and short-circuit conditions. Therefore, it significantly reduces the risk of battery damage, overheating, or failure during operation.

• In addition, the protection circuitry reacts quickly to abnormal conditions. This fast response helps maintain system stability and protects connected loads from sudden voltage drops or excessive current draw.

Cell Balancing Capability

• BMS 2S 8A Balanced & Protected includes built-in cell balancing functionality. This feature equalizes the voltage of the two series-connected cells during charging. Consequently, both cells reach full charge evenly, which improves overall efficiency and extends battery life.

• Moreover, balanced charging prevents one cell from becoming overstressed compared to the other. This is especially important in long-term applications where consistent battery health matters.

Design and Integration

• The module features a small and lightweight PCB with clearly labeled terminals for battery connections and load output. This design simplifies wiring and reduces installation errors, even for beginners.

• Furthermore, BMS 2S 8A Balanced & Protected integrates easily into custom battery packs and enclosures. Its low power consumption ensures that it does not significantly drain the battery during standby operation.

Practical Applications

• This BMS module suits many battery-powered systems that require safe and efficient power management. Engineers, hobbyists, and technicians commonly use it in projects that demand reliability and protection.

Typical Applications

• 2S lithium battery packs

• DIY power banks and backup batteries

• Portable electronic devices

• Robotics and automation systems

• Embedded and IoT power solutions

Key Features

• Designed for 2-cell (2S) lithium battery packs

• Maximum continuous current: 8A

• Over-charge and over-discharge protection

• Over-current and short-circuit protection

• Built-in cell balancing function

• Compact and lightweight PCB design

• Low standby power consumption

Datasheet (Technical Specifications)

• Product Type: Battery Management System (BMS)

• Configuration: 2S (two cells in series)

• Maximum Continuous Current: 8 A

• Battery Type: Lithium-ion / Lithium polymer

• Over-Charge Protection Voltage: Typical 4.25 V ± tolerance per cell

• Over-Discharge Protection Voltage: Typical 2.5 V ± tolerance per cell

• Balancing Function: Yes

• Short-Circuit Protection: Supported

• PCB Size: Compact form factor

• Operating Temperature: Suitable for standard electronic environments
