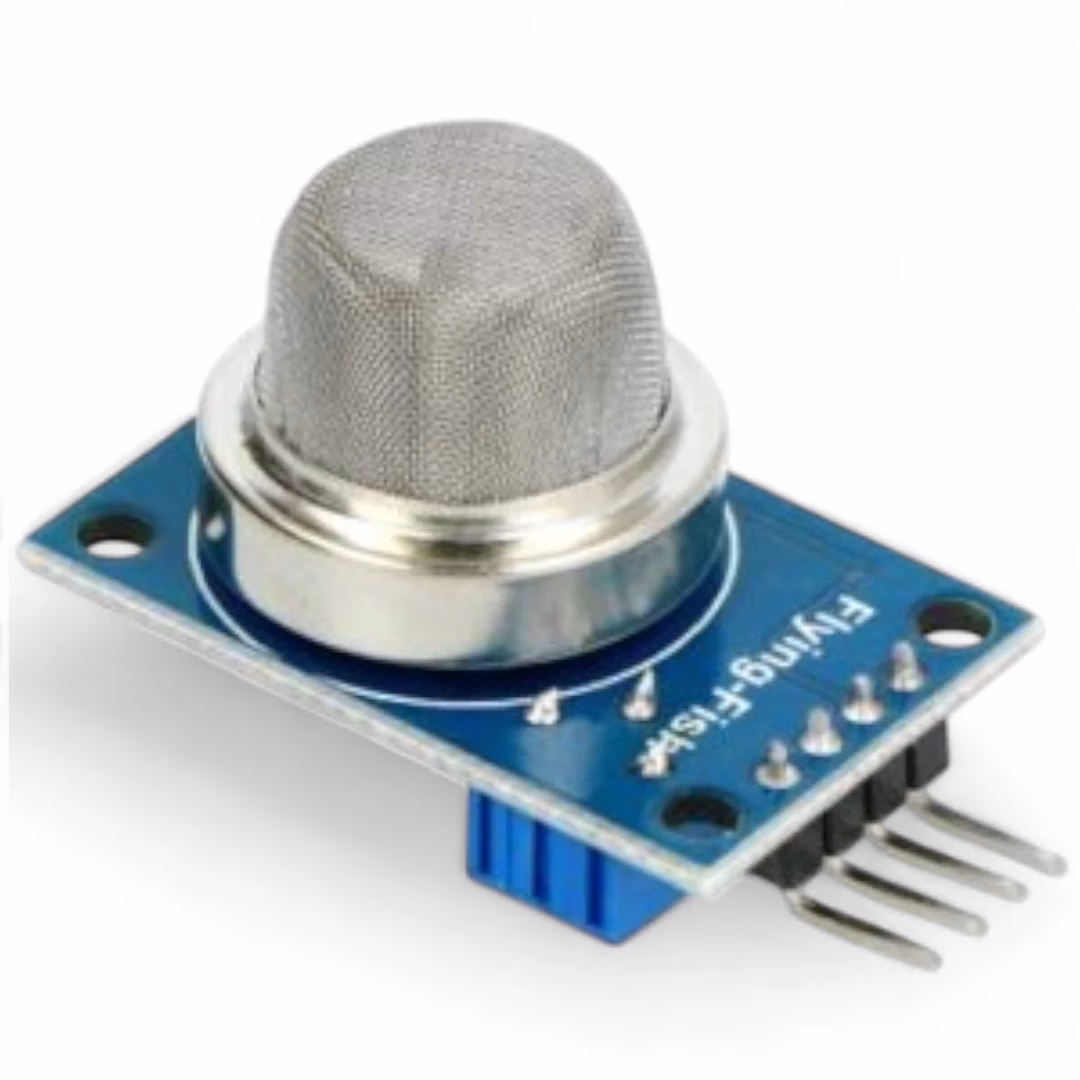

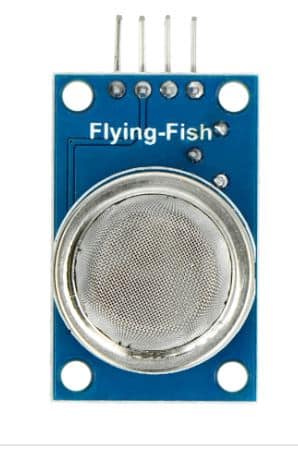

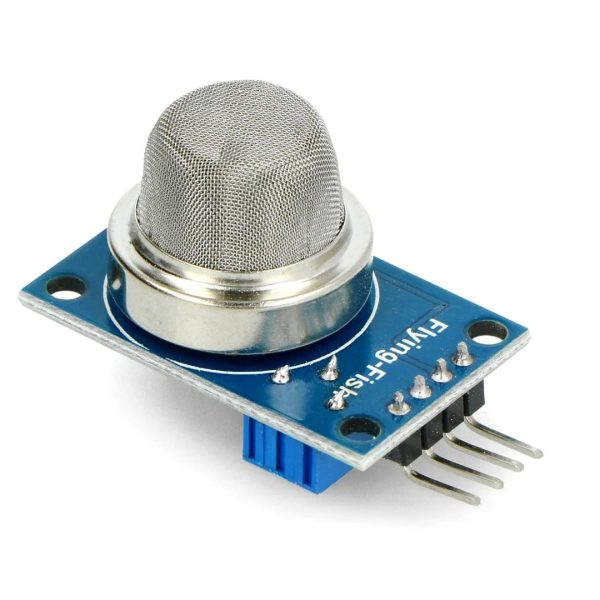

MQ4 Gas Sensor Module

MQ4 Gas Sensor Module

The MQ4 Gas Sensor Module is an advanced and reliable component designed for accurate detection of methane (CH₄) and natural gas in the environment. It offers excellent performance, durability, and ease of integration, making it ideal for a wide range of industrial, commercial, and educational applications. Moreover, its high sensitivity and fast response time ensure that even small concentrations of gas are quickly detected, enhancing safety and reliability in every project.

Key Features of MQ4 Gas Sensor Module

• High Sensitivity and Precision:
  The MQ4 Gas Sensor Module utilizes a sensitive SnO₂ semiconductor material that reacts rapidly to methane and natural gas. Consequently, it provides highly accurate readings and consistent results even under fluctuating environmental conditions.

• Stable and Long-Lasting Performance:
  The sensor is built to operate reliably for extended periods. In addition, its robust design helps maintain stable operation in various humidity and temperature ranges, ensuring dependable detection in real-world applications.

• Dual Output Functionality:
  This module supports both analog and digital outputs. Therefore, users can easily connect it to microcontrollers such as Arduino, Raspberry Pi, or ESP32. The analog output allows for proportional readings of gas concentration, while the digital output triggers alerts once a certain gas threshold is reached.

• Adjustable Sensitivity:
  Furthermore, the onboard potentiometer makes it simple to calibrate the sensor based on specific requirements. As a result, users can fine-tune its performance to suit different sensitivity levels or detection ranges.

• Compact and Easy to Use:

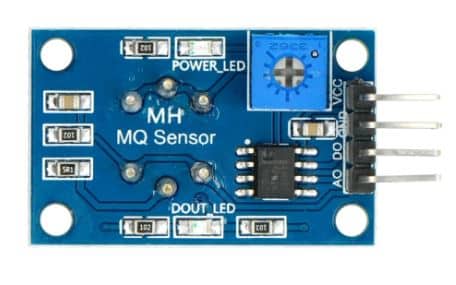

  With a 4-pin interface (VCC, GND, AO, DO), the MQ4 Gas Sensor Module is straightforward to integrate. Besides, its small form factor and low power consumption make it perfect for portable or embedded systems.

Technical Specifications

• Operating Voltage: 5V DC

• Detection Range: 200–10000 ppm (Methane)

• Preheat Time: ≤20 seconds

• Output: Analog (0–5V) and Digital (TTL Logic)

• Operating Temperature: -10°C to 50°C

• Dimensions: 32mm x 20mm

Applications

• Smart home gas leak detection systems

• Industrial safety and automation devices

• Environmental air quality monitoring

• IoT and educational robotics projects

Why Choose the MQ4 Gas Sensor Module

Overall, the MQ4 Gas Sensor Module combines accuracy, versatility, and ease of use in one compact device. Its fast detection speed, adjustable sensitivity, and durable build make it an excellent choice for both beginners and professionals. Therefore, if you’re looking to enhance your project with a dependable gas sensor, this module is the perfect solution.

Handling & Safety

Always power the gas sensor within its rated voltage range and double-check pin connections before powering up. Avoid touching the circuit while it is live, and keep it away from moisture and static discharge during handling. These steps protect the part from damage.

Why Choose This Gas Sensor

First, it is a widely used part in the maker community, so documentation, libraries and example wiring diagrams are easy to find. Second, it works with common microcontroller platforms, so you can get it running quickly. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for learning, prototyping or finishing a project.

Wiring Tips

Before final assembly, test the part on a breadboard if you are unsure of the wiring. Therefore, you avoid damaging your main circuit during first power-up. Also, keep connections short and secure to reduce noise and reading errors. In addition, label each wire during assembly so future troubleshooting is easier. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched gas sensor saves time on debugging later. Therefore, double-check the pin layout and voltage requirements against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.

MQ4 Gas Sensor Module

MQ4 Gas Sensor Module حساس غاز مخصص لـ الكشف عن تركيز الغازات أو جودة الهواء داخل الدائرة.

الاستخدامات

• مشاريع كشف تسريب الغاز والدخان
• مراقبة جودة الهواء
• أتمتة الأمان المنزلي
• مشاريع الأمان الصناعي والورش

ملاحظات الأمان

شغّل حساس غاز دايمًا في حدود الجهد المقنن ليه، وراجع توصيلات الأطراف قبل التشغيل. تجنب لمس الدائرة وهي شغالة، وخليها بعيدة عن الرطوبة والشحنات الساكنة أثناء التعامل معاها. هذه الخطوات بتحمي القطعة من التلف.

ليه تختار حساس غاز ده

أولاً، قطعة مستخدمة بشكل واسع في مجتمع الصناع، فتلاقي شروحات ومكتبات وأمثلة توصيل بسهولة. ثانيًا، بيشتغل مع منصات المتحكمات الشائعة، فتقدر تشغّله بسرعة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للتعلم أو التجربة أو إنهاء مشروعك.

تقدر تستعرض باقي الحساسات والموديولات عندنا لمشروعك القادم.
