IMU (MPU6050) Gyroscope + Accelerometer Sensor Module

IMU (MPU6050) Gyroscope + Accelerometer Sensor Module is one of the most widely used motion-tracking and orientation-sensing modules in robotics, drones, IoT systems, and embedded electronics. Because modern projects depend heavily on accurate movement detection and stability control, the IMU (MPU6050) Gyroscope + Accelerometer Sensor Module provides an advanced 6-axis motion processing solution that integrates a 3-axis gyroscope and a 3-axis accelerometer into a single, compact MEMS-based chip.

The MPU6050 communicates via the I²C protocol, allowing seamless integration with microcontrollers such as Arduino, ESP32, STM32, Raspberry Pi, and many other embedded platforms. Moreover, the module includes an onboard Digital Motion Processor (DMP) capable of performing complex motion calculations internally, which significantly reduces the processing load on the microcontroller. As a result, users can achieve more stable readings, faster response times, and efficient orientation tracking.

Additionally, the sensor measures angular velocity (gyro), linear acceleration, tilt, vibration, and movement along all three axes. When combined with software filters such as the Kalman filter or complementary filter, it produces highly accurate orientation data suitable for flight controllers, self-balancing robots, gesture-controlled devices, and navigation systems. Thanks to its wide operating range and stable MEMS structure, the module delivers reliable performance even in dynamic environments.

Key Features

• 6-axis MEMS motion sensor with 3-axis gyroscope + 3-axis accelerometer
• I²C digital communication for easy interfacing with microcontrollers
• Onboard DMP for real-time motion processing
• Measures pitch, roll, yaw, tilt, vibration, and linear acceleration
• High-sensitivity, low-noise MEMS technology
• Compact and lightweight module ideal for embedded designs
• Wide compatibility with Arduino, ESP32, STM32, Raspberry Pi, and more
• Suitable for drones, robotics, IoT smart devices, and motion tracking projects

Applications

• Drone flight controllers and stabilization systems
• Self-balancing robots and autonomous platforms
• RC vehicles, gimbal systems, and robotic arms
• Gesture-recognition systems and gaming controllers
• IoT smart devices requiring motion detection
• Wearables, step counters, and movement analyzers
• Navigation systems and environmental mapping
• Educational, research, and prototyping projects

Technical Data Sheet

Why Choose This Sensor Module?

This IMU module is preferred by engineers and developers because it combines accuracy, reliability, and ease of integration. Thanks to its built-in DMP, stable MEMS design, and extensive software support, it delivers high-precision motion data with minimal microcontroller overhead. Whether you are designing a drone, robot, navigation device, or smart gadget, this module ensures consistent and professional-grade motion sensing.

MPU6050 Pinout Configuration

Where to Use MPU6050

The MPU6050 is a Micro-Electro-Mechanical System (MEMS) that consists of a 3-axis Accelerometer and 3-axis Gyroscope inside it. This helps us to measure acceleration, velocity, orientation, displacement, and many other motion-related parameters of a system or object. This module also has a (DMP) Digital Motion Processor inside it which is powerful enough to perform complex calculations and thus free up the work for Microcontroller.

The module also has two auxiliary pins which can be used to interface external IIC modules like a magnetometer, however, it is optional. Since the IIC address of the module is configurable more than one MPU6050 sensor can be interfaced to a Microcontroller using the AD0 pin. This module also has well-documented and revised libraries available hence it’s very easy to use with famous platforms like Arduino. So if you are looking for a sensor to control motion for your RC Car, Drone, Self-balancing Robot, Humanoid, Biped, or something like that then this sensor might be the right choice for you.

How to Use MPU6050 Sensor

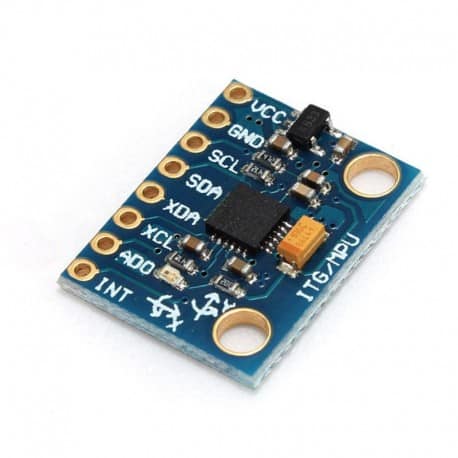

The hardware of the module is very simple, it comprises the MPU6050 as the main component as shown above. Since the module works on 3.3V, a voltage regulator is also used. The IIC lines are pulled high using a 4.7k resistor and the interrupt pin is pulled down using another 4.7k resistor.

The MPU6050 module allows us to read data from it through the IIC bus. Any change in motion will be reflected on the mechanical system which will in turn vary the voltage. Then the IC has a 16-bit ADC which it uses to accurately read these changes in voltage and stores it in the FIFO buffer and makes the INT (interrupt) pin to go high. This means that the data is ready to be read, so we use a MCU to read the data from this FIFO buffer through IIC communication. As easy as it might sound, you may face some problem while actually trying to make sense of the data. However there are lots of platforms like Arduino using which you can start using this module in no time by utilizing the readily available libraries explained below.

2D Model of MPU6050

Applications

• Used for IMU measurement
• Drones / Quadcopters
• Self-balancing robots
• Robotic arm controls
• Humanoid robots
• Tilt sensor
• Orientation / Rotation Detector

MPU6050 Datasheet

Package Includes:

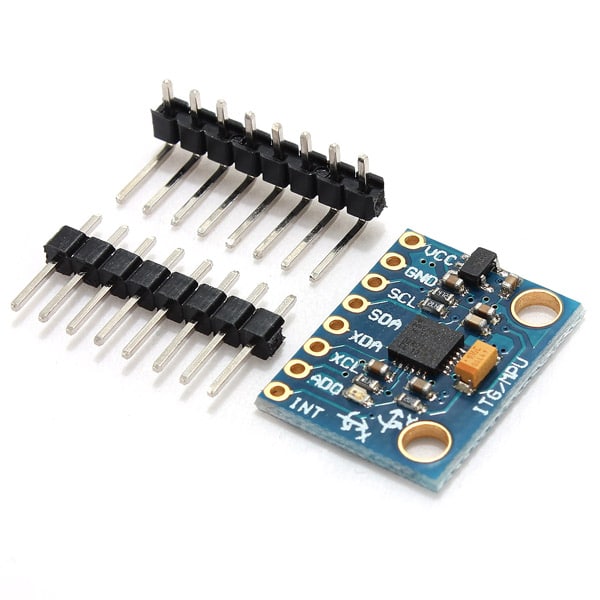

• MPU-6050 GY-521 3-Axis Accel & Gryo Sensor Module.
• 8-pin male header straight.
• 8-pin male header right-angle.
