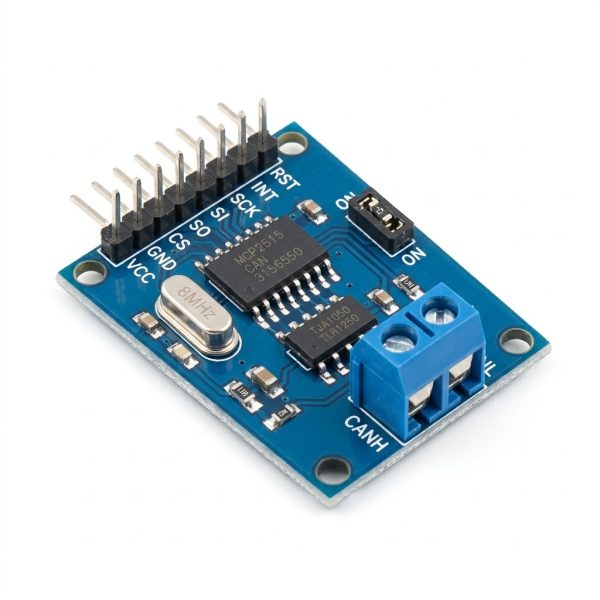

MCP2515 CAN Bus Controller

📝 Product Description

The MCP2515 CAN Bus Controller is a stand-alone, high-performance CAN controller interface that simplifies adding Controller Area Network (CAN) connectivity to your microcontroller projects. Specifically, this chip implements the CAN specification Version 2.0B actively. It is designed to handle all CAN protocol functions internally, freeing up your main processor for other tasks. Hobbyists and professionals frequently utilize this controller in automotive, industrial automation, and robotics applications due to its reliability and ease of integration via the Serial Peripheral Interface (SPI).

Seamless SPI Integration

Furthermore, the MCP2515 CAN Bus Controller interfaces seamlessly with microcontrollers using a standard SPI connection. Consequently, it is highly compatible with popular platforms like Arduino, Raspberry Pi, and ESP32. This interface supports speeds up to 10 MHz, ensuring rapid data transfer between the host and the CAN controller. Additionally, the device features two receive buffers and three transmit buffers with automated message management. These features actively reduce the overhead on the host microcontroller, leading to smoother system performance.

Robust Automotive & Industrial Networking

Moreover, this controller is engineered for robust performance in challenging environments. It fully supports standard (11-bit) and extended (29-bit) data frames. The CAN protocol is renowned for its error detection and confinement capabilities. Consequently, using the MCP2515 CAN Bus Controller ensures highly reliable communication over long distances in noisy electrical environments. Specifically, the device includes sophisticated masking and filtering capabilities. This allows your system to ignore irrelevant messages on the bus actively, optimizing processing efficiency.

Key Technical Features

Additionally, the controller operates over a wide voltage range, typical from 2.7V to 5.5V. This flexibility makes it suitable for both 3.3V and 5V systems without needing level shifters. Furthermore, it includes a low-power sleep mode to conserve energy when idle. The device is capable of handling data rates up to 1 Mb/s, satisfying the requirements of high-speed CAN networks. Ultimately, the MCP2515 CAN Bus Controller is an essential component for building scalable, networked electronic systems.

📊 Verified Data Sheet

• Specification: Value
• Type: Stand-Alone CAN Controller
• CAN Specification: Version 2.0B Passive (1 Mb/s)
• Interface: High-Speed SPI (up to 10 MHz)
• Supply Voltage (VCC): 2.7V to 5.5V
• Operating Current: 5 mA (Typical @ 5V, 1 MHz CAN)
• Standby Current: < 1 µA (Typical)
• Buffers: 2 Receive Buffers, 3 Transmit Buffers
• Filters/Masks: 6 Filters, 2 Masks
• Frame Support: Standard (11-bit) & Extended (29-bit)
• Temperature Range: Industrial: -40°C to +85°C
• Packaging Options: PDIP, SOIC, TSSOP (Module varies)

External Link :  https://www.youtube.com/results?search_query=MCP2515+CAN+Bus+Controller+tutorial+Arduino

Internal Link :  https://electrolik-eg.com/?s=MCP2515&post_type=product

Handling & Safety

Always confirm rated voltage and current before wiring the can bus module into a circuit. Avoid touching live terminals, and keep it away from moisture and static discharge during handling. These steps protect the part and keep you safe.

Why Choose This CAN Bus Module

First, it is a widely used part in electronics workshops and the maker community, so documentation and wiring references are easy to find. Second, the rated values are clearly specified, so you can match it to your project with confidence. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for repair, prototyping or finishing a project.

Wiring Tips

Before final assembly, test the part on a bench supply if you are unsure of the wiring. Therefore, you avoid damaging your main circuit during first power-up. Also, keep connections short and secure to reduce noise and contact issues. In addition, label each wire during assembly so future troubleshooting is easier. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched can bus module saves time on debugging later. Therefore, double-check the rated voltage and current against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.

MCP2515 CAN Bus Controller

MCP2515 CAN Bus Controller موديول CAN Bus مخصص لـ الاتصال عبر شبكة CAN Bus.

الاستخدامات

• تشخيص وقياس بيانات السيارات
• الاتصال في الشبكات الصناعية
• الاتصال بين عقد الروبوتات المتعددة
• شبكات الأنظمة المدمجة

ملاحظات الأمان

تأكد دايمًا من الجهد والتيار المقنن قبل توصيل موديول CAN Bus في الدائرة. تجنب لمس الأطراف وهي شغالة، وخليه بعيد عن الرطوبة والشحنات الساكنة أثناء التعامل معاه. هذه الخطوات بتحمي القطعة وتحافظ على سلامتك.

ليه تختار موديول CAN Bus ده

أولاً، قطعة مستخدمة بشكل واسع في ورش الإلكترونيات ومجتمع الصناع، فتلاقي شروحات ومراجع توصيل بسهولة. ثانيًا، القيم المقننة موضحة بدقة، فتقدر تطابقها مع مشروعك بثقة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للإصلاح أو التجربة أو إنهاء مشروعك.

تقدر تستعرض باقي الموديولات الإلكترونية والإكسسوارات عندنا لمشروعك القادم.
