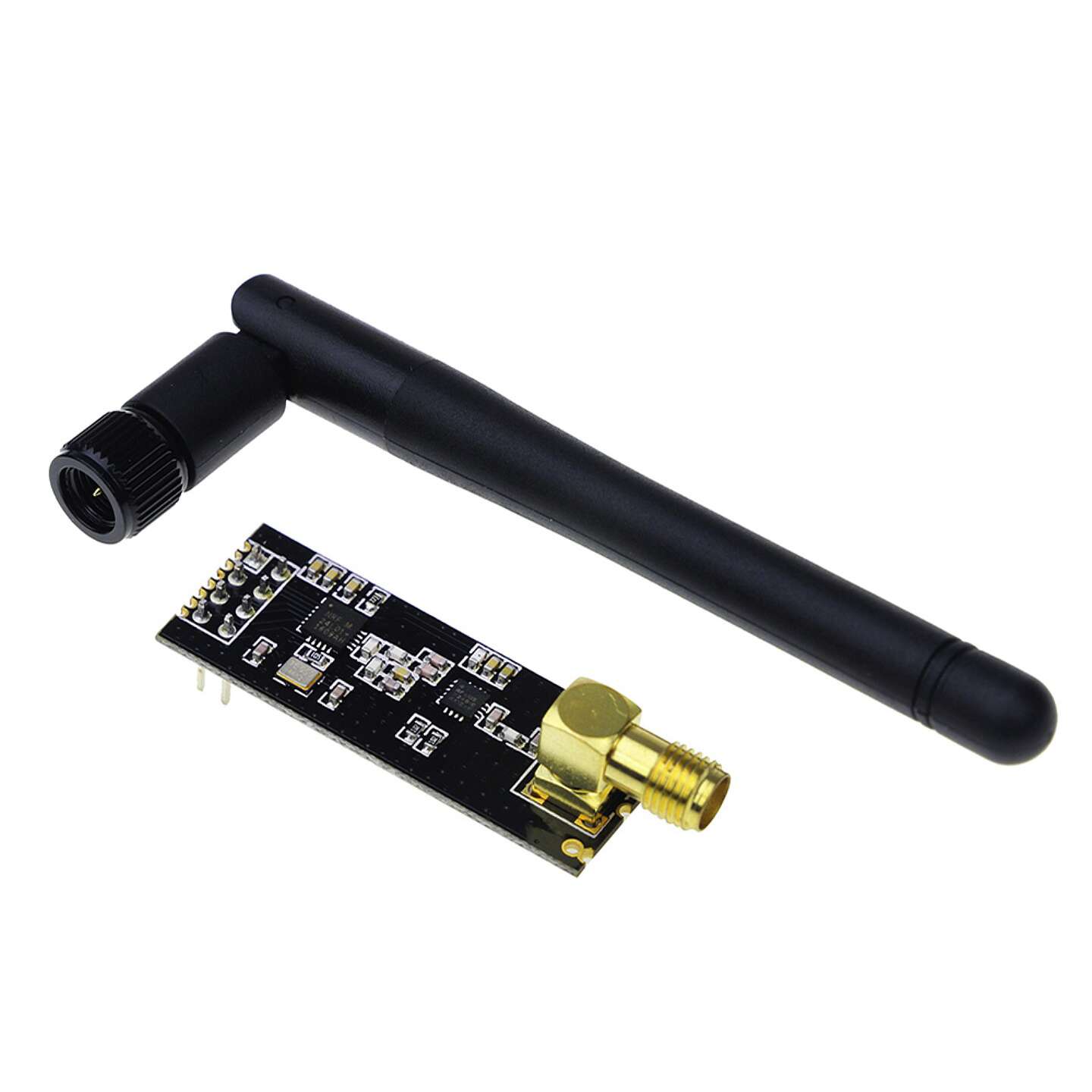

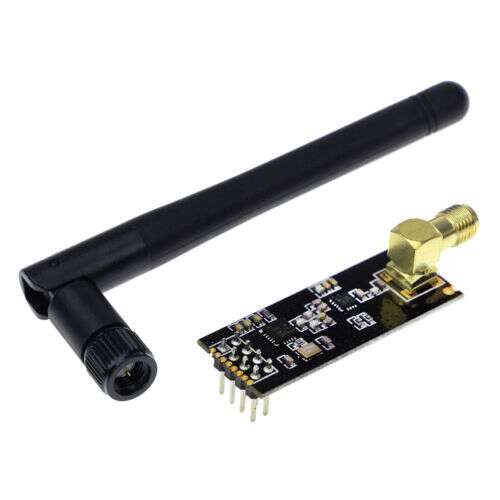

NRF24L01 Wireless Module With Antenna
Original price was: 326,70 EGP.220,00 EGPCurrent price is: 220,00 EGP.
NRF24L01+ Wireless Module with Antenna – Enhanced Long-Range Communication
This board features a reverse polarized SMA connector for maximum RF range and there is PA and LNA circuit on board, with the external antenna it can reach a long distance than the one without these parts.This module comes with the 2.4G antenna (2DB), with a 250Kbps transmission rate in the open air and it can reach 800-1K meters communication distance. This wireless Transceiver module is easy and suitable if want to set up a wireless communication system at a low cost.It can achieve a good balance between wireless transition performance and cost.
It can easily add MCU/ARM/PIC/AVR/STM32. This nRF24L01+ module is designed with the Power amplifier and SMA antenna. This allowed to use the wireless communication up to 1000 meters (No barrier). RF part, it has been done a lot of optimization matching debugging. The emission efficiency to achieve the highest harmonic minimum and make NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches minimum, while not susceptible to interference from other devices. NRF24L01P + PA + LNA wireless module integration is extremely high, the size is 41mm x 15.5mm to make conveniently embedded.
Features
- This wireless Transceiver module is easy and suitable if you want to setup your wireless communication system with low cost!!
- It can achieve a good balance between wireless transition performance and cost!
- You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system!
- What’s more, this nRF24L01+ module is designed with Power amplifier and SMA antenna
- This allowed you to use the wireless communication up to 1000 meters! (No barrier)
Specifications:
-
Voltage: 3-3.6V
- Max output power: +20 dBm
- Working current in transmit mode: 115mA
- Working current in receiver mode: 45mA
- Current in mode: 4.2uA
- Operating temperature: -20°C-70°C
- Receiver sensitivity:
- -92dBm in 2Mbps mode
- -95dBm in 1Mbps mode
- -104dBm in 250kbps mode
- PA growth: 20dB
- LAN growth: 10dB
- LAN noise figure: 2.6dB
- Antenna growth: 2dBI
- 2M rate: 520m
- It uses 2.4GHz global open ISM band, with license free.
- Transmit power is greater than +20 dBm.
- Support six-channel data reception.
- 2Mbit/s speed makes high quality VoIP possible
- Multi frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
- SPI interface facilitates the communication with MCU I/O port.
- Facilitate the development for customers, without development RF part.
- Software programming is fully compatible with NRF24L01 modules.
- Dimensions: 48×15.5x14mm
- Antenna length: 108mm

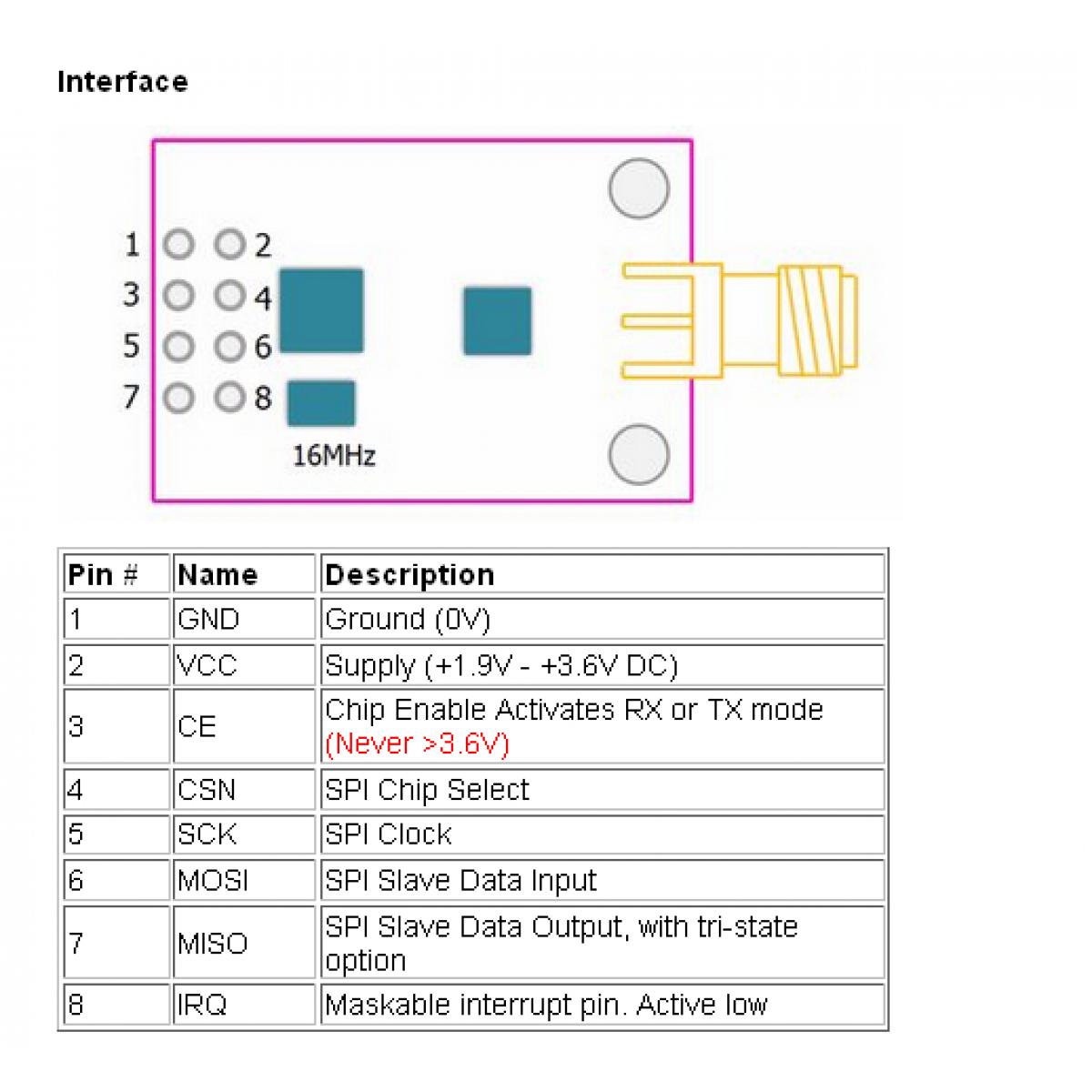

Pinout:
Applications:
- Wireless Data Transmission: Ideal for sending data wirelessly between devices in applications such as remote sensors, home automation, and robotics.
- Remote Control Systems: Utilized in creating remote control devices for various electronics and machinery.
- Wireless Networking: Forms the backbone of low-power, short-range wireless networks in industrial and consumer applications.
Package Includes:
- 1x 2.4GHz NRF24L01 Transceiver module.
- 1x SMA Antenna.
