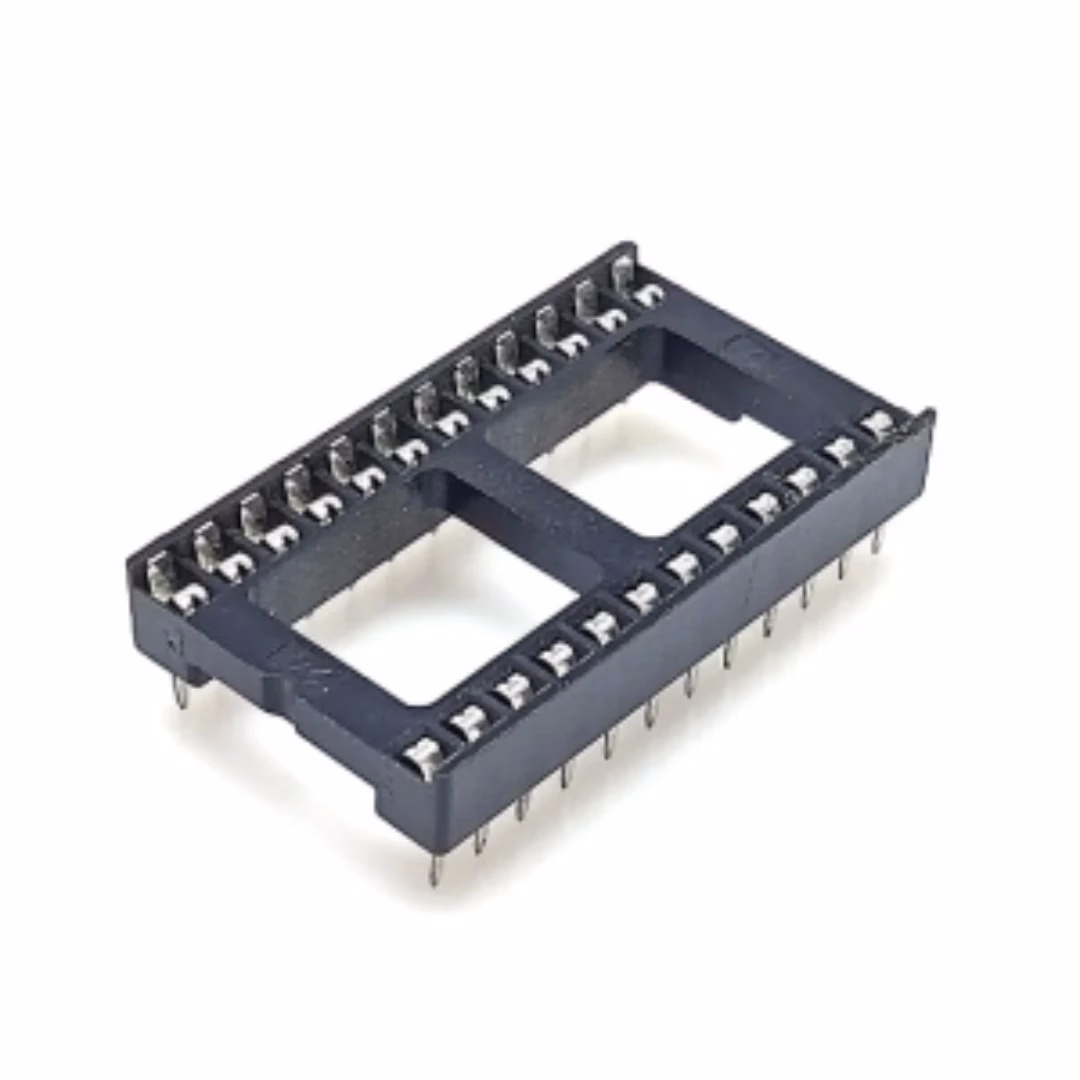

IC SOCKET Base 24 Pin DIP – Wide

The IC SOCKET Base 24 Pin DIP – Wide is a high-quality, reinforced integrated circuit socket designed for applications that require additional spacing and mechanical stability when mounting wide-body DIP ICs. Engineered for electronics engineers, technicians, educators, and development specialists, this socket ensures secure, precise, and long-lasting connectivity between the integrated circuit and the printed circuit board. The IC SOCKET Base 24 Pin DIP – Wide is widely used in prototyping, repair operations, educational labs, and production boards where frequent IC replacement is required.

This socket features expanded body spacing to accommodate ICs with wider packages while maintaining the standard 2.54mm pin pitch. Its robust design allows for repeated insertions and removals without degrading electrical contact quality. The plated contacts provide excellent conductivity, low resistance, and strong mechanical retention, ensuring stable and reliable signal transfer even in demanding electronic environments.

The IC SOCKET Base 24 Pin DIP – Wide is particularly beneficial when working with analog ICs, microcontrollers, programmable memory devices, and mixed-signal components that require additional width due to internal complexity. Its durable thermoplastic housing resists heat, chemical exposure, and physical deformation, making it ideal for both professional and educational applications.

Key Features

• Expanded spacing to accommodate wider integrated circuits

• High-quality plated contacts for superior conductivity and long-term reliability

• Durable heat-resistant housing for safe soldering and handling

• Ensures secure mechanical retention and stable electrical performance

• Ideal for prototyping, development boards, and repairable systems

• Reduces risk of IC and PCB damage during installation or replacement

• Suitable for analog, digital, and mixed-signal ICs

Applications

• Microcontroller and EEPROM programming

• Development kits and prototyping boards

• Analog/digital circuit experimentation

• Repairable electronic devices

• Educational labs requiring repeated IC insertion/removal

• Instrumentation and control systems

• Robotics and IoT projects requiring modular IC installation

• Industrial circuits requiring wide-body DIP components

Data Sheet (Technical Specifications)

• Pin Count: 24 pins

• Package Type: Wide-body DIP

• Pin Pitch: 2.54mm (standard spacing)

• Row Spacing: Wider than standard 24-pin DIP sockets (model-specific tolerance)

• Body Material: Heat-resistant engineering thermoplastic

• Contact Material: Tin or nickel-plated copper alloy

• Mounting Type: Through-hole

• Operating Temperature: –40°C to +105°C

• Contact Resistance: < 30mΩ

• Insulation Resistance: > 100MΩ at 500V DC

• Durability: ≥ 50 insertion cycles

• Mechanical Stability: High retention force with low insertion pressure

• Compatibility: Wide-body 24-pin DIP ICs, microcontrollers, memory ICs, logic devices

Benefits

• Protects ICs from damage caused by repeated soldering

• Allows easy removal and replacement of ICs during development

• Supports wide IC packages that do not fit standard sockets

• Ensures long-term stability in both prototype and final products

• Provides consistent low-resistance electrical connections

• Ideal for high-performance and precision circuits

Why Choose This Model?

is the perfect solution for engineers and technicians who require a reliable and spacious IC mounting option. Its expanded width supports advanced and large integrated circuits while ensuring excellent electrical performance and long-term durability. Whether working in development labs, production environments, or repair centers, this socket provides unmatched convenience, stability, and protection for sensitive components.
