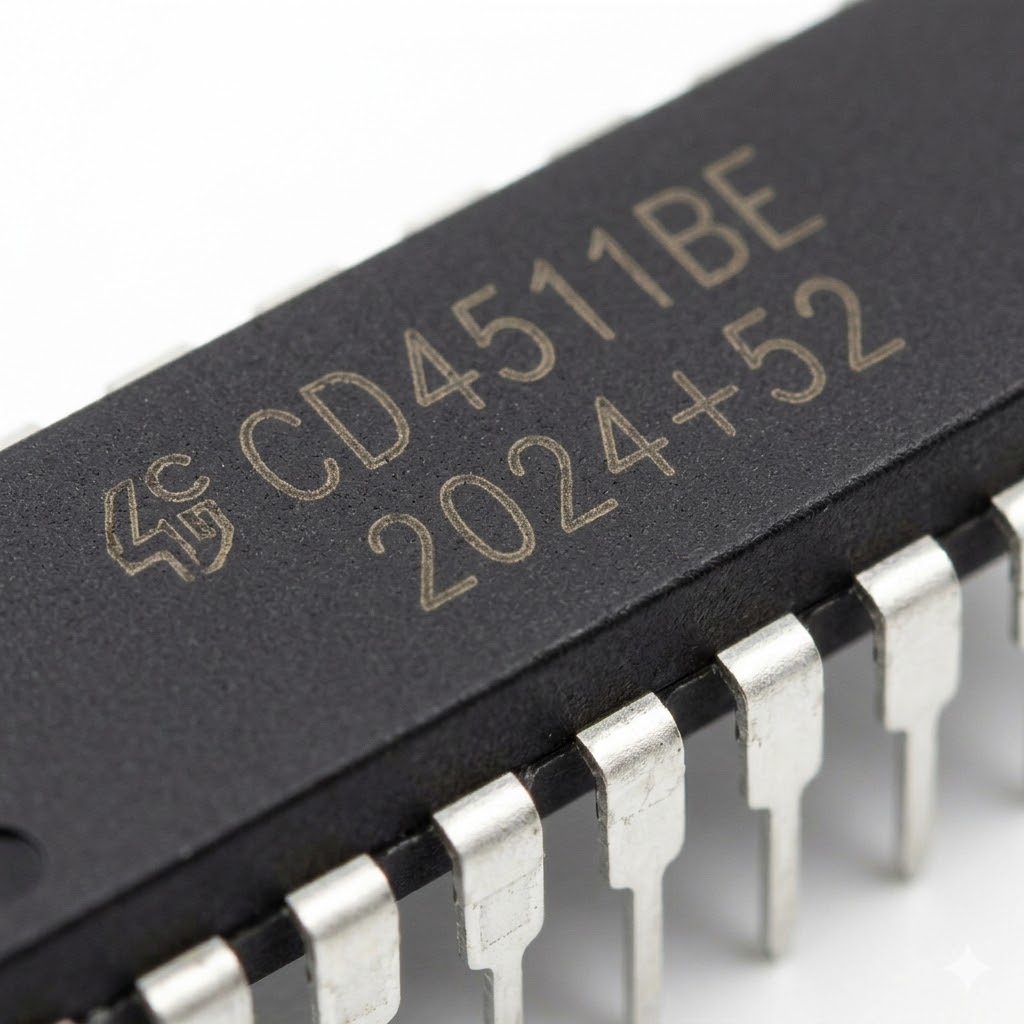

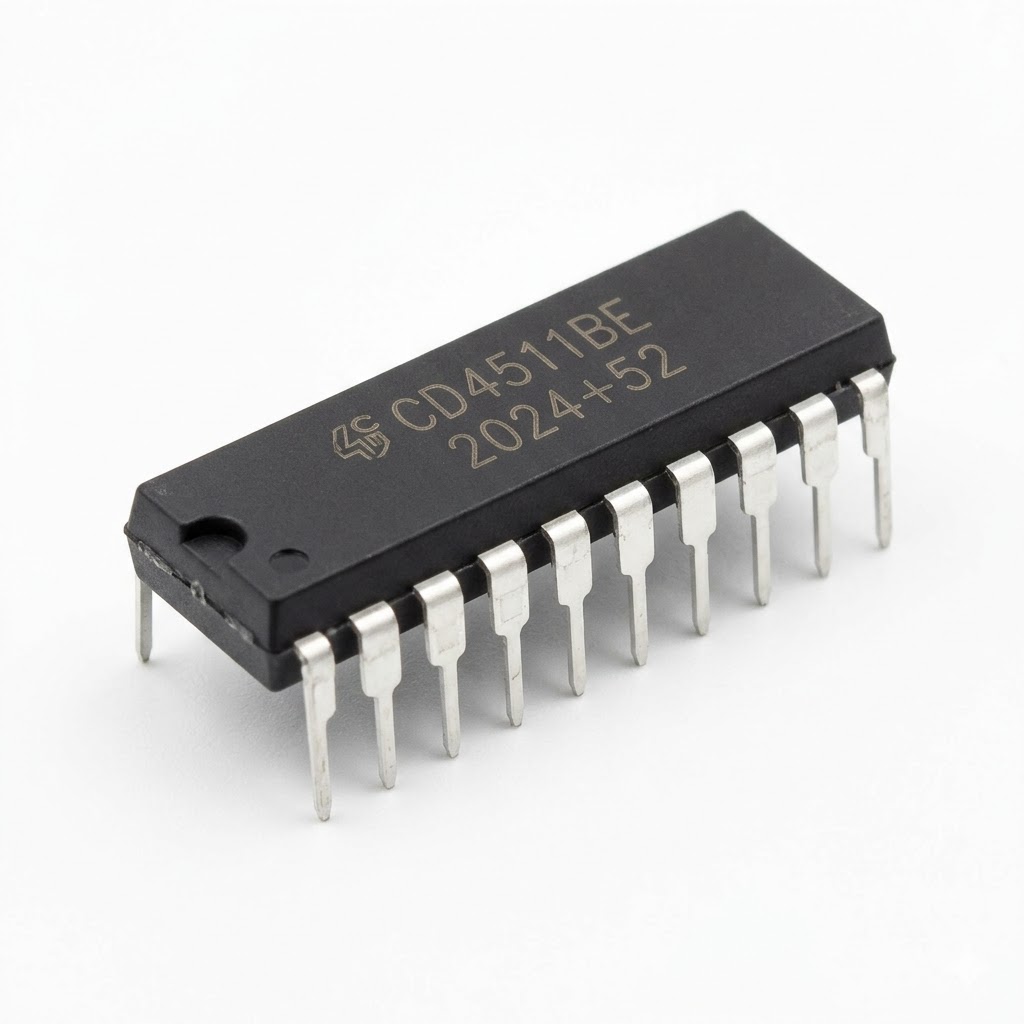

4511 IC (LATCH/DECODER/DRIVER)
Original price was: 17,00 EGP.14,00 EGPCurrent price is: 14,00 EGP.
شريحة دائرة متكاملة (IC) تُستخدم في بناء مراحل منطقية أو تحكم أو تكبير في المشاريع الإلكترونية. | an integrated circuit chip used to build logic, control, or amplification stages in electronic projects.
📝 Product Description
The 4511 IC is an essential CMOS integrated circuit that simplifies the process of driving common-cathode 7-segment LED displays from digital logic. Specifically, this device functions as a BCD-to-7-segment latch/decoder/driver. It actively translates 4-bit Binary Coded Decimal (BCD) input into the specific segment signals required to display numeric digits from 0 to 9. Furthermore, the 4511 IC includes an internal 4-bit storage latch. This allows you to “freeze” the displayed number, freeing up your main controller for other vital tasks. Its wide operating voltage range and high source current capability make it a highly versatile and reliable choice for numerous digital display applications.
Key Features and Functional Capabilities
Additionally, this impressive 4511 IC provides crucial input controls for enhanced display management. Specifically, it features a Lamp Test (LT) input. Actively grounding this pin illuminates all segments simultaneously, allowing you to quickly verify display integrity. Furthermore, a Blanking Input (BI) is included. This enables you to turn the entire display off, which is useful for dynamic intensity control or power saving via Pulse Width Modulation (PWM). Specifically, the high output source current (up to 25mA per segment at 15V) allows you to drive most standard LED displays directly without needing additional transistors. Transitioning data is smooth and precise.
Applications and Easy Integration
Moreover, integrating the 4511 IC into your digital designs is remarkably straightforward. It connects seamlessly to popular microcontrollers like Arduino or classic logic circuits. For example, you frequently find the 4511 IC used in digital clocks, electronic counters, and instrument panels. Specifically, its standard DIP package ensures compatibility with breadboards and prototypers. Furthermore, the wide supply voltage capability (typically 3V to 18V) guarantees operation across diverse power supply environments. Consequently, you can build reliable and efficient numeric readouts very quickly. Ultimately, the 4511 IC represents the definitive, cost-effective solution for robust 7-segment display control in any professional electronics project.
📊 Verified Data Sheet
- Feature: Specification (Typical CD4511BE)
- Logic Family: CMOS (CD4000 Series)
- Function: BCD-to-7-Segment Latch/Decoder/Driver
- Display Type Supported: Common Cathode LED
- Supply Voltage (VDD): 3V to 18V DC
- Input Voltage (high): > 70% VDD
- Input Voltage (low): < 30% VDD
- Output Source Current (a-g): 25mA (at 15V VDD, VO=13.5V)
- Power Dissipation (Max): 500 mW
- Operating Temperature Range: -55°C to +125°C
- Package Type: PDIP-16 (Standard plastic DIP)
- Key Inputs: BCD (D0-D3), Latch Enable (LE), Lamp Test (LT), Blanking (BI)
External Link: https://www.youtube.com/results?search_query=CD4511+IC+tutorial+Arduino+7+segment
Internal Link: https://electrolik-eg.com/?s=4511+IC&post_type=product
Handling & Safety
Always confirm the rating, polarity and pinout of a integrated circuit before installing it, and avoid exceeding its rated voltage or current. Use proper ESD precautions with sensitive parts. These steps protect your circuit and keep your work safe.
Why Choose This Integrated Circuit
First, it is a widely used part in electronics repair, prototyping and assembly, so it fits into most existing projects easily. Second, the value, rating or pin count is clearly stated, so you can match it to your circuit with confidence. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for repair, prototyping or a finished project.
Usage Tips
Before soldering or installing, match the value, package and pin layout with your circuit diagram. Therefore, you avoid a wrong fit or a damaged board. Also, keep small parts stored in labeled bags so values do not get mixed up during a project. As a result, your build stays organized and easier to troubleshoot.
Good to Know
A well-matched integrated circuit saves time on the job later. Therefore, double-check the value, rating and pin layout against your circuit before relying on it in a final build. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. As a result, your project stays reliable with fewer surprises.
4511 IC (LATCH/DECODER/DRIVER)
4511 IC (LATCH/DECODER/DRIVER) دائرة متكاملة مخصص لـ تنفيذ وظيفة إلكترونية معينة داخل شريحة واحدة مدمجة.
الاستخدامات
- إصلاح وتجميع بوردات الدوائر
- تجربة الدوائر الإلكترونية
- استبدال شريحة تالفة
- مشاريع الإلكترونيات المنزلية
ملاحظات الأمان
تأكد دايمًا من القيمة والقطبية وترتيب الأرجل بتاعة دائرة متكاملة قبل التركيب، وماتتخطاش الجهد أو التيار المسموح بيه. استخدم احتياطات الشحنة الساكنة (ESD) مع القطع الحساسة. الخطوات دي بتحمي دائرتك وتخلي شغلك آمن.
ليه تختار دائرة متكاملة ده
أولاً، قطعة مستخدمة بشكل واسع في إصلاح وتجميع الدوائر الإلكترونية، فتتناسب مع معظم المشاريع بسهولة. ثانيًا، القيمة أو التصنيف أو عدد الأرجل موضحة بدقة، فتقدر تطابقها مع دائرتك بثقة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للإصلاح أو التجربة أو مشروع متكامل.
تقدر تستعرض باقي المكونات الإلكترونية عندنا لمشروعك القادم.
