C3203 Transistor

C3203 Transistor

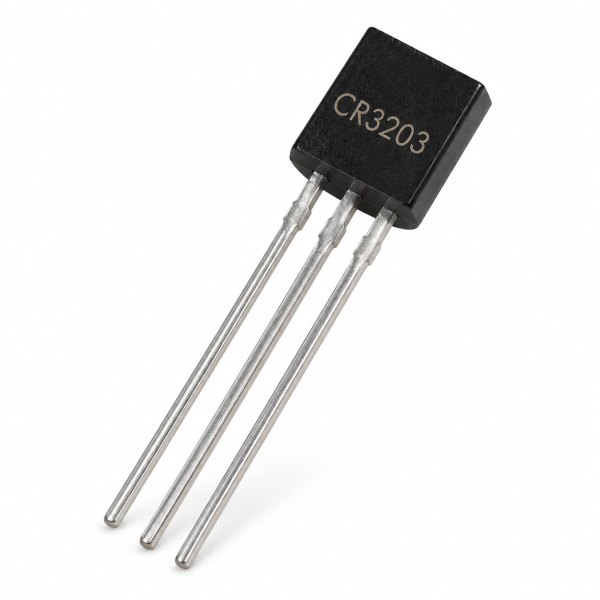

The C3203 Transistor is a small three-lead transistor in a black plastic TO-92 style package. The photo shows the part marked CR3203 on its flat face. As a result, you can match it by the marking when you replace a part on a board.

How the C3203 Transistor Fits Your Project

First, the three legs are long, so you can solder them into a board or a socket. Second, the flat face carries the printed marking you use to identify the part. Because ratings differ between similar parts, read the datasheet before you replace anything. Therefore, match the pin order to your circuit before you power it.

Key Features

• Three-lead transistor
• Black plastic small-signal style package
• Long through-hole legs
• Marking visible on the flat face

Typical Uses

• Replacing a failed transistor
• Repair of audio and power boards
• Prototype and school circuits
• Building small switching circuits

Specifications

• Part: C3203 transistor
• Package: TO-92 style, three leads
• Marking shown in the photo: CR3203
• Mounting: through-hole

The photo shows a single part. Therefore, check the datasheet for voltage and current limits. Also, confirm the pin order, because it can differ between makers.

Ordering the C3203 Transistor from Electrolik

Electrolik ships orders across Egypt, and you can pay cash on delivery. First, compare the photo with your need, because the picture shows what we sell. Second, read the specifications above and match them with your project. If you are unsure about the C3203 Transistor, contact our team before you order. As a result, you avoid a wrong purchase and save time. In addition, we check each item before it leaves the shop. Therefore, you receive the product as pictured, and you can ask us any question after delivery.

Choosing the right part matters, so read the details with care. For example, check the size, the voltage, and the connector type against your device. Also, keep the original packaging for a simple exchange if something does not match. Because our team knows these parts, we answer questions fast on WhatsApp and by phone.

Looking for more options? Browse our full range of transistors triacs & thyristors at Electrolik.

C3203 Transistor

الـ C3203 Transistor ترانزستور صغير بثلاث أرجل وغلاف بلاستيك أسود. الصورة بتوضح الكتابة CR3203 على الوش. وبالتالي تقدر تطابقه بالكتابة لما تستبدل قطعة.

المميزات

• ثلاث أرجل
• غلاف بلاستيك أسود
• أرجل طويلة للحام
• الكتابة ظاهرة على الوش

الاستخدامات

• استبدال ترانزستور تالف
• إصلاح بوردات الصوت والباور
• دوائر تجريبية ومدرسية
• دوائر تشغيل صغيرة

راجع الداتا شيت للجهد والتيار، وتأكد من ترتيب الأرجل.
