AVC DE07015T12U 70×70×15mm 12V 0.7A ( USED LIKE NEW )

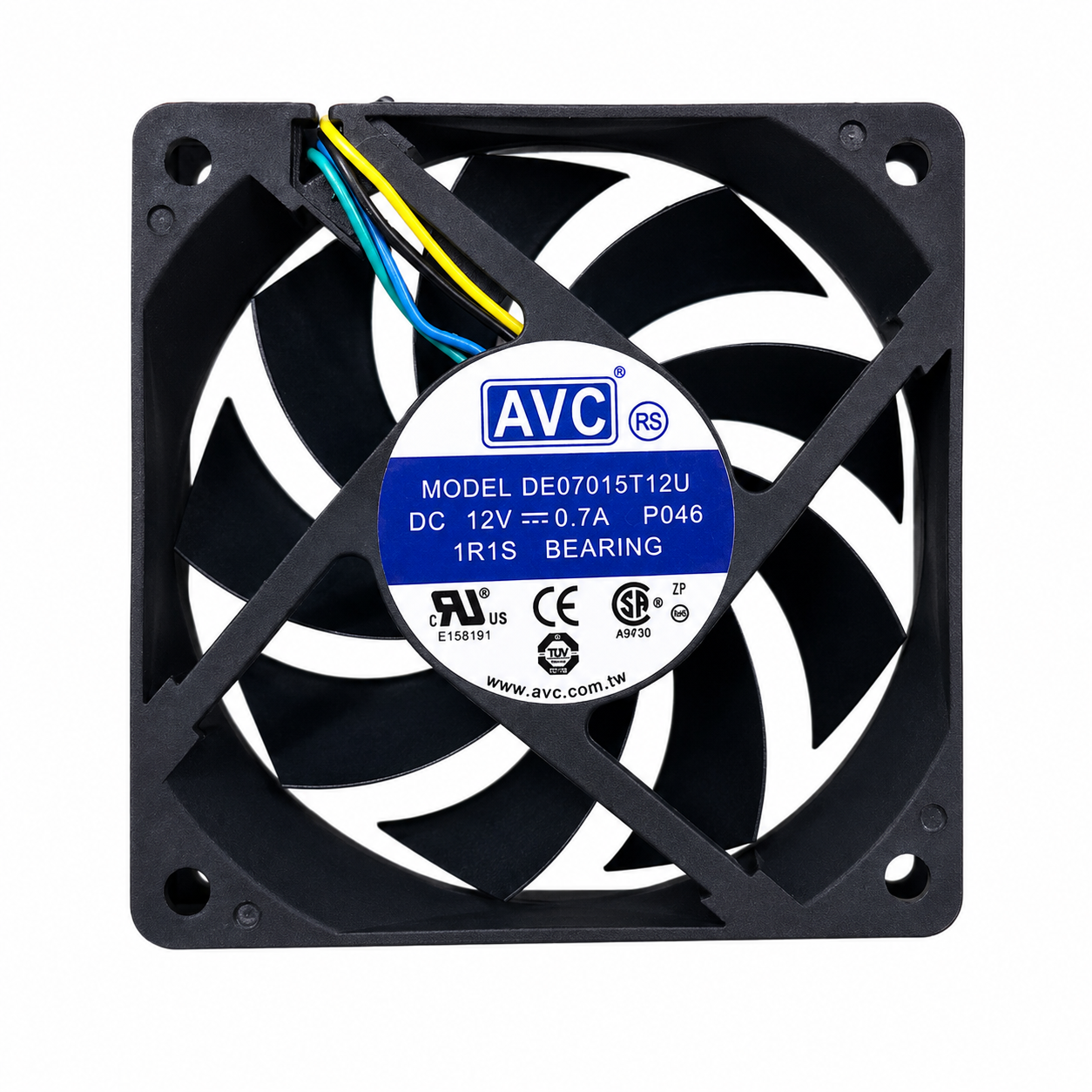

AVC DE07015T12U High-Speed DC Cooling Fan – 12V 0.7A, 70×70×15mm – Used Like New

The AVC DE07015T12U DC Cooling Fan is a compact, high-speed brushless axial fan designed for applications that require strong airflow within a limited installation space. It is commonly used in servers, processors, industrial computers, power supplies, telecommunications equipment, control systems and other electronic devices that generate substantial heat.

The fan operates from a 12V DC power supply and draws up to 0.7A, giving it a maximum calculated power consumption of approximately 8.4W. Its slim 70 × 70 × 15mm dimensions make it suitable for compact equipment where a standard 25mm-thick cooling fan cannot fit.

The DE07015T12U commonly uses a four-wire connection that provides normal power input, rotational-speed monitoring and PWM speed control. This allows compatible equipment to monitor the fan and adjust its speed according to the system temperature or cooling requirements. Published specifications confirm the 12V rating, 0.7A maximum current, 70×70×15mm size and four-wire PWM configuration.

The fan uses a combined one-ball and one-sleeve bearing system, offering dependable performance for continuous equipment cooling. It is more powerful than a normal low-current 70mm computer fan and may produce a noticeable operating sound at full speed.

This product is supplied in used, like-new condition. It has been tested and confirmed to operate correctly. Minor cosmetic marks, dust, wire modifications or signs of previous installation may be present without affecting normal cooling performance.

Key Features

• Original AVC cooling fan
• Model: DE07015T12U
• High-speed brushless axial design
• Rated voltage: 12V DC
• Maximum rated current: 0.7A
• Maximum calculated power: approximately 8.4W
• Compact dimensions: 70 × 70 × 15mm
• Slim 15mm profile
• Four-wire connection
• PWM speed-control support
• Tachometer speed-monitoring output
• One-ball and one-sleeve bearing construction
• Suitable for server and industrial cooling
• Tested and fully functional
• Condition: Used – Like New

Technical Datasheet

The dimensions, electrical rating, bearing arrangement and control functions are confirmed by specialist listings for this exact model.

Some listings quote a reference speed of approximately 5400 RPM and airflow of around 46.06 CFM, but these values have not been confirmed through an official AVC datasheet and may vary depending on the exact production suffix or OEM version.

Typical Four-Wire Connection

Wire colours and pin order can vary between OEM versions. Confirm the actual wiring and connector arrangement before applying power.

Suitable Applications

• Servers and storage systems
• CPU and processor cooling
• Industrial computers
• Telecommunications equipment
• Network switches and routers
• Power supplies
• Industrial control cabinets
• Electronic test equipment
• Amplifiers and audio systems
• Battery chargers
• Inverters and UPS systems
• CNC and automation equipment
• Compact high-performance cooling projects
• Replacement cooling applications

Package Contents

• 1 × AVC DE07015T12U 12V DC Cooling Fan

Condition Notice

This product is used and in like-new working condition. It has been tested and confirmed to operate correctly. It may show minor scratches, dust, shortened wires, connector differences or signs of previous installation.

Please check the product images, connector type, wire length and mounting dimensions before ordering.

Important Usage Notice

This is a relatively high-current cooling fan. Use a regulated 12V DC power source capable of supplying at least 0.7A. Do not power the fan directly from an Arduino, ESP, Raspberry Pi GPIO or another microcontroller output pin.

When electronic switching is required, use a suitable transistor, MOSFET or fan controller.
