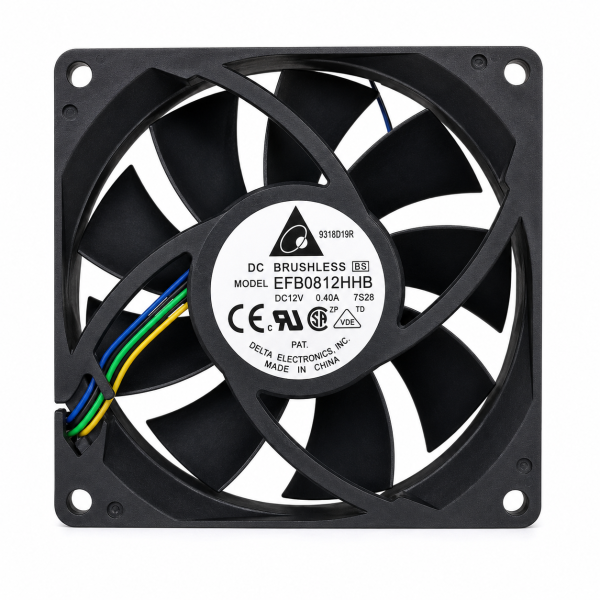

Dc Fan – Delta EFB0812HHB DC Dual Fan12V 0.4A 80x80x15mm ( USED LIKE NEW )
Original price was: 400,00 EGP.100,00 EGPCurrent price is: 100,00 EGP.
Delta EFB0812HHB DC Cooling Fan – 12V 0.4A, 80×80×15mm – Used Like New
The Delta EFB0812HHB DC Brushless Cooling Fan is a compact, high-performance axial fan designed to provide strong and reliable airflow for electronic equipment, computers, servers, power supplies, industrial control systems, communication devices, and other heat-sensitive applications.
Operating at 12V DC, this fan delivers airflow of approximately 48.8 CFM at a speed of around 3800 RPM. Its slim 80 × 80 × 15mm construction makes it especially suitable for equipment with limited installation space where a standard 25mm-thick fan may not fit.
The fan uses a durable ball-bearing system, providing stable rotation, dependable performance, and a long expected service life. Its brushless motor design reduces maintenance requirements and makes it suitable for continuous cooling applications.
This product is supplied in used, like-new condition. It has been inspected and tested to confirm proper operation. Minor cosmetic marks, dust, or signs of previous installation may be present without affecting normal cooling performance.
Key Features
- Original Delta Electronics cooling fan
- Model: EFB0812HHB
- DC brushless axial-flow design
- Rated voltage: 12V DC
- Rated current: 0.4A
- Slim 80 × 80 × 15mm dimensions
- High airflow of approximately 48.8 CFM
- Approximate operating speed of 3800 RPM
- Ball-bearing motor construction
- Compact design for space-limited equipment
- Two-wire power connection
- Locked-rotor protection
- Suitable for continuous cooling applications
- Tested and fully functional
- Condition: Used – Like New
Technical Datasheet
| Specification | Value |
|---|---|
| Manufacturer | Delta Electronics |
| Model Number | EFB0812HHB |
| Fan Type | DC Brushless Axial Fan |
| Series | EFB |
| Rated Voltage | 12V DC |
| Rated Current | 0.4A |
| Typical Operating Current | Approximately 0.33A |
| Power Consumption | Approximately 3.96W |
| Dimensions | 80 × 80 × 15mm |
| Fan Thickness | 15mm |
| Approximate Speed | 3800 RPM |
| Maximum Airflow | 48.8 CFM / approximately 1.38m³/min |
| Maximum Static Pressure | Approximately 4.3mmH₂O / 0.171inH₂O |
| Noise Level | Approximately 41dB(A) |
| Bearing Type | Ball Bearing |
| Connection Type | Two wire leads |
| Positive Wire | Red |
| Negative Wire | Black |
| Operating Temperature | Approximately -10°C to +70°C |
| Frame Material | Plastic |
| Impeller Material | Plastic |
| Flammability Rating | UL 94V-0 |
| Approximate Weight | 67g |
| Expected Life | Up to 70,000 hours at 40°C |
| Protection Feature | Locked-rotor protection |
| Condition | Used – Like New |
The manufacturer and distributor specifications confirm the fan’s 12V rating, 80 × 80 × 15mm size, 3800 RPM speed, 48.8 CFM airflow, ball bearing, 41dB(A) noise level, and approximately 3.96W power consumption. The 0.4A shown on the fan label is the rated or maximum current, while some distributor records list approximately 0.33A operating current.
Wire Connection
| Wire Color | Function |
|---|---|
| Red | Positive power input, +12V DC |
| Black | Negative or ground |
The standard EFB0812HHB version uses two power wires. Connector style may vary depending on the equipment from which the used fan was removed.
Suitable Applications
- Desktop and industrial computers
- Servers and network equipment
- Power supplies and inverters
- Industrial control panels
- Telecommunications equipment
- Amplifiers and audio equipment
- Battery chargers
- Electronic test equipment
- 3D printers and CNC machines
- LED cooling systems
- DIY electronics projects
- Replacement cooling applications
Package Contents
- 1 × Delta EFB0812HHB 12V DC Cooling Fan
When sold as a dual-fan assembly:
- 1 × Assembly containing two Delta EFB0812HHB cooling fans
Condition Notice
This is a used, like-new product. The fan has been tested and confirmed to operate correctly. It may show minor cosmetic marks, dust, shortened wires, connector differences, or signs of previous installation. These signs do not normally affect its cooling performance.
Please check the product images, connector type, wire length, and mounting dimensions before ordering.
