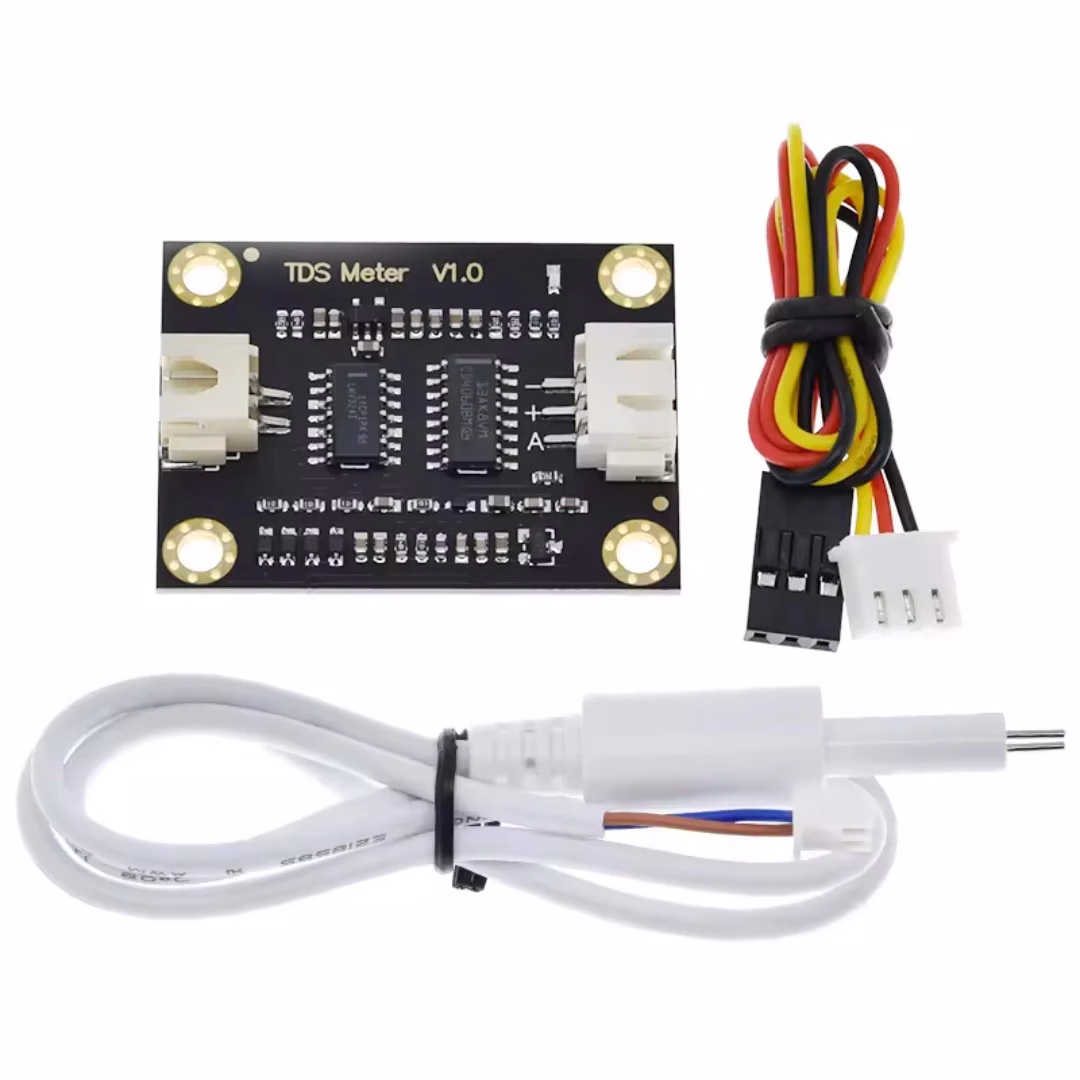

TDS Sensor with Board Module V1.0

 is a high-performance module designed for measuring the Total Dissolved Solids (TDS) in water, giving accurate insights into water purity and quality. It’s widely used in water filtration systems, hydroponics, aquariums, and environmental monitoring. This TDS Sensor with Board Module V1.0 helps determine the concentration of soluble salts and minerals in the water, which directly affects electrical conductivity and purity levels.

Key Features:

• High Accuracy and Sensitivity:
   provides precise readings, capable of detecting even small changes in dissolved solid concentration. It converts the analog signal into a digital output, ensuring reliable measurements.

• Wide Measurement Range:
  Designed to measure TDS values from 0 to 1000 ppm (parts per million), this sensor is perfect for applications that require monitoring varying water quality levels.

• Compatible with Multiple Platforms:
  Works seamlessly with Arduino, ESP32, and Raspberry Pi boards, making integration simple for developers and engineers.

• Easy to Calibrate and Use:
  The included TDS meter board makes it straightforward to calibrate and obtain stable readings. Simply connect the probe and read values via an analog pin.

• Durable and Long-Lasting Probe:
  The waterproof TDS probe is made of high-quality materials that resist corrosion and wear, ensuring long-term performance even in continuous monitoring environments.

• Low Power Consumption:
  Optimized for energy-efficient performance, this TDS Sensor with Board Module V1.0 is ideal for portable or low-power systems.

Applications:

• Water purification and filtration systems

• Hydroponics nutrient monitoring

• Environmental and wastewater testing

• Aquaculture and aquarium management

• Laboratory water analysis

Technical Specifications (Datasheet Overview):

• Input Voltage: 3.3V – 5V

• Output Type: Analog

• Measuring Range: 0 – 1000 ppm

• Temperature Range: 0°C – 80°C

• Interface Type: PH2.0 connector

• Dimensions: 42mm x 32mm (Board), 60cm (Probe cable)

Advantages:

• Easy integration with microcontrollers

• Stable output with minimal signal noise

• Suitable for continuous and real-time water quality monitoring

• Compact, lightweight, and reliable

Whether you are building a DIY hydroponic system, testing aquarium water, or developing a professional water monitoring solution, the TDS Sensor with Board Module V1.0 is the perfect choice for accurate and consistent results.

Handling & Safety

Always power the water/soil sensor within its rated voltage range and double-check pin connections before powering up. Avoid touching the circuit while it is live, and keep it away from moisture and static discharge during handling. These steps protect the part from damage.

Why Choose This Water/Soil Sensor

First, it is a widely used part in the maker community, so documentation, libraries and example wiring diagrams are easy to find. Second, it works with common microcontroller platforms, so you can get it running quickly. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for learning, prototyping or finishing a project.

Wiring Tips

Before final assembly, test the part on a breadboard if you are unsure of the wiring. Therefore, you avoid damaging your main circuit during first power-up. Also, keep connections short and secure to reduce noise and reading errors. In addition, label each wire during assembly so future troubleshooting is easier. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched water/soil sensor saves time on debugging later. Therefore, double-check the pin layout and voltage requirements against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.

TDS Sensor with Board Module V1.0

TDS Sensor with Board Module V1.0 حساس مياه/تربة مخصص لـ قياس جودة المياه أو رطوبة التربة داخل الدائرة.

الاستخدامات

• أنظمة الري الأوتوماتيكي للنباتات
• مراقبة جودة المياه
• مشاريع الزراعة المائية والصوبات
• مراقبة أحواض السمك

ملاحظات الأمان

شغّل حساس مياه/تربة دايمًا في حدود الجهد المقنن ليه، وراجع توصيلات الأطراف قبل التشغيل. تجنب لمس الدائرة وهي شغالة، وخليها بعيدة عن الرطوبة والشحنات الساكنة أثناء التعامل معاها. هذه الخطوات بتحمي القطعة من التلف.

ليه تختار حساس مياه/تربة ده

أولاً، قطعة مستخدمة بشكل واسع في مجتمع الصناع، فتلاقي شروحات ومكتبات وأمثلة توصيل بسهولة. ثانيًا، بيشتغل مع منصات المتحكمات الشائعة، فتقدر تشغّله بسرعة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للتعلم أو التجربة أو إنهاء مشروعك.

تقدر تستعرض باقي الحساسات والموديولات عندنا لمشروعك القادم.
