Network Resistor 10k ohm 4816P-AGC-103 SMD

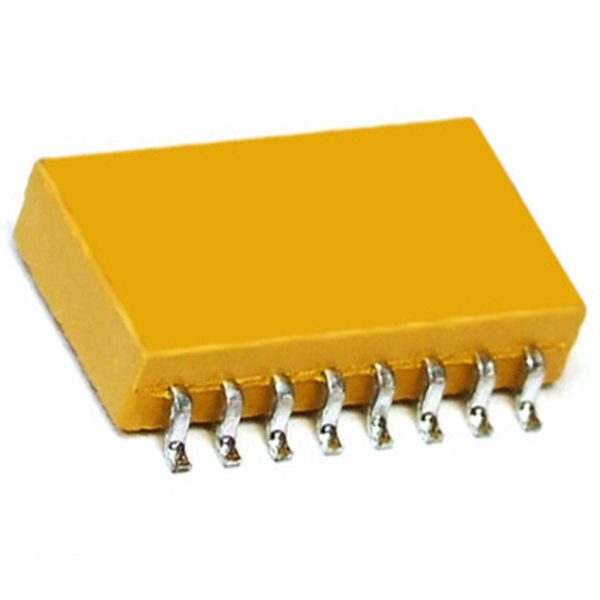

Network Resistor 10k ohm 4816P-AGC-103 SMD The 4816P-AGC-103 is a surface-mount bussed resistor network featuring multiple 10kΩ thick-film resistors integrated into a compact SOIC-16 package. This resistor array is designed to reduce PCB space usage, simplify circuit assembly, and minimize the number of discrete resistor components required in digital and embedded electronic systems. The bussed configuration connects one side of all resistor elements to a common pin, making the device suitable for pull-up, pull-down, line termination, and signal conditioning applications. Features: Bussed schematic with 8 resistors arranged in 4 pairs. Medium body SOIC package for compact SMT designs. Reflow solderable for modern assembly processes. Compatible with automatic surface mounting equipment. Thick film resistive elements for stable performance. Low temperature coefficient of ±100ppm/°C. Specifications: Parameter Value Type Thick Film Resistor Network Schematic Bussed (2 Circuit) Number of Resistors 8 (arranged in 4 bussed pairs) Resistance Value 10KΩ (10,000Ω) Tolerance ±2% (Standard), ±1% (F) and ±0.5% (D) available Power Rating per Element 0.16W at +70°C Package Power Rating (Max at +70°C) 1.28W Temperature Coefficient (TCR) ±100ppm/°C (50Ω and above) TCR Tracking ±50ppm/°C maximum Maximum Operating Voltage 50V Operating Temperature Range -55°C to +125°C Storage Temperature Range -55°C to +150°C Insulation Resistance >10,000MΩ minimum Dielectric Withstanding Voltage 200VRMS Lead Coplanarity 0.102mm (0.004″) max. at mounting Package Type SOIC-16 (Small Outline Integrated Circuit) Pin Count 16 Mounting Style Surface Mount (SMD)
