Heart Rate Monitor AD8232

The Heart Rate Monitor AD8232 is a compact and precise module designed to measure the heart’s electrical activity with exceptional accuracy. It converts biopotential signals into clean ECG data, making it perfect for health monitoring, research, and educational projects.

Key Features and Benefits

• The AD8232 Heart Rate Monitor provides a stable and clear analog output for easy ECG signal analysis.

• Moreover, it includes a powerful amplifier that enhances weak bio-signals for better performance.

• To ensure high accuracy, its filter removes unwanted noise and stabilizes the output.

• Additionally, an LED indicator flashes with every heartbeat, giving real-time visual feedback.

• Because of its reliable performance, it’s widely used in wearable medical devices and DIY health systems.

Easy Setup and Connectivity

• The board offers nine labeled pins — SDN, LO+, LO-, OUTPUT, 3.3V, and GND — to simplify wiring and operation.

• Furthermore, it includes RA (Right Arm), LA (Left Arm), and RL (Right Leg) terminals to connect biomedical electrodes easily.

• Since the module is lightweight and compact, it fits perfectly in portable or wearable projects.

• Also, it works seamlessly with Arduino, Raspberry Pi, and other microcontrollers, saving time and effort during setup.

Applications

• The Heart Rate Monitor AD8232 is ideal for heartbeat tracking, ECG signal recording, and medical research.

• In addition, students can use it to study human bio-signals and practice data interpretation.

• Developers can also integrate it into fitness trackers, health monitors, and IoT projects.

Why Choose the AD8232

The AD8232 Heart Rate Monitor combines precision, flexibility, and efficiency. Therefore, it’s perfect for anyone seeking dependable ECG readings in both educational and professional applications. With its easy setup and consistent performance, it’s a must-have for biomedical innovation.

Note: This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions

Pin Description of the AD8232 ECG Module

Pin Name	Description
GND	Power Supply Ground
3.3v	Power Supply 3.3v
Output (ADC)	Operational Amplifier Output. The fully conditioned heart rate signal is present at this output. OUT can be connected to the input of an ADC.
LO-	Leads Off Comparator Output. In dc leads off detection mode, LO− is high when the electrode to −IN is disconnected, and it is low when connected
LO+	Leads Off Comparator Output. In dc leads off detection mode, LOD+ is high when the +IN electrode is disconnected, and it is low when connected
	Shutdown Control Input. Drive SDN low to enter the low power shutdown mode.
RA (Right Arm)	RED Biomedical electrode pad RA(input). Instrumentation Amplifier Negative Input. −IN is typically connected to the right arm (RA) electrode
LA (Left Arm)	YELLOW Biomedical electrode pad LA(input). Instrumentation Amplifier Positive Input. +IN is typically connected to the left arm (LA) electrode
RL(Right Leg)	GREEN Biomedical electrode pad RL(input). Right Leg Drive Output. Connect the driven electrode (typically, right leg) to the RLD pin.
3.5mm ECG Biomedical Electrode Connector Jack	Combine Biomedical Electrode pad Connector of RA, LA, RL

The pinout can be easily seen in the Board Legend.

An example of the arrangement of the electrodes on the body.

Features of the AD8232 ECG Module

• Fully integrated single-lead ECG front end
• Common-mode rejection ratio: 80 dB (dc to 60 Hz)
• Two or three-electrode configurations
• Qualified for automotive application
• Single-supply operation: 2.0 V to 3.5
• Fast restore feature improves filter settling
• Size: 3.5cm x 2.8cm

Useful links

• Datasheet (AD8232)
• GitHub (Design Files & Example Code)

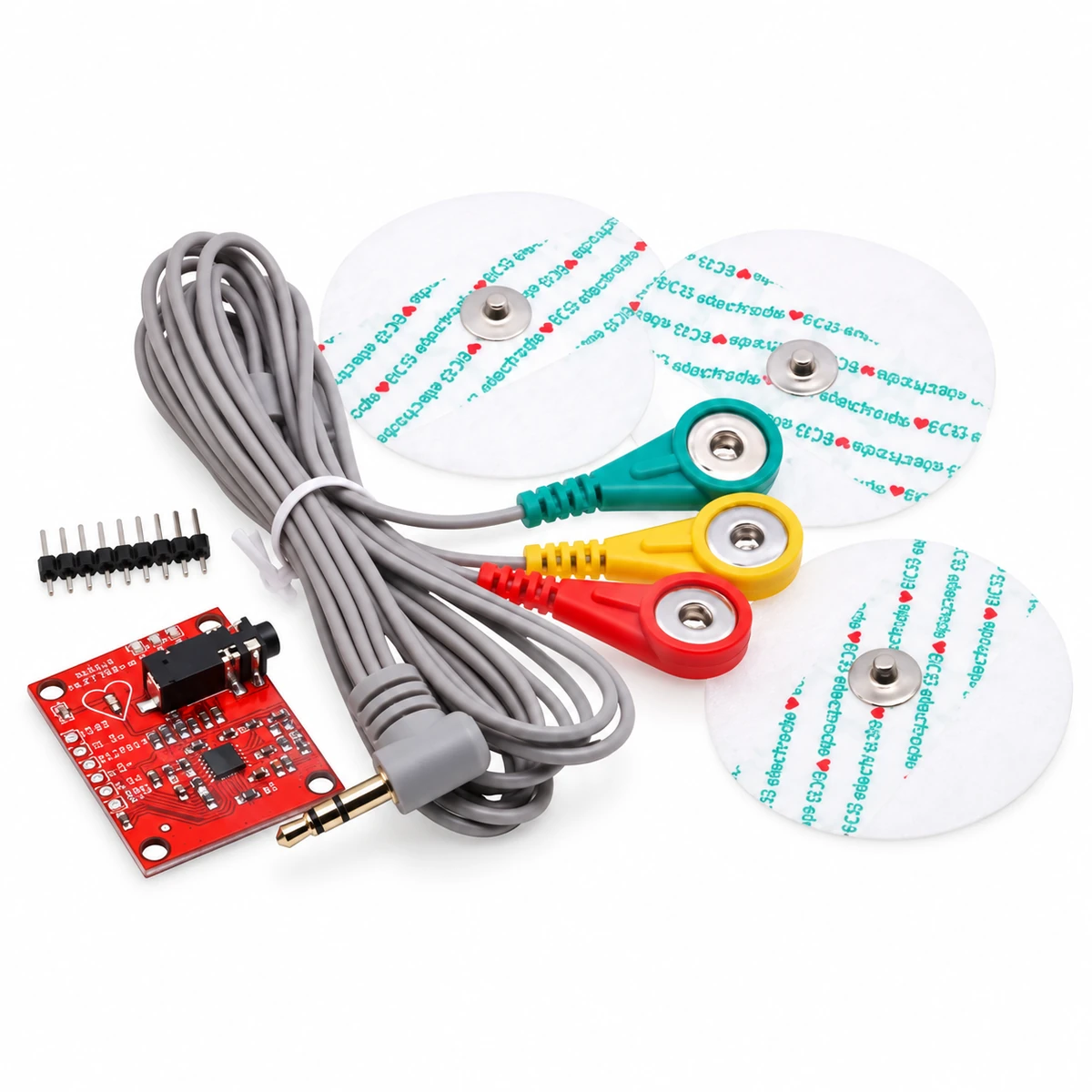

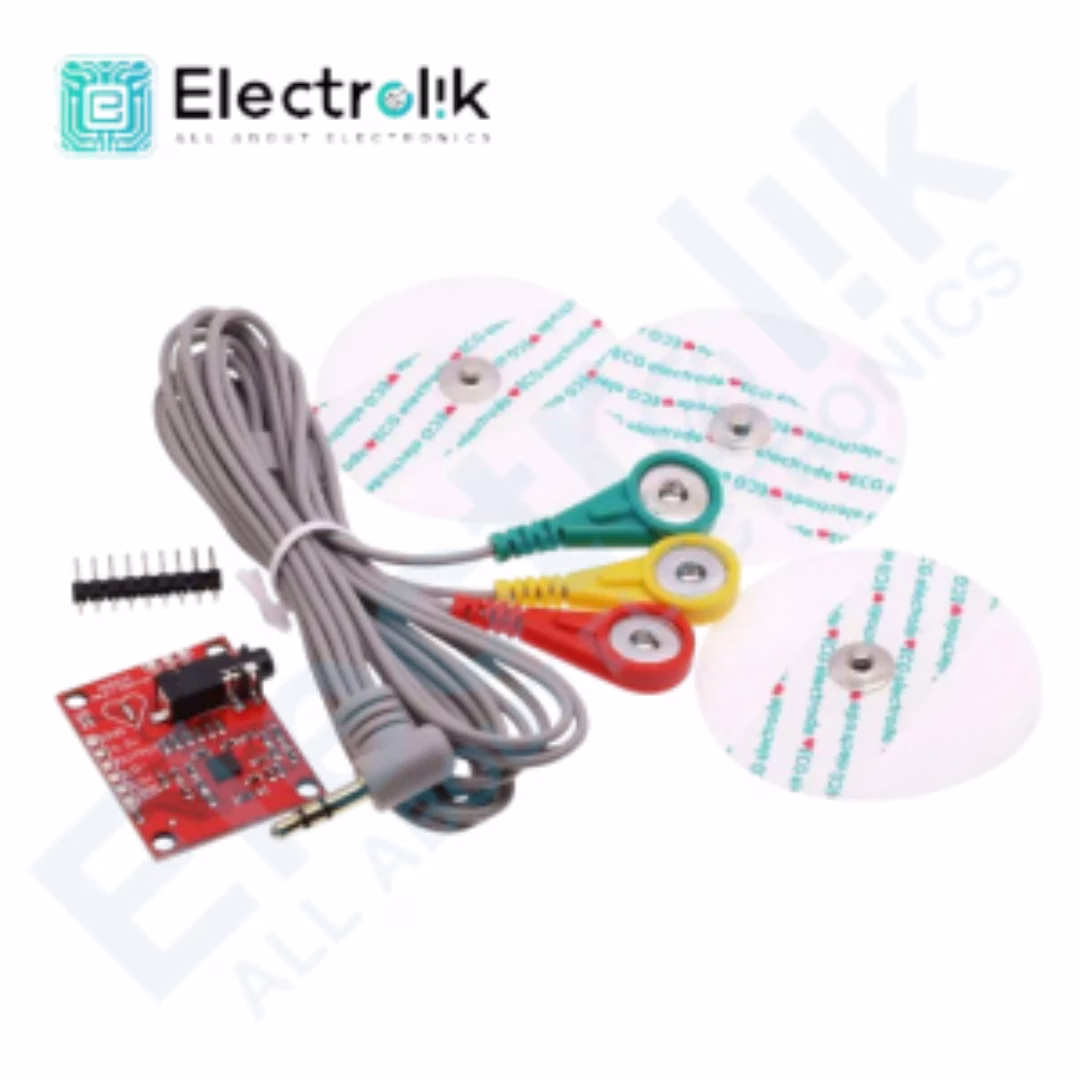

Package Includes:

• 1 x Ecg module AD8232 heart ECG monitoring sensor module.
• Sensor Cable – Electrode Pads (3 Connector)
• 3 x Electrode Pads
