Arduino Mega 2560 Rev3 Development Board

Arduino Mega 2560 Rev3 Development Board

The Arduino Mega 2560 Rev3 Development Board is built around the ATmega2560 chip. It is one of the larger Arduino boards and offers many input and output pins. As a result, it suits projects that outgrow a smaller board.

Arduino Mega 2560 Rev3 Layout

First, the board has a USB Type-B port and a DC power jack on the left side. Second, the pin headers are labeled for power, analog input A0 to A15, and digital pins up to 53. Third, the silkscreen marks PWM and Communication pins, plus TX and RX pins. Because the board has an ICSP header and a reset button, programming and restarting are simple. In addition, an ON LED and TX and RX LEDs show the status. Therefore, this board fits robots, 3D printer electronics, and large sensor projects.

Key Features

• ATmega2560 microcontroller
• USB Type-B port and DC power jack
• Analog inputs A0 to A15
• Digital pins up to 53
• ICSP header and reset button

Typical Uses

• Large sensor and display projects
• Robots with many motors
• 3D printer control boards
• Learning and prototyping with Arduino

Specifications

• Board: Arduino Mega 2560 Rev3
• Chip: ATmega2560
• USB: Type-B
• Power: DC jack and USB
• Pins: digital 0 to 53, analog A0 to A15

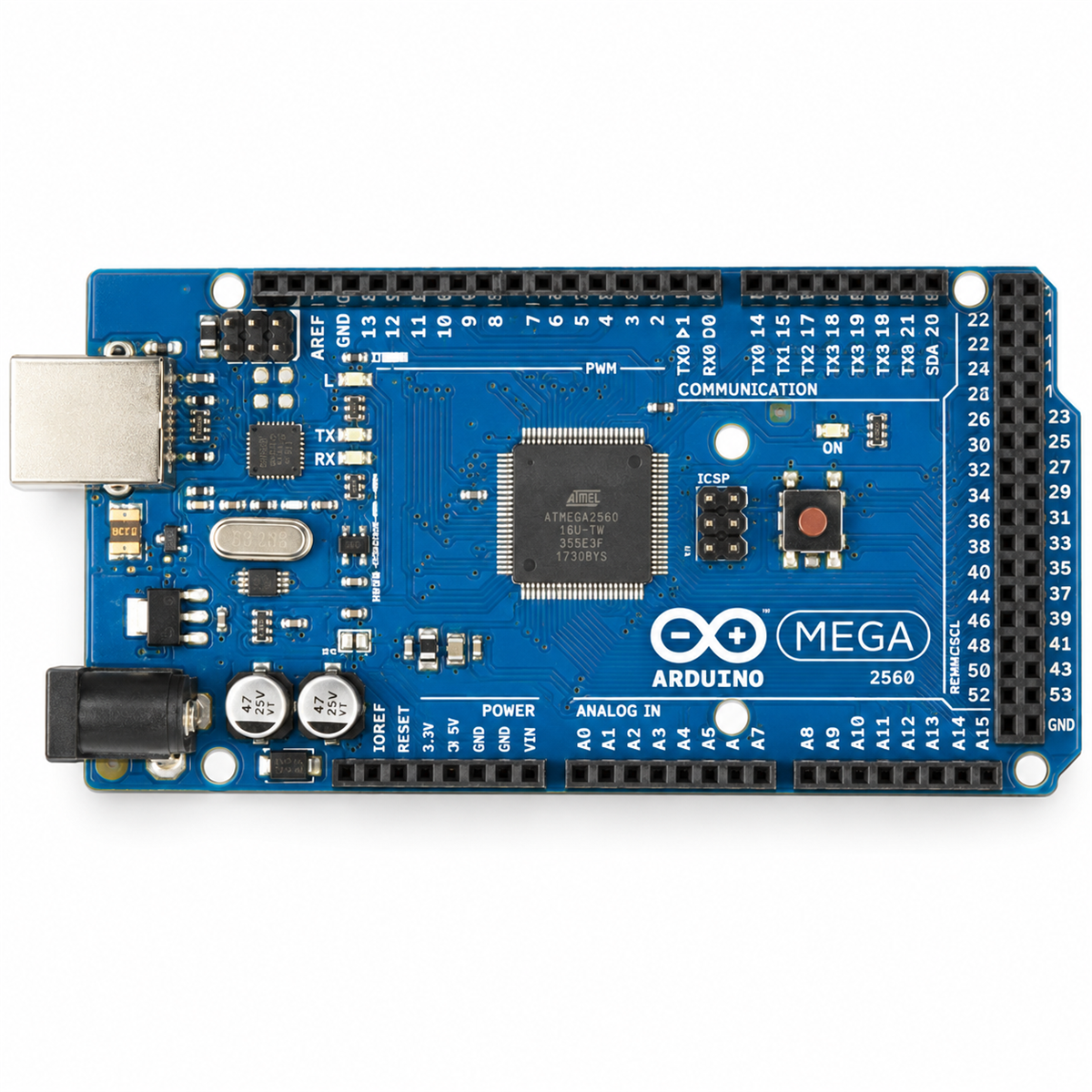

The photo shows the top of the board. Therefore, the USB cable is not shown in the picture. Also, install the Arduino IDE to program the board.

Ordering Arduino Mega 2560 Rev3 Development Board from Electrolik

Electrolik ships orders across Egypt, and you can pay cash on delivery. First, compare the photo with your need, because the picture shows exactly what we sell. Second, read the specifications above and match them with your project or space. If you are unsure about the Arduino Mega 2560 Rev3 Development Board, contact our team before you order. As a result, you avoid a wrong purchase and save time. In addition, we check each item and its packaging before it leaves the shop. Therefore, you receive the product as pictured, and you can return to us with any question after delivery.

Looking for more options? Browse our full range of Arduino boards at Electrolik.

Arduino Mega 2560 Rev3 Development Board

الـ Arduino Mega 2560 Rev3 Development Board مبني على شريحة ATmega2560. وهو من أكبر بوردات أردوينو ومعاه أرجل إدخال وإخراج كتير. وبالتالي بيناسب المشاريع اللي بتكبر على البورد الصغير.

المميزات

• متحكم ATmega2560
• منفذ USB Type-B ومقبس طاقة DC
• مداخل تناظرية من A0 لـ A15
• أرجل رقمية لحد 53
• هيدر ICSP وزر ريست

الاستخدامات

• مشاريع حساسات وشاشات كبيرة
• روبوتات بموتورات كتير
• بوردات طابعات ثلاثية الأبعاد
• التعلم والتجارب

كابل USB مش ظاهر في الصورة. ونزّل Arduino IDE عشان تبرمج البورد.
