4016 Quad Analog Switch Quad Multiplexer

4016 Quad Analog Switch Quad Multiplexer

Overview

• 4016 Quad Analog Switch Quad Multiplexer is a CMOS integrated circuit designed to control and route both analog and digital signals with high efficiency. The IC integrates four independent bilateral analog switches in a single package, allowing precise signal selection and isolation using simple control logic. This structure makes it a fundamental building block in mixed-signal electronic designs.

• Designers rely on this IC to manage multiple signal paths without introducing complex circuitry. Its bilateral switching capability allows signals to pass in either direction, which increases flexibility in circuit layouts.

Switching Performance

• 4016 Quad Analog Switch Quad Multiplexer delivers stable and predictable switching behavior when operating within its specified voltage range. The IC supports smooth signal transfer with minimal distortion, which makes it suitable for audio signals, sensor outputs, and logic-level data.

• The bilateral nature of each switch allows handling of AC and DC signals without polarity limitations. This advantage proves useful in applications that require flexible signal routing.

Power Efficiency and Design Benefits

• The IC uses CMOS technology, which ensures very low power consumption and excellent noise immunity. This characteristic makes it ideal for battery-powered systems and low-energy electronic designs.

• Designers benefit from its wide supply voltage range, which simplifies integration into different electronic systems without additional power conditioning.

Multiplexing and Control Capabilities

• 4016 Quad Analog Switch Quad Multiplexer functions effectively as a quad multiplexer by enabling controlled selection of signal paths. Engineers can use it to share processing stages among multiple signals, which reduces system complexity and component count.

• The IC offers consistent channel behavior, helping maintain signal integrity and timing accuracy across all four switches.

Applications

• Analog and digital signal routing
• Audio switching circuits
• Sensor multiplexing systems
• Sample-and-hold circuits
• Data acquisition and test equipment
• Educational and training electronics kits

• Engineers, students, and hobbyists use this IC for both prototyping and final designs due to its predictable and reliable behavior.

Reliability and Long-Term Operation

• The IC supports continuous operation in consumer and industrial environments. Its robust CMOS construction ensures stable electrical characteristics over time.

• Designers trust this IC for long-term applications where dependable signal control is essential.

Datasheet – Technical Specifications

• Device Type: Quad Analog Switch / Quad Multiplexer IC

• Logic Family: CMOS

• Number of Switches: 4 independent bilateral switches

• Signal Type: Analog and digital

• Supply Voltage Range: Typically ٣ V to ١٥ V

• Control Inputs: CMOS-compatible logic

• ON Resistance: Moderate and stable

• Power Consumption: Very low static dissipation

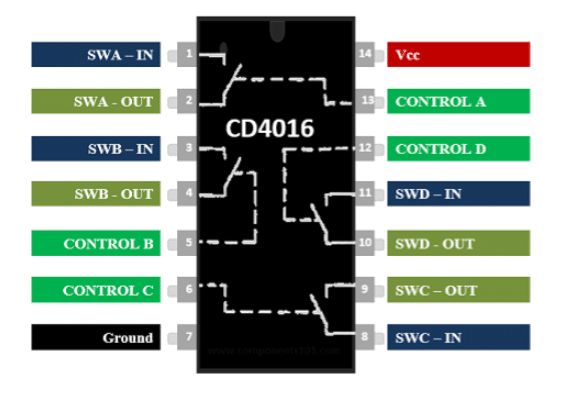

• Package Type: DIP-14 (Dual In-Line Package)

• Operating Temperature: Suitable for consumer and industrial electronics

• Typical Uses: Signal routing, multiplexing, audio and data switching
