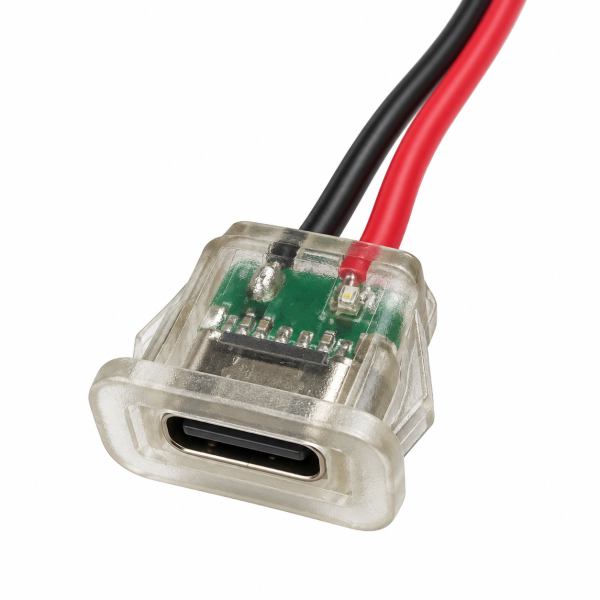

USB Power Outlet Type-C Female 2P Charger Panel Socket Wire

USB Power Outlet Type-C Female 2P Charger Panel Socket Wire

socket delivers a compact and efficient charging interface for your custom panel installations. Specifically, this 2-pin (2P) configuration simplifies power delivery for DIY electronics, custom charging stations, and hardware repairs.

Robust Performance and High Conductivity

This socket utilizes high-grade, heat-resistant materials to ensure long-term reliability. Consequently, it maintains a stable connection even during high-current charging sessions. Furthermore, the female Type-C interface adopts the latest reversible plug standards, which provides a modern user experience for any integrated device.

Effortless DIY Integration

Additionally, the 2-pin solder pads offer a straightforward wiring process for any builder. Specifically, this connector excels in 5V power supply applications where you prioritize high-speed charging over data transfer. Moreover, the slim profile fits perfectly into tight enclosures and adds a professional finish to your custom projects.

Verified Data Sheet:USB Power Outlet Type-C Female 2P Charger Panel Socket Wire

• Feature: Specification
• Connector Type: USB 3.1 Type-C Female
• Pin Configuration: 2-Pin (VCC, GND)
• Rated Voltage: 5V / 12V / 20V DC
• Rated Current: Up to 3A
• Contact Resistance: ≤ 40mΩ
• Insulation Resistance: ≥ 100MΩ
• Mounting Type: Panel Mount / Solder Lug
• Body Material: Stainless Steel / High-Temp Plastic

USB Power Outlet Type-C Female 2P Charger Panel Socket : usb-type-c-female-panel-mount-socket-2p

Handling & Safety

Always confirm the rating, polarity and pinout of a connector socket before installing it, and avoid exceeding its rated voltage or current. Use proper ESD precautions with sensitive parts. These steps protect your circuit and keep your work safe.

Why Choose This Connector Socket

First, it is a widely used part in electronics repair, prototyping and assembly, so it fits into most existing projects easily. Second, the value, rating or pin count is clearly stated, so you can match it to your circuit with confidence. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for repair, prototyping or a finished project.

Usage Tips

Before soldering or installing, match the value, package and pin layout with your circuit diagram. Therefore, you avoid a wrong fit or a damaged board. Also, keep small parts stored in labeled bags so values do not get mixed up during a project. As a result, your build stays organized and easier to troubleshoot.

Good to Know

A well-matched connector socket saves time on the job later. Therefore, double-check the value, rating and pin layout against your circuit before relying on it in a final build. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. As a result, your project stays reliable with fewer surprises.

USB Power Outlet Type-C Female 2P Charger Panel Socket Wire

USB Power Outlet Type-C Female 2P Charger Panel Socket Wire مقبس توصيل مخصص لـ استقبال قابس أو مكون مطابق لإتمام التوصيلة.

الاستخدامات

• توصيلات اللوحات والصناديق
• توصيلات الإلكترونيات المنزلية
• استبدال مقبس تالف
• توصيلات الكابل والمكونات العامة

ملاحظات الأمان

تأكد دايمًا من القيمة والقطبية وترتيب الأرجل بتاعة مقبس توصيل قبل التركيب، وماتتخطاش الجهد أو التيار المسموح بيه. استخدم احتياطات الشحنة الساكنة (ESD) مع القطع الحساسة. الخطوات دي بتحمي دائرتك وتخلي شغلك آمن.

ليه تختار مقبس توصيل ده

أولاً، قطعة مستخدمة بشكل واسع في إصلاح وتجميع الدوائر الإلكترونية، فتتناسب مع معظم المشاريع بسهولة. ثانيًا، القيمة أو التصنيف أو عدد الأرجل موضحة بدقة، فتقدر تطابقها مع دائرتك بثقة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للإصلاح أو التجربة أو مشروع متكامل.

تقدر تستعرض باقي المكونات الإلكترونية عندنا لمشروعك القادم.
