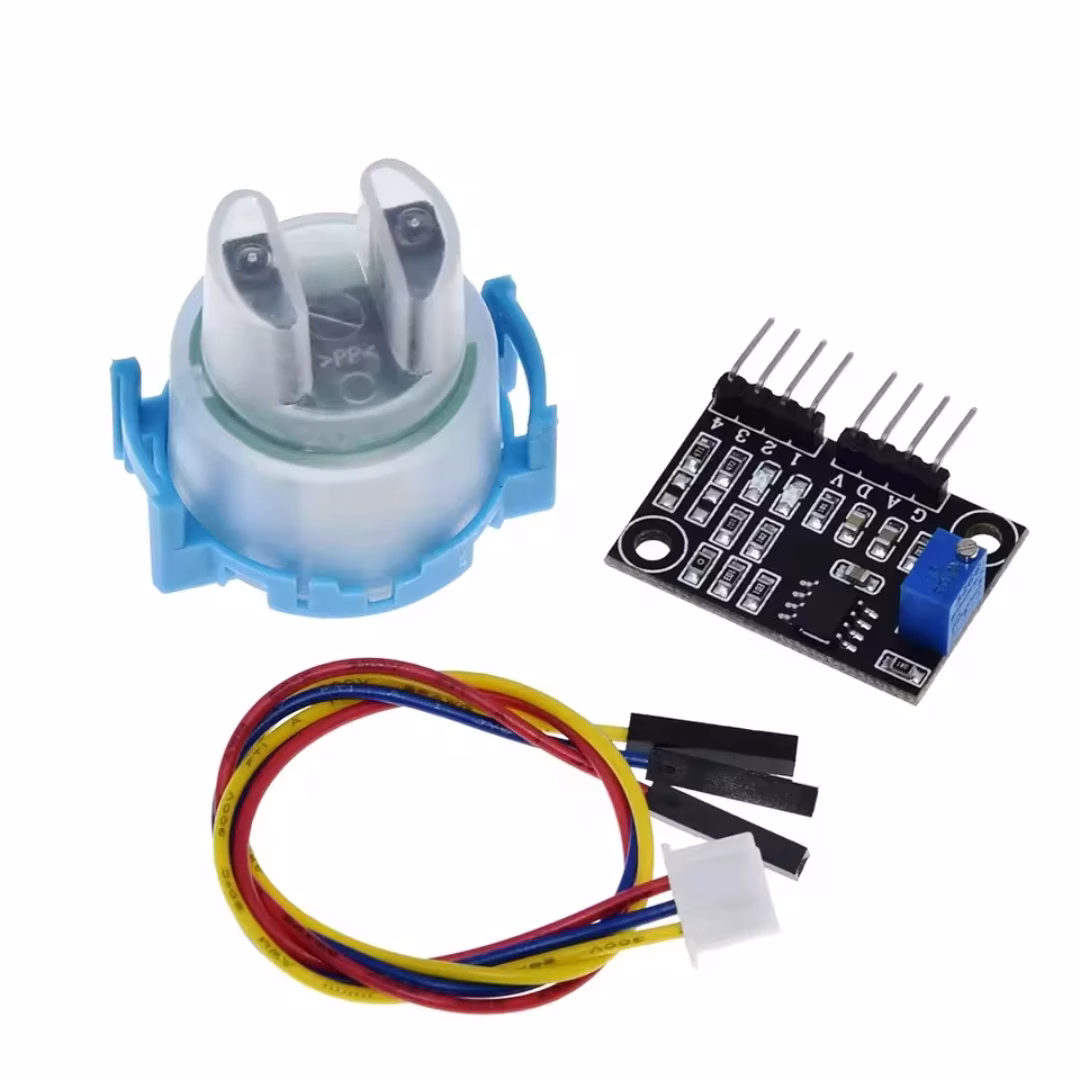

Turbidity Sensor with Board Module

 is an advanced and reliable device designed to measure the clarity or cloudiness of water. It is widely used in environmental monitoring, laboratory experiments, and filtration systems to detect suspended particles that affect water quality. This sensor ensures accurate and stable readings, making it a vital tool for any project requiring liquid transparency measurement.

Key Features:

• High Sensitivity and Accuracy:
   provides precise detection of water turbidity by analyzing how light is scattered by particles. Furthermore, its advanced optical system minimizes interference, ensuring consistent performance.

• Dual Output Options:
  The module supports both analog and digital outputs, allowing you to connect it easily to Arduino, Raspberry Pi, or other controllers. Additionally, this flexibility makes it suitable for both basic and complex monitoring systems.

• Integrated Amplifier Circuit:
  It features a built-in amplifier that enhances the signal strength and improves noise resistance. Therefore, even in unstable environments, the sensor maintains accuracy and reliability.

• Versatile Applications:
  You can use this module in various applications such as water purification, aquaculture, industrial processing, and environmental testing. Moreover, it can be incorporated into smart systems that require automatic water quality analysis.

• Easy Calibration and Setup:
  The sensor board allows straightforward calibration using clear water as a reference. In addition, its plug-and-play interface makes installation fast and beginner-friendly.

Technical Specifications (Datasheet Summary):

• Operating Voltage: 5V DC

• Output Type: Analog & Digital

• Detection Range: 0–1000 NTU

• Current Consumption: ≈30mA

• Cable Length: ~1 meter

• Operating Temperature: 0°C – 80°C

• Material: Transparent optical housing

How It Works:

The Turbidity Sensor with Board Module measures the scattering of light as it passes through a liquid sample. When the concentration of suspended particles increases, more light is scattered, and the sensor outputs a corresponding analog signal. Consequently, users can monitor water quality levels in real time through a connected microcontroller.

Advantages:

• Compact and durable design.

• Energy efficient and low maintenance.

• Provides stable and repeatable readings.

• Perfect for both DIY and industrial projects.

In conclusion, the Turbidity Sensor with Board Module is a dependable and efficient choice for water clarity measurement. It combines precision, versatility, and simplicity — making it an excellent component for engineers, hobbyists, and researchers alike.

Datasheet Included: Detailed pinout, calibration steps, and Arduino example code are provided for quick setup and accurate testing.

Handling & Safety

Always power the water/soil sensor within its rated voltage range and double-check pin connections before powering up. Avoid touching the circuit while it is live, and keep it away from moisture and static discharge during handling. These steps protect the part from damage.

Why Choose This Water/Soil Sensor

First, it is a widely used part in the maker community, so documentation, libraries and example wiring diagrams are easy to find. Second, it works with common microcontroller platforms, so you can get it running quickly. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for learning, prototyping or finishing a project.

Wiring Tips

Before final assembly, test the part on a breadboard if you are unsure of the wiring. Therefore, you avoid damaging your main circuit during first power-up. Also, keep connections short and secure to reduce noise and reading errors. In addition, label each wire during assembly so future troubleshooting is easier. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched water/soil sensor saves time on debugging later. Therefore, double-check the pin layout and voltage requirements against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.

Turbidity Sensor with Board Module

Turbidity Sensor with Board Module حساس مياه/تربة مخصص لـ قياس جودة المياه أو رطوبة التربة داخل الدائرة.

الاستخدامات

• أنظمة الري الأوتوماتيكي للنباتات
• مراقبة جودة المياه
• مشاريع الزراعة المائية والصوبات
• مراقبة أحواض السمك

ملاحظات الأمان

شغّل حساس مياه/تربة دايمًا في حدود الجهد المقنن ليه، وراجع توصيلات الأطراف قبل التشغيل. تجنب لمس الدائرة وهي شغالة، وخليها بعيدة عن الرطوبة والشحنات الساكنة أثناء التعامل معاها. هذه الخطوات بتحمي القطعة من التلف.

ليه تختار حساس مياه/تربة ده

أولاً، قطعة مستخدمة بشكل واسع في مجتمع الصناع، فتلاقي شروحات ومكتبات وأمثلة توصيل بسهولة. ثانيًا، بيشتغل مع منصات المتحكمات الشائعة، فتقدر تشغّله بسرعة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للتعلم أو التجربة أو إنهاء مشروعك.

تقدر تستعرض باقي الحساسات والموديولات عندنا لمشروعك القادم.
