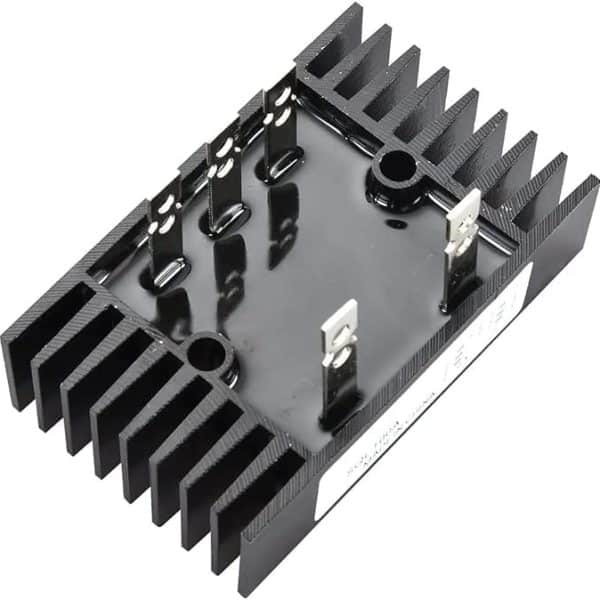

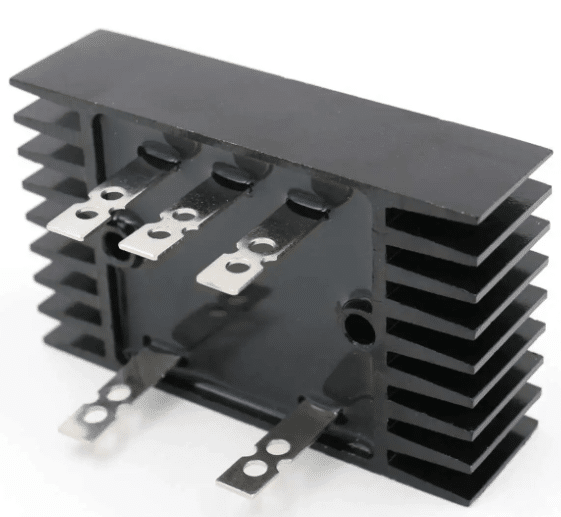

Three Phase Bridge Rectifier 1600V 150A
800,00 EGP
مقوّم جسر 150 أمبير 1600 فولت | Three-Phase 150A 1600V Bridge Rectifier — 150A 1600V bridge rectifier.
Three Phase Bridge Rectifier 1600V 150A
This is a 150A, 1600V three-phase bridge rectifier, a component that converts AC power into pulsating DC.
How It Works
Unlike a standard single-phase bridge rectifier that uses 4 diodes to convert one AC input into DC, a three-phase bridge rectifier uses 6 diodes arranged to rectify all three phases of a three-phase AC supply simultaneously, producing a DC output with much lower ripple than single-phase rectification — essential in industrial power supplies, motor drives, and welding equipment that run from three-phase mains.
Key Features
- Current Rating: 150A
- Voltage Rating: 1600V
- Type: Three-phase bridge (6-diode)
Typical Applications
- AC-to-DC power supply conversion
- Industrial three-phase motor drives and welding equipment
- Repair/replacement of failed rectifier components
Specifications
- Current: 150A
- Voltage: 1600V
Always mount higher-current bridge rectifiers on an adequate heatsink — internal diode losses generate real heat under load, and an undersized or missing heatsink is a common cause of premature failure. Browse our full range of bridge rectifiers.
Three Phase Bridge Rectifier 1600V 150A
ده مقوّم جسر 150 أمبير، 1600 فولت، ثلاثي الطور، مكون بيحول طاقة AC لـDC نابض.
إزاي شغال
عكس مقوّم جسر أحادي الطور قياسي بيستخدم 4 دايود عشان يحول دخل AC واحد لـDC، مقوّم جسر ثلاثي الطور بيستخدم 6 دايود مرتبة عشان تقوّم كل الأطوار الثلاثة لتغذية AC ثلاثية الطور في نفس الوقت، بينتج خرج DC بتموج أقل بكتير من التقويم أحادي الطور — أساسي في مزودات طاقة صناعية ومحركات موتور ومعدات لحام بتشتغل من تغذية رئيسية ثلاثية الطور.
المواصفات الأساسية
- تصنيف التيار: 150 أمبير
- تصنيف الجهد: 1600 فولت
- النوع: جسر ثلاثي الطور (6 دايود)
الاستخدامات
- تحويل طاقة AC-لـDC لمزود طاقة
- محركات موتور ثلاثية الطور صناعية ومعدات لحام
- صيانة/استبدال مكونات مقوّم تالفة
المواصفات الفنية
- التيار: 150 أمبير
- الجهد: 1600 فولت
ركّب دايمًا مقوّمات جسر عالية التيار على هيت سينك كافي — خسائر الدايود الداخلية بتولد حرارة حقيقية تحت حمل، وهيت سينك ناقص أو غير موجود سبب شائع لتلف مبكر. تصفح باقي مقوّمات الجسر المتوفرة عندنا.
منتجات مشابهة
YX-3600TREB Analog Multimeter (Fuse & Diode Protection, Continuity Buzzer)
متوفر

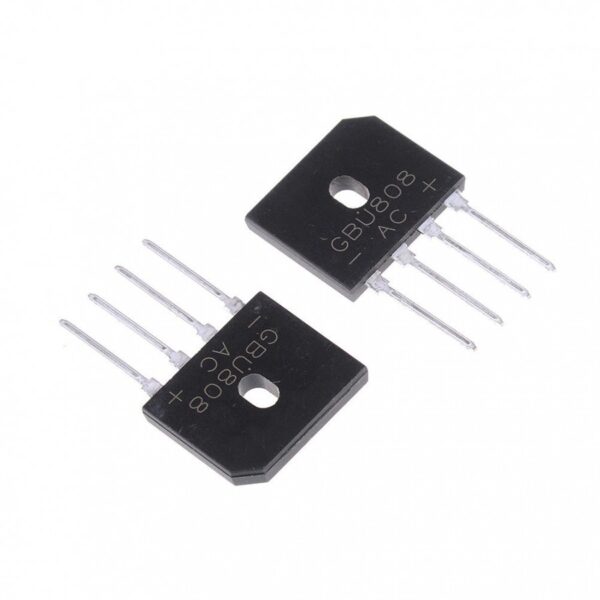

Bridge Rectifier 6A-800V GBU 608
