M.2 to SATA Adapter Converter Card – NGFF SATA3 2.5 Inch Key B for 2230-2280 M2 SSD

M.2 to SATA Adapter Converter Card – NGFF SATA3 2.5 Inch Key B for 2230-2280 M2 SSD

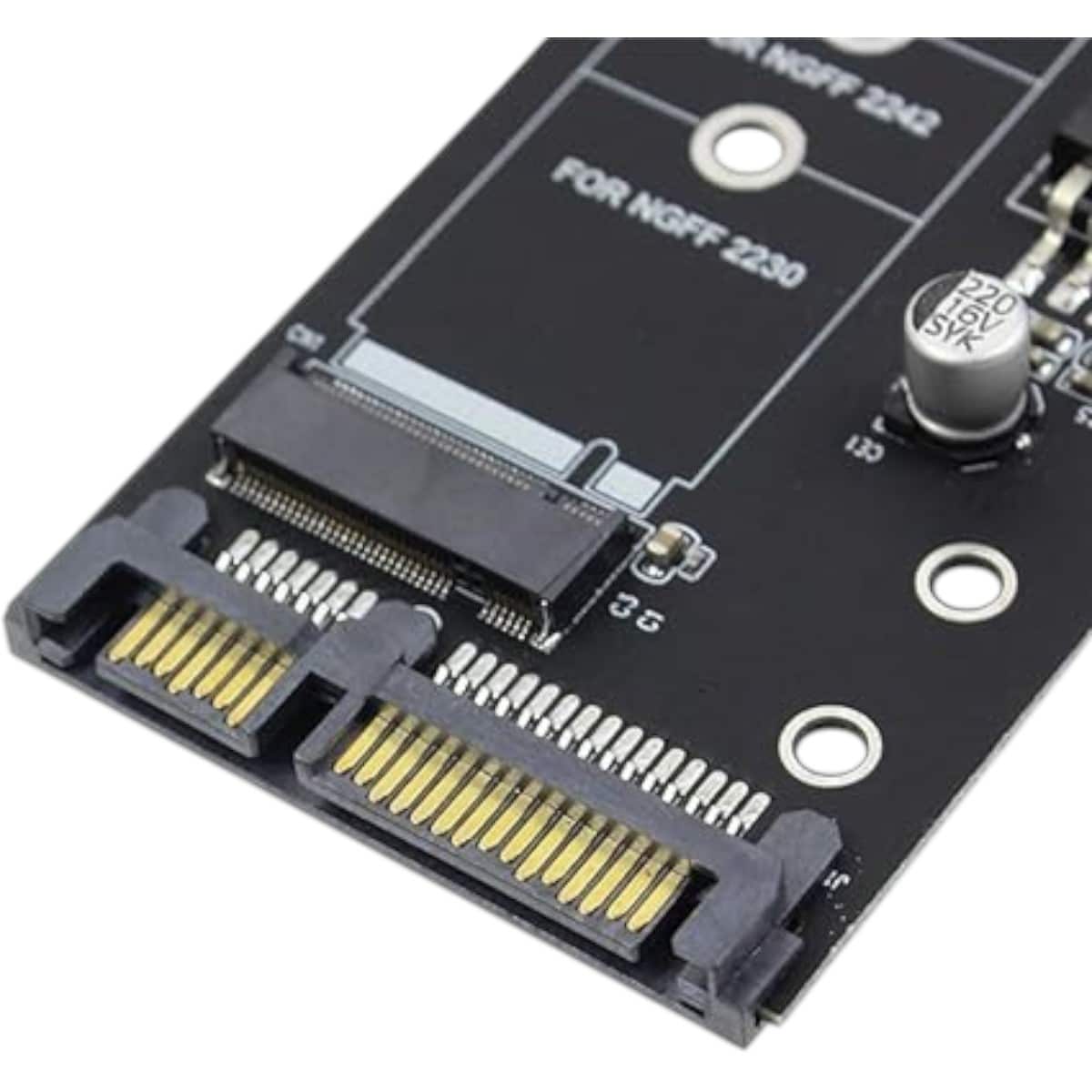

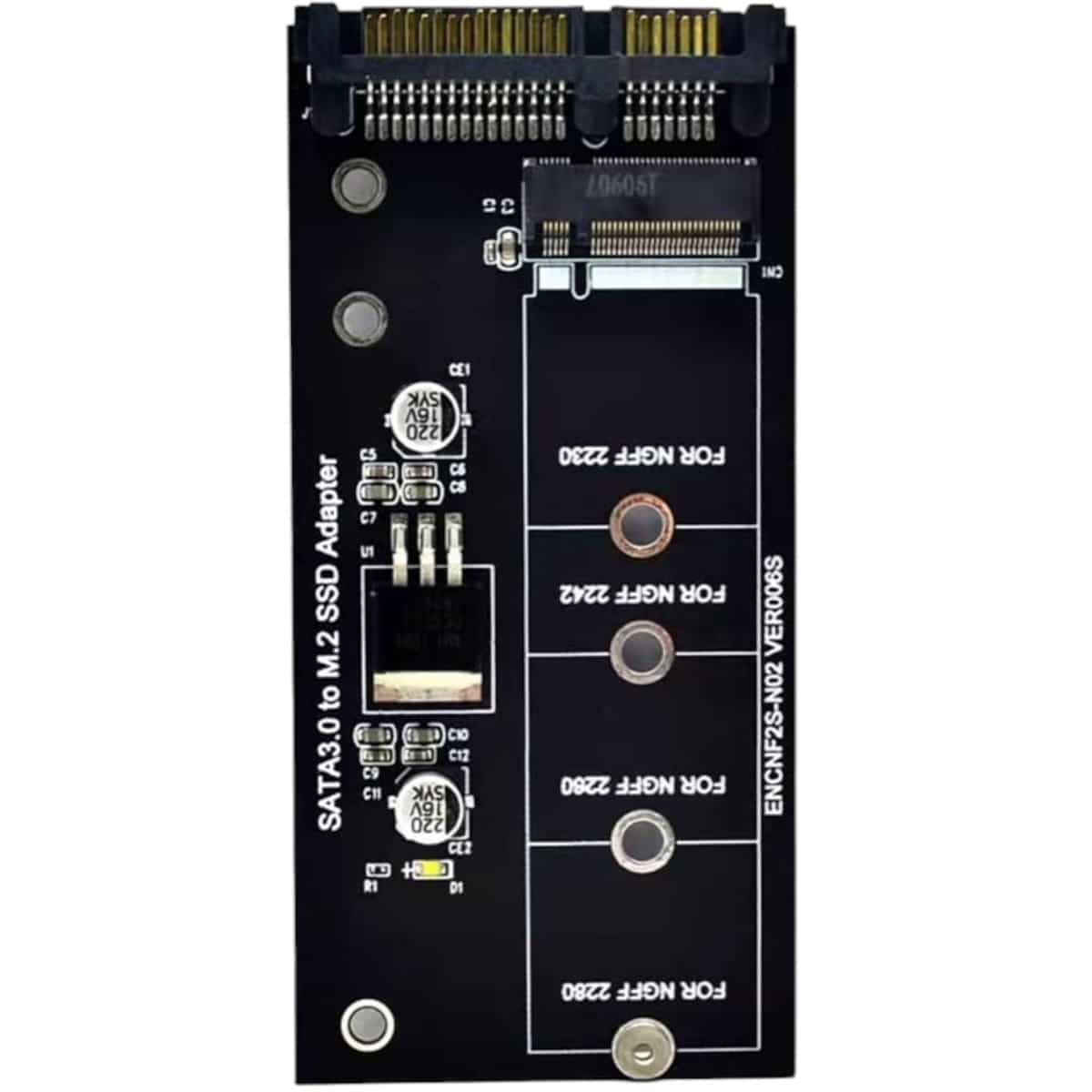

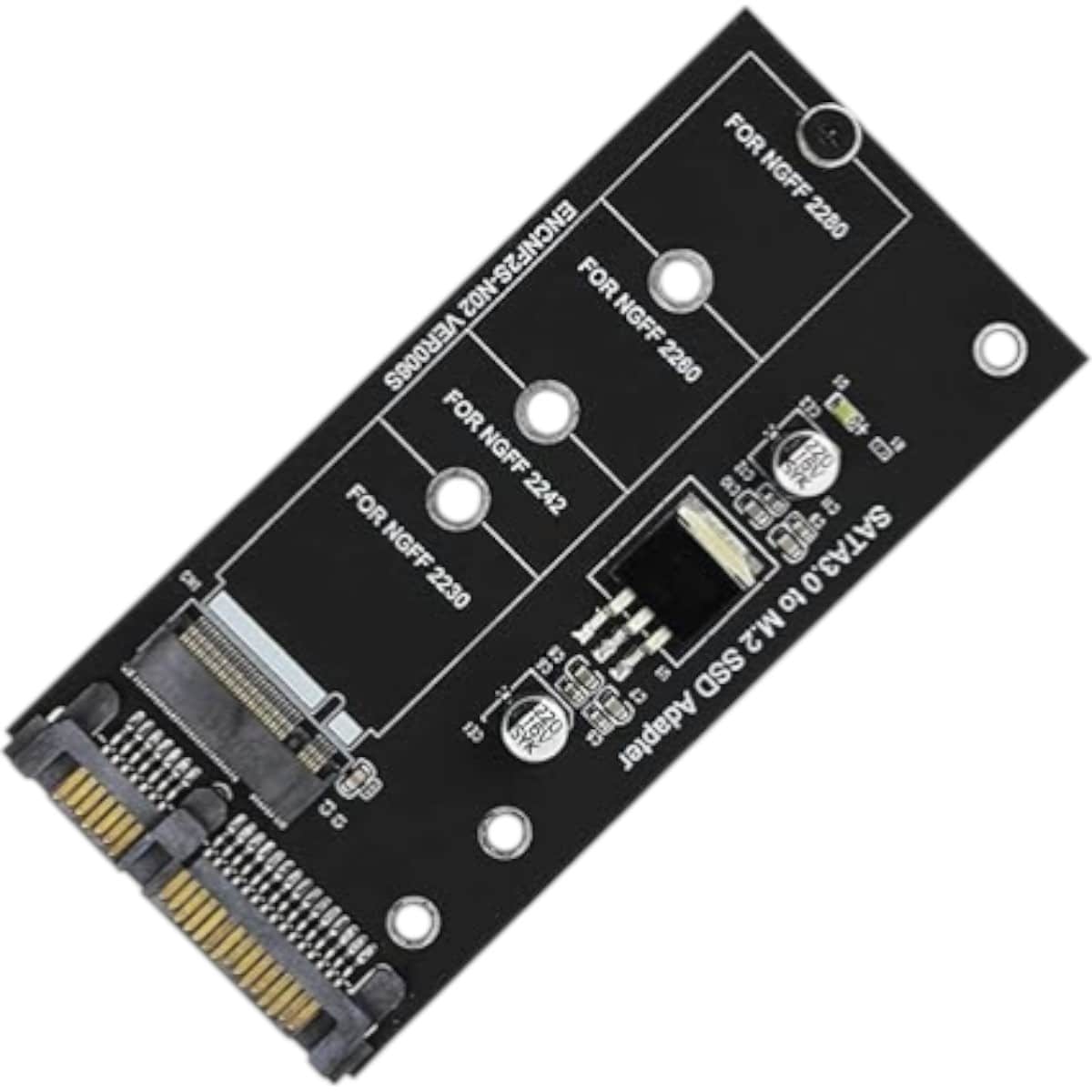

The M.2 to SATA Adapter is a practical and efficient hardware solution designed to convert an M.2 SSD into a standard 2.5-inch SATA drive interface. This adapter allows users to easily connect compatible M.2 solid-state drives to computers, laptops, servers, or external storage systems that support SATA connections. By using a , users can reuse existing M.2 SATA SSDs in different systems without needing specialized M.2 slots, making it an ideal choice for upgrading, repairing, or expanding storage.

Modern storage technology is evolving quickly, and many devices use M.2 SSDs due to their compact size and high performance. However, not all computers support M.2 slots.  bridges this compatibility gap, allowing an M.2 SATA SSD to function as a traditional SATA drive. This makes it extremely useful for technicians, system builders, data recovery professionals, and electronics enthusiasts who want flexible storage options.

The adapter typically supports multiple M.2 SSD sizes including 2230, 2242, 2260, and 2280 form factors. It converts the M.2 B-Key or B+M-Key SATA SSD interface to a standard SATA III 2.5-inch connector. Once installed, the SSD can be connected to any SATA port on a motherboard or external enclosure.

Key Features:M.2 to SATA Adapter Converter Card – NGFF SATA3 2.5 Inch Key B for 2230-2280 M2 SSD

• Converts M.2 SATA SSD to standard 2.5-inch SATA interface

• Supports SATA III transfer speeds up to 6Gbps

• Compatible with M.2 sizes: 2230 / 2242 / 2260 / 2280

• Supports B-Key and B+M-Key SATA SSD modules

• Easy installation with screw-mount design

• Plug and play functionality in most operating systems

• Durable PCB construction for stable performance

• Ideal for desktop computers, laptops, and external enclosures

Applications

• SSD data migration and backup

• Upgrading older computers without M.2 slots

• Data recovery and SSD testing

• DIY electronics and computer repair projects

• External storage enclosure conversions

Technical Specifications (Datasheet Information)

• Product Type: M.2 to SATA Adapter Converter

• Interface Input: M.2 NGFF (B-Key / B+M-Key)

• Interface Output: SATA III 7+15 Pin

• Supported Protocol: SATA Revision 3.0

• Maximum Data Transfer Rate: 6Gbps

• Supported SSD Lengths: 30mm / 42mm / 60mm / 80mm

• Supported Drive Type: M.2 SATA SSD (Not compatible with NVMe)

• Form Factor Output: 2.5-inch SATA drive format

• Material: High-quality PCB board

• Installation: Screw mounting with included standoff

• Operating Temperature: 0°C to 70°C

• Storage Temperature: -40°C to 85°C

Important Compatibility Note

This adapter supports . Users must ensure their SSD uses the SATA protocol before installing it into the adapter.

Overall, the provides a simple yet powerful way to expand storage compatibility, reuse existing SSDs, and build flexible storage solutions without replacing hardware. It is widely used by computer technicians, system integrators, and electronics engineers who require reliable SSD conversion solutions.
