IC 40110 SMD

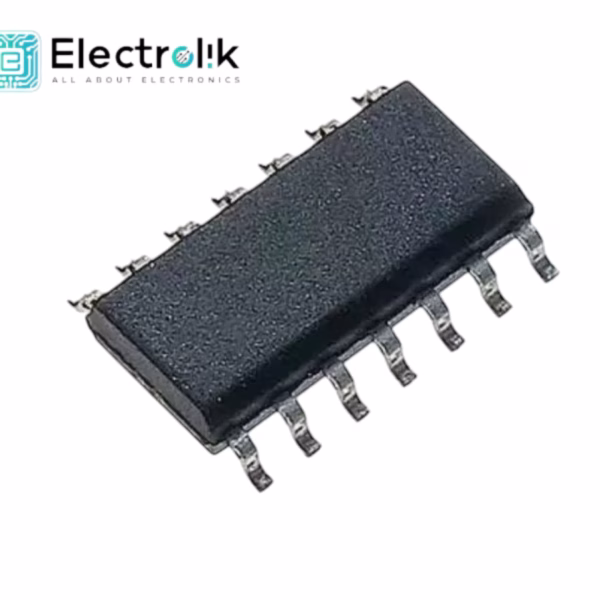

is an essential component for any engineer or hobbyist focused on digital counting and display applications. While often cited by its through-hole designation, the function remains the same: it’s a versatile CMOS integrated circuit combining a Decade Up/Down Counter, a Four-Bit Latch, a BCD-to-Seven Segment Decoder, and a high-current Seven-Segment Output Driver, all in a single compact package (SMD packaging such as SOIC or TSSOP). This all-in-one capability significantly simplifies the design of sophisticated counting and display systems, drastically reducing component count and board space, which is especially critical in space-constrained SMD designs. The IC 40110 SMD is a cornerstone of the CD4000 series, renowned for its wide operating voltage and robust noise immunity.

Key Features and Unique Functionality

The design of the IC 40110 SMD offers a powerful combination of logic functions specifically tailored for bi-directional counting applications where direct display output is required:

• Integrated Multi-Functionality: This chip consolidates four critical functions—counting, latching, decoding, and driving—into a single IC. This integration is a huge advantage, particularly for designs utilizing the compact surface-mount IC 40110 SMD package, as it eliminates the need for four separate ICs and the associated complex routing.
• Dual-Clocked Bi-Directional Counting: It features separate clock-up and clock-down inputs, allowing the decade counter to increment or decrement the count independently, regardless of the timing of the other clock line. This dual-clocking mechanism simplifies the control logic for applications with random-occurring up and down pulses, such as flow metering or bi-directional object counting.
• High-Current Output Driver: The integrated seven-segment bipolar output driver is a standout feature. It can directly source up to 25 mA per segment, enabling it to drive common-cathode LED displays, low-voltage fluorescent lamps, and incandescent lamps without the need for external driver transistors. This direct drive capability further reduces overall system complexity and cost.
• Built-in Latch and Decoding: The four-bit latch allows the current count to be held and displayed while the counter continues to operate in the background. The BCD-to-Seven Segment Decoder ensures the counter output is correctly translated for display on a standard seven-segment unit.
• Easy Cascading: The IC includes specialized CARRY and BORROW outputs that produce a short negative-going pulse when the count transitions from 9 to 0 (CARRY) or 0 to 9 (BORROW). These pulses can be directly connected to the clock-up and clock-down inputs of a succeeding IC 40110 SMD, enabling straightforward cascading for multi-digit counter displays without any external gating circuitry.

Applications and Performance

This robust CMOS device is designed to operate reliably across a wide range of environments and power specifications:

• Versatile Applications: The IC 40110 SMD is ideally suited for rate comparators, digital stopwatches, frequency counters, batch counters, and any general counting application requiring an immediate, visible display of the count status. Its small SMD footprint makes it an excellent choice for modern, miniaturized PCBs.
• Wide Operating Voltage Range: As a member of the CD4000B series, it offers an exceptionally wide supply voltage range from 3V to 18V, providing flexibility and compatibility with various power rail standards. This makes the IC 40110 SMD particularly resilient in diverse industrial and consumer electronic environments.
• Robust Noise Immunity: CMOS technology ensures high noise immunity, a crucial performance parameter in electrically noisy systems. The high input impedance and balanced propagation delays contribute to reliable operation.

Datasheet Summary (Typical CD40110B Characteristics)
