FSB7510A Bridge

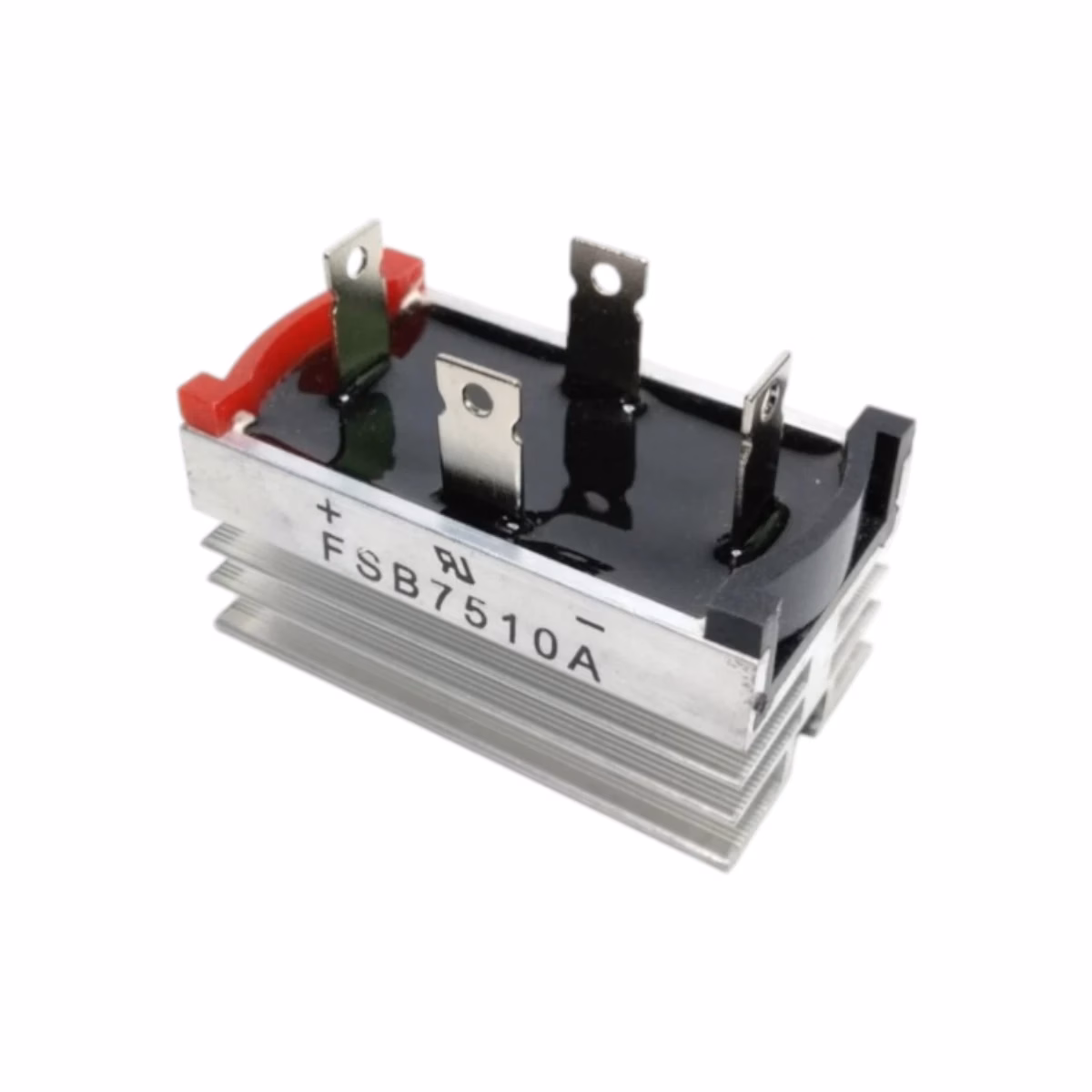

High-Performance FSB7510A Bridge Rectifier

The FSB7510A Bridge Rectifier stands as a cornerstone for high-power rectification in modern electrical systems. This robust component is specifically engineered to convert alternating current (AC) into a steady direct current (DC) output. With a massive 75A capacity, it handles heavy electrical loads with ease. Moreover, its 1000V peak repetitive reverse voltage rating provides an essential safety buffer for industrial environments.

Advanced Thermal and Electrical Stability

When your project demands reliability, the FSB7510A Bridge Rectifier delivers through its superior design. It features a high-grade metal casing that acts as an efficient thermal conductor. Consequently, heat dissipates rapidly when the unit is properly mounted to a heatsink. Furthermore, the internal diodes use glass-passivated technology. This construction specifically protects the junctions against moisture and contaminants, ensuring a long operational lifespan. Additionally, the low forward voltage drop minimizes power loss during high-speed switching operations.

Versatile Industrial Applications

Specifically, the FSB7510A Bridge Rectifier is the ideal choice for demanding applications such as high-current motor controllers and large-scale battery charging stations. Furthermore, it excels in DC power supplies for telecommunications and welding equipment. Additionally, its standardized bolt-on hole allows for secure mechanical installation. Consequently, engineers prefer this model for its ability to maintain consistent performance under fluctuating electrical stress. Moreover, the isolated case design allows for multiple units to be mounted on a single heatsink without electrical interference.

Installation and Safety Standards

Integrating the FSB7510A Bridge Rectifier into your circuit is straightforward due to its clearly marked terminals. Specifically, the heavy-duty lugs support secure wiring for high-amperage cables. Furthermore, it meets international safety standards for industrial semiconductor devices. Additionally, we recommend using high-quality thermal paste during installation to maximize heat transfer. Consequently, this ensures that the rectifier operates within its optimal temperature range, even during peak load conditions.

Verified Data Sheet

• Feature: Technical Specification
• Model Number: FSB7510A
• Max Average Forward Current ($I_{F}$): 75A
• Peak Repetitive Reverse Voltage ($V_{RRM}$): 1000V
• Non-Repetitive Peak Surge Current ($I_{FSM}$): 500A (8.3ms half-sine)
• Forward Voltage Drop ($V_{F}$): 1.1V per Diode
• Operating Junction Temperature: -55°C to +150°C
• Package Material: Electrically Isolated Metal Case
• Mounting Type: Through-hole for Bolt Mounting

Handling & Safety

Always confirm the rating, polarity and pinout of a bridge rectifier before installing it, and avoid exceeding its rated voltage or current. Use proper ESD precautions with sensitive parts. These steps protect your circuit and keep your work safe.

Why Choose This Bridge Rectifier

First, it is a widely used part in electronics repair, prototyping and assembly, so it fits into most existing projects easily. Second, the value, rating or pin count is clearly stated, so you can match it to your circuit with confidence. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for repair, prototyping or a finished project.

Usage Tips

Before soldering or installing, match the value, package and pin layout with your circuit diagram. Therefore, you avoid a wrong fit or a damaged board. Also, keep small parts stored in labeled bags so values do not get mixed up during a project. As a result, your build stays organized and easier to troubleshoot.

Good to Know

A well-matched bridge rectifier saves time on the job later. Therefore, double-check the value, rating and pin layout against your circuit before relying on it in a final build. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. As a result, your project stays reliable with fewer surprises.

FSB7510A Bridge

FSB7510A Bridge قنطرة توحيد مخصص لـ تحويل التيار المتردد AC إلى تيار مستمر DC داخل دائرة تغذية أو شحن.

الاستخدامات

• دوائر مزودات الطاقة والشواحن
• إصلاح وإعادة بناء الشواحن
• مشاريع مزودات طاقة DIY
• مخزون صيانة الورشة

ملاحظات الأمان

تأكد دايمًا من القيمة والقطبية وترتيب الأرجل بتاعة قنطرة توحيد قبل التركيب، وماتتخطاش الجهد أو التيار المسموح بيه. استخدم احتياطات الشحنة الساكنة (ESD) مع القطع الحساسة. الخطوات دي بتحمي دائرتك وتخلي شغلك آمن.

ليه تختار قنطرة توحيد ده

أولاً، قطعة مستخدمة بشكل واسع في إصلاح وتجميع الدوائر الإلكترونية، فتتناسب مع معظم المشاريع بسهولة. ثانيًا، القيمة أو التصنيف أو عدد الأرجل موضحة بدقة، فتقدر تطابقها مع دائرتك بثقة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للإصلاح أو التجربة أو مشروع متكامل.

تقدر تستعرض باقي المكونات الإلكترونية عندنا لمشروعك القادم.
