ALCAD AI-400 4-Output TV Signal Amplifier

ALCAD AI-400 4-Output TV Signal Amplifier

The ALCAD AI-400 TV Signal Amplifier boosts an antenna signal and splits it to four outputs. It is code 9040063 and it runs from 230V mains power. As a result, one antenna can feed several TVs in the same building.

ALCAD AI-400 TV Signal Amplifier Controls

First, the panel has four F connectors marked OUT1 to OUT4. Second, a VHF/FM/DAB control is marked from 88 to 108. Third, a UHF control is marked from 14dB to 25dB. Because these controls are separate, you can tune each band on its own. In addition, a green LED shows when the unit has power. The unit ships with a mains cable and a two-pin plug, as the photo shows.

Key Features

• Four outputs, OUT1 to OUT4
• Separate VHF/FM/DAB and UHF controls
• UHF range marked 14dB to 25dB
• Green power LED
• Ventilated white housing with CE mark

Typical Uses

• Feeding several TVs from one antenna
• Apartment and small building antenna systems
• Shops and offices with multiple screens
• Boosting a weak antenna signal

Specifications

• Brand: ALCAD
• Model: AI-400, code 9040063
• Supply: 230V~ ±10%, 50/60Hz
• Outputs: 4 F connectors
• Controls: VHF/FM/DAB 88-108, UHF 14-25dB

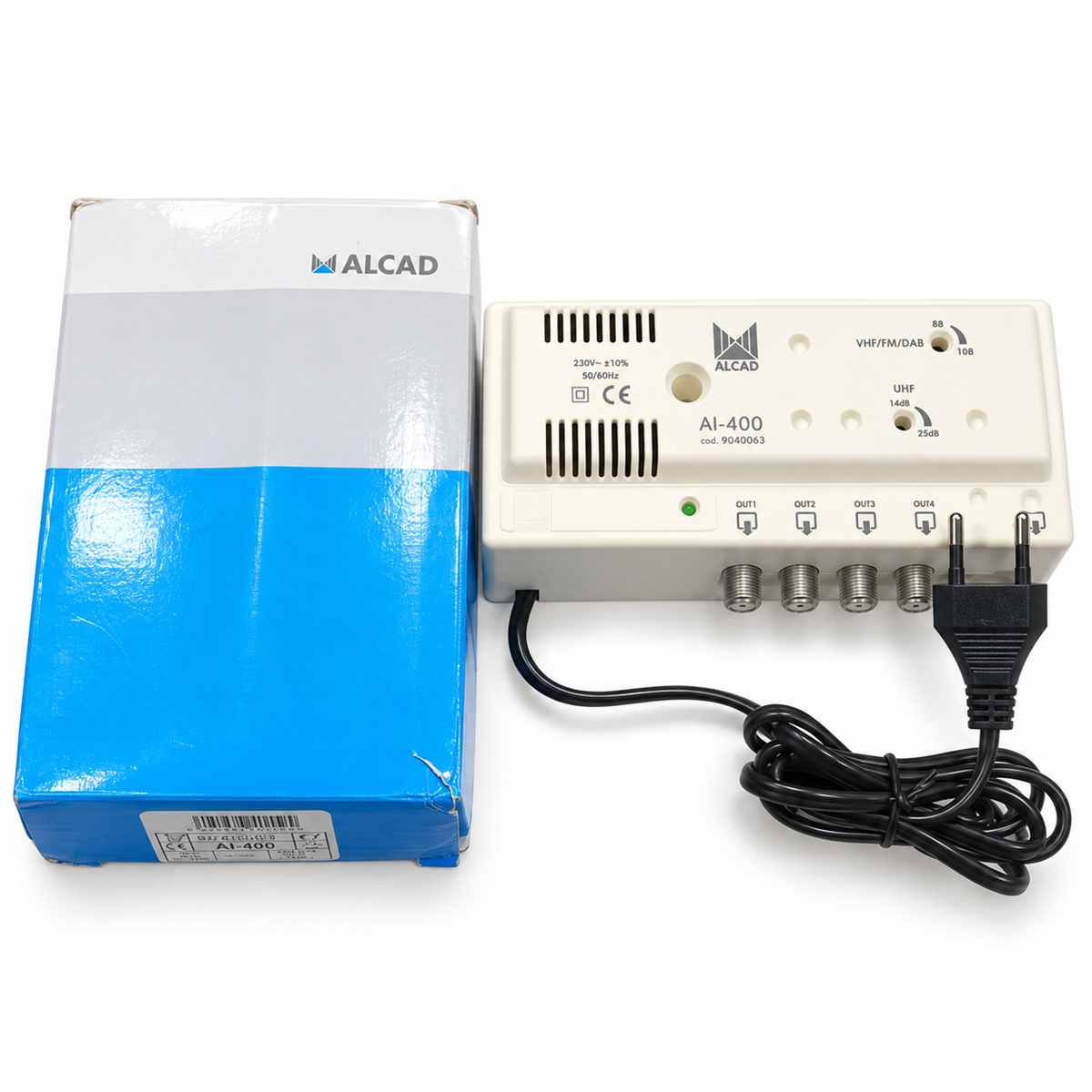

The photo shows the unit next to its box. Therefore, the box may show wear, and the unit is as pictured. Also, connect it with proper coaxial cable and F connectors.

Ordering ALCAD AI-400 4-Output TV Signal Amplifier from Electrolik

Electrolik ships orders across Egypt, and you can pay cash on delivery. First, compare the photo with your need, because the picture shows exactly what we sell. Second, read the specifications above and match them with your project or space. If you are unsure about the ALCAD AI-400 4-Output TV Signal Amplifier, contact our team before you order. As a result, you avoid a wrong purchase and save time. In addition, we check each item and its packaging before it leaves the shop. Therefore, you receive the product as pictured, and you can return to us with any question after delivery.

Looking for more options? Browse our full range of TV accessories at Electrolik.

ALCAD AI-400 4-Output TV Signal Amplifier

الـ ALCAD AI-400 TV Signal Amplifier بيقوي إشارة الهوائي ويوزعها على أربع مخارج. الكود 9040063 وبيشتغل على كهربا 230 فولت. وبالتالي هوائي واحد يقدر يغذي كذا تلفزيون في نفس المبنى.

المميزات

• أربع مخارج OUT1 لحد OUT4
• تحكم منفصل لـ VHF/FM/DAB و UHF
• مدى UHF من 14dB لحد 25dB
• لمبة LED خضرا للتشغيل

الاستخدامات

• تغذية كذا تلفزيون من هوائي واحد
• شقق ومبانٍ صغيرة
• محلات ومكاتب فيها شاشات
• تقوية إشارة هوائي ضعيفة

الصورة بتوضح الجهاز جنب علبته، والعلبة ممكن تكون عليها آثار استخدام. وركّبه بكابل كواكس ووصلات F مناسبة.

محتاج اختيارات تانية؟ تصفح باقي TV accessories عندنا في Electrolik.
