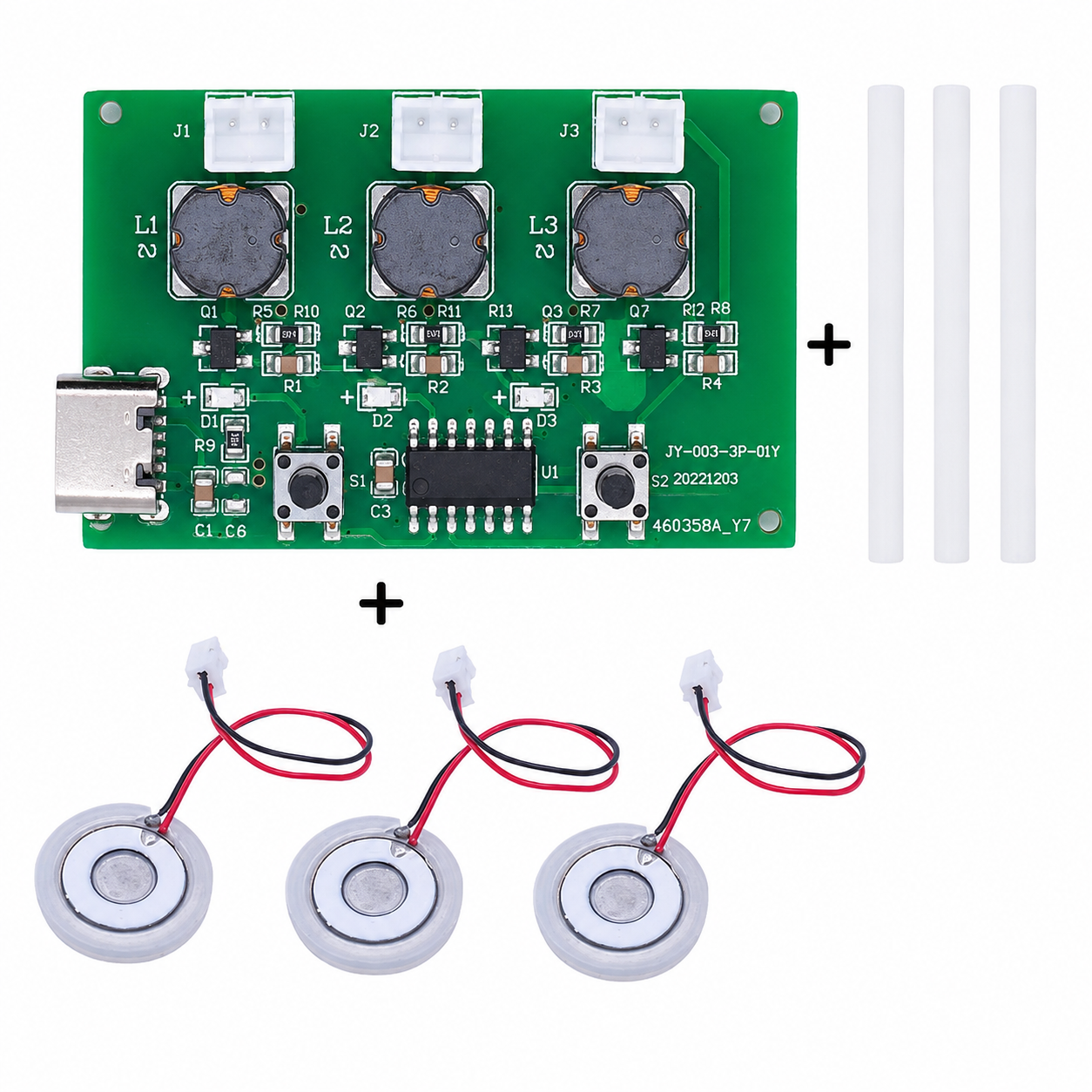

3X Spray Humidifier Driver Circuit Board دائرة فواحة وتبخير 3 حساسات رذاذ بالموجات فوق الصوتية

Features: Made of high-quality materials, compact in size, and easy to install. Convenient application, multiple spray modes: four sprays, dynamic spray, single spray, and multiple spray. Microporous physicochemical tablets: fine mist particles, large mist, high mist, wide coverage, and nonwetting tabletop. Efficient and stable performance, dynamic spray, diversified spray, and long service life. Wide application range: DIY self-made, plant moisturizing, and product application. Parameters: Rated voltage: DC 5V Atomization frequency: 108KHZ ± 2KHZ Rated current: 300mA Power: 2.5-3W Power mode: USB PCB size: 50 x 30 x 1.2mm Spray mode Continuous four spray mode press S1 switch for the first time Four nozzles are in continuous spray mode, and four LED lights are always on Automatic shutdown protection after 2 hours of spray Continuous four spray mode Press S1 switch for the second shutdown Dynamic spray mode (press S1 to start up first) Press S2 switch for the first time Press the first time, dynamic spray, spray for 3 seconds at No. 1 mouth, and the light should be on; Spray for 3 seconds from the second second at the entrance 2, and the light should be on accordingly; Spray for 3 seconds from the 3rd second at the 3rd entrance, and the light should be on accordingly; Spray for 3 seconds from the 4th second at Entrance 4, and the light is on accordingly; In the 5th second, spray at No.1 mouth for 3 seconds, and cycle in turn. Indirect spray mode Press S2 switch to turn on No. 1 spray for the second time, and the light will be on; Press the S2 switch for the third time 1 # and 2 # spray, the light should be on; Press the S2 switch for the fourth time 1 #, 2 #, 3 # spray, the light should be on; Press S2 switch on for the fifth time 1 #, 2 #, 3 #, 4 # spray, light corresponding light on, press S2 switch for the sixth time Return to S2 start function, The above functions automatically shut down within 2 hours

Handling & Safety

Always power the driver circuit board within its rated voltage range and double-check pin connections before powering up. Avoid touching the circuit while it is live, and keep it away from moisture and static discharge during handling. These steps protect the part from damage.

Why Choose This Driver Circuit Board

First, it is a widely used part in the maker community, so documentation, libraries and example wiring diagrams are easy to find. Second, it works with common microcontroller platforms, so you can get it running quickly. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for learning, prototyping or finishing a project.

Wiring Tips

Before final assembly, test the part on a breadboard if you are unsure of the wiring. Therefore, you avoid damaging your main circuit during first power-up. Also, keep connections short and secure to reduce noise and reading errors. In addition, label each wire during assembly so future troubleshooting is easier. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched driver circuit board saves time on debugging later. Therefore, double-check the pin layout and voltage requirements against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.

3X Spray Humidifier Driver Circuit Board دائرة فواحة وتبخير 3 حساسات رذاذ بالموجات فوق الصوتية

3X Spray Humidifier Driver Circuit Board دائرة فواحة وتبخير 3 حساسات رذاذ بالموجات فوق الصوتية بورد تحكم مخصص لـ تشغيل موديول الرذاذ فوق الصوتي/المرطب.

الاستخدامات

• بناء مرطبات ورذاذات ذاتية
• مشاريع أجهزة العطور
• مشاريع رطوبة الصوبات
• مشاريع تأثيرات الضباب

ملاحظات الأمان

شغّل بورد تحكم دايمًا في حدود الجهد المقنن ليه، وراجع توصيلات الأطراف قبل التشغيل. تجنب لمس الدائرة وهي شغالة، وخليها بعيدة عن الرطوبة والشحنات الساكنة أثناء التعامل معاها. هذه الخطوات بتحمي القطعة من التلف.

ليه تختار بورد تحكم ده

أولاً، قطعة مستخدمة بشكل واسع في مجتمع الصناع، فتلاقي شروحات ومكتبات وأمثلة توصيل بسهولة. ثانيًا، بيشتغل مع منصات المتحكمات الشائعة، فتقدر تشغّله بسرعة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للتعلم أو التجربة أو إنهاء مشروعك.

تقدر تستعرض باقي الحساسات والموديولات عندنا لمشروعك القادم.
