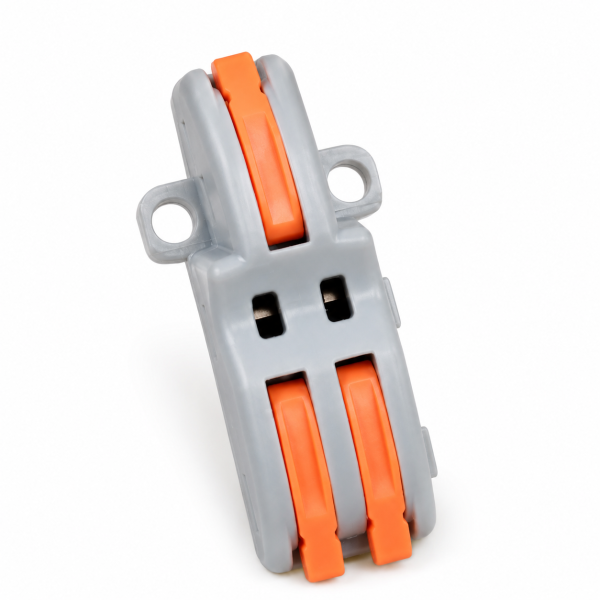

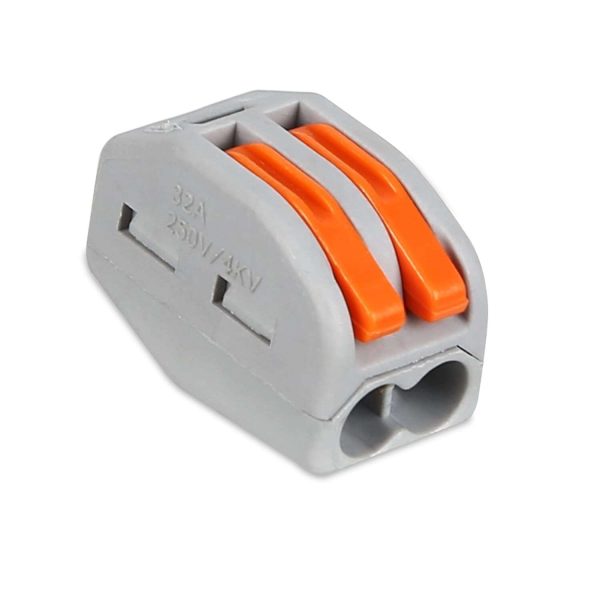

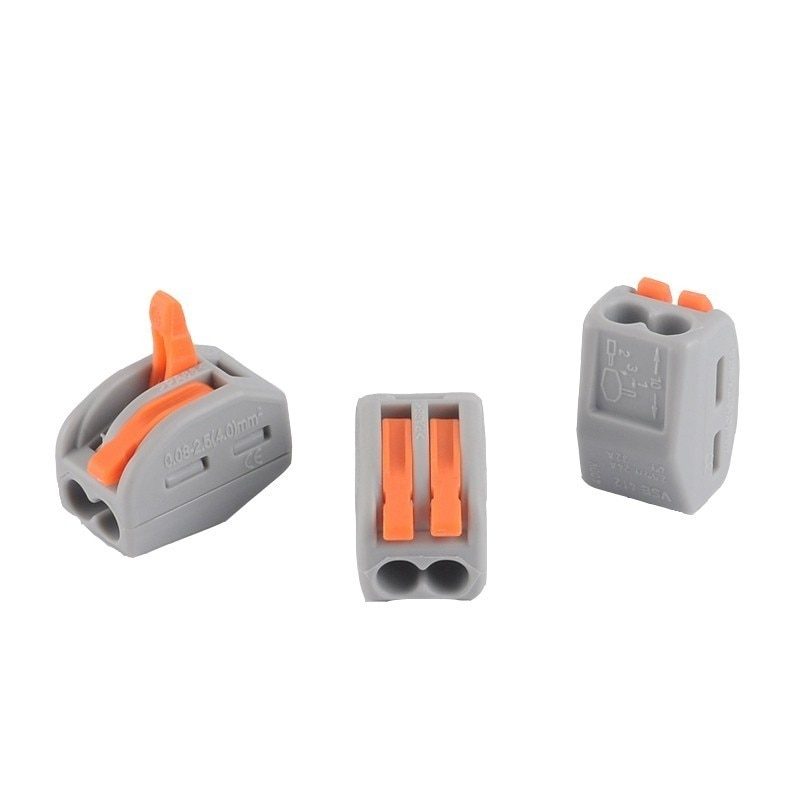

WAGO 2 Pin – PCT-212 Universal Compact Wire Wiring Connector

The WAGO PCT-212 Parallel Wire Connector 2 Pin is a compact 2-pin terminal block designed for safe and efficient cable connections. Rated at 32A and 250V, it is ideal for household and industrial electrical wiring applications. This push-in type connector supports quick, tool-free installation of solid or stranded wires, ensuring a reliable and secure electrical connection. With a transparent housing and lever-actuated design, the PCT-212 allows for easy inspection and reusability, making it a practical solution for both permanent and temporary wiring tasks. Features 2-Pin Configuration Supports multiple wire connections in a single terminal block, streamlining your wiring process. High Current Capacity Rated for up to 32A, suitable for a wide range of electrical applications. Wide Voltage Rating Operates at voltages up to 250V, accommodating various electrical systems. Versatile Wire Compatibility Compatible with solid, stranded, and flexible wires ranging from 0.08 mm² to 2.5 mm². User-Friendly Design Features a lever mechanism for easy and secure wire insertion without the need for tools. Durable Construction Made from high-quality materials to ensure longevity and reliable performance. Specifications Brand: WAGO Model: PCT-212 Connector Type: Wire Connector Connection Type: Parallel Connection Number of Pins: 2 pin Orientation: Straight Mounting Type: Free-standing Connection Type: Push-in with lever operation Reusable: Yes Rated Voltage: 250VAC Rated Current: 32A Rated Power: 4 KW Wire Size Compatibility: Solid wire: 0.08 mm² to 2.5 mm² Stranded wire: 0.08 mm² to 2.5 mm² Strip length: 9 mm to 10 mm Wire Type: Solid, stranded, and flexible conductors Housing Material: Flame-retardant polycarbonate (PC) Contact Material: Copper alloy with tin plating Operating Temperature: -40°C to +85°C Reusable: Yes, with easy rewire functionality Dimensions(L X W X H): 21mm X 12.5mm X 14.5mm Applications Ideal for residential and commercial electrical wiring. Used in lighting installations and ceiling fan connections. Suitable for junction box wiring and distribution boxes. Common in control panels and terminal connections. Handy for DIY electrical repairs and upgrades. Used in home automation and smart device wiring. Effective for secure connections in industrial equipment. Compatible with solid, stranded, and flexible wires.

Handling & Safety

Always confirm the rating, polarity and pinout of a wire connector before installing it, and avoid exceeding its rated voltage or current. Use proper ESD precautions with sensitive parts. These steps protect your circuit and keep your work safe.

Why Choose This Wire Connector

First, it is a widely used part in electronics repair, prototyping and assembly, so it fits into most existing projects easily. Second, the value, rating or pin count is clearly stated, so you can match it to your circuit with confidence. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for repair, prototyping or a finished project.

Usage Tips

Before soldering or installing, match the value, package and pin layout with your circuit diagram. Therefore, you avoid a wrong fit or a damaged board. Also, keep small parts stored in labeled bags so values do not get mixed up during a project. As a result, your build stays organized and easier to troubleshoot.

Good to Know

A well-matched wire connector saves time on the job later. Therefore, double-check the value, rating and pin layout against your circuit before relying on it in a final build. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. As a result, your project stays reliable with fewer surprises.

WAGO 2 Pin – PCT-212 Universal Compact Wire Wiring Connector

WAGO 2 Pin – PCT-212 Universal Compact Wire Wiring Connector وصلة أسلاك مخصص لـ ربط الأسلاك ببعض بسرعة من غير لحام أو براغي.

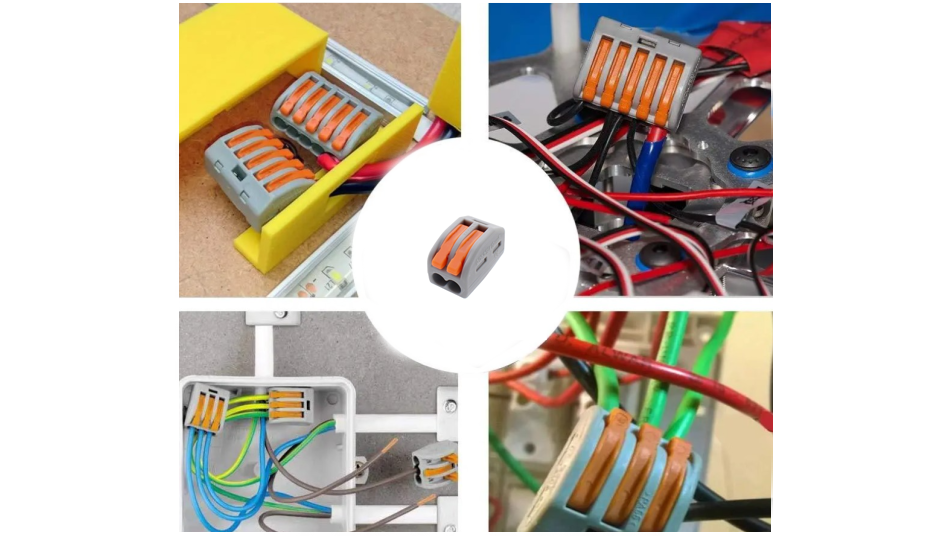

الاستخدامات

• توصيل الأسلاك بسرعة
• توصيلات اللوحات والصناديق
• التوصيلات الكهربائية المنزلية
• استبدال وصلة أسلاك تالفة

ملاحظات الأمان

تأكد دايمًا من القيمة والقطبية وترتيب الأرجل بتاعة وصلة أسلاك قبل التركيب، وماتتخطاش الجهد أو التيار المسموح بيه. استخدم احتياطات الشحنة الساكنة (ESD) مع القطع الحساسة. الخطوات دي بتحمي دائرتك وتخلي شغلك آمن.

ليه تختار وصلة أسلاك ده

أولاً، قطعة مستخدمة بشكل واسع في إصلاح وتجميع الدوائر الإلكترونية، فتتناسب مع معظم المشاريع بسهولة. ثانيًا، القيمة أو التصنيف أو عدد الأرجل موضحة بدقة، فتقدر تطابقها مع دائرتك بثقة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للإصلاح أو التجربة أو مشروع متكامل.

تقدر تستعرض باقي المكونات الإلكترونية عندنا لمشروعك القادم.
