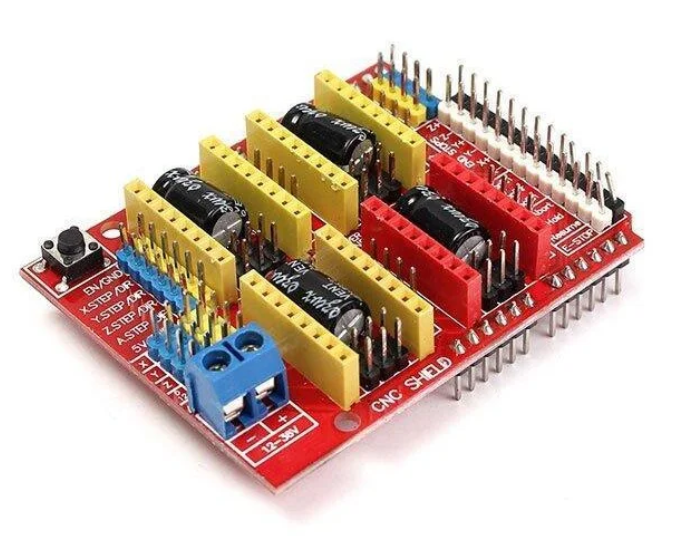

Arduino Uno CNC Shield

📝 Product Description

Power your custom manufacturing projects with the highly versatile Arduino Uno CNC Shield. This expansion board drives your stepper motors flawlessly. You can build precision milling machines with total ease. Furthermore, it organizes your complex wiring into a simple plug-and-play package. Consequently, your desktop routers will operate highly efficiently. The board supports the highly popular GRBL open-source firmware perfectly. You will appreciate the absolute convenience it brings to DIY prototyping.

4-Axis Stepper Motor Control

The shield accommodates a standard Arduino Uno directly underneath. Specifically, it eliminates the need for messy breadboards completely. You save valuable space within your custom electronics enclosure this way. Additionally, the board controls up to four independent stepper motors simultaneously. It routes critical signals to the X, Y, Z, and A axes accurately. Moreover, this modular setup utilizes standard A4988 or DRV8825 driver modules. You plug these tiny drivers straight into the designated headers. Furthermore, the built-in micro-stepping jumper pins allow precise resolution adjustments. It ensures smooth mechanical movements without harsh vibrations. Consequently, you produce highly accurate cuts and engravings every single time.

Complete I/O Functionality

You get dedicated input pins for mechanical limit switches. Furthermore, these connections ensure absolute safety during rapid machine homing. Your moving parts stop instantly before hitting the physical frame boundaries. Endstops prevent expensive hardware damage during your machining operations. Consequently, your delicate CNC equipment remains completely protected. The board also provides specific outputs for spindle or laser control. Additionally, you can manage auxiliary coolant systems effortlessly. This extensive connectivity transforms your basic microcontroller into a capable industrial brain. Moreover, it guarantees a highly adaptable platform for various robotic applications.

Seamless GRBL Integration

You can run standard G-code files effortlessly on this capable controller. The GRBL firmware translates your digital designs into exact physical movements. Specifically, it synchronizes the stepper motors for complex 3D toolpaths accurately. You must connect a robust 12V to 36V DC power supply to the terminals. Moreover, the board distributes this power directly to the hungry motor drivers. It isolates the sensitive logic circuits from heavy electrical loads safely. Furthermore, you complete the entire electronic assembly in just a few minutes. This streamlined setup reduces your project troubleshooting time significantly. Additionally, the durable PCB withstands constant vibrations during heavy manufacturing cycles.
